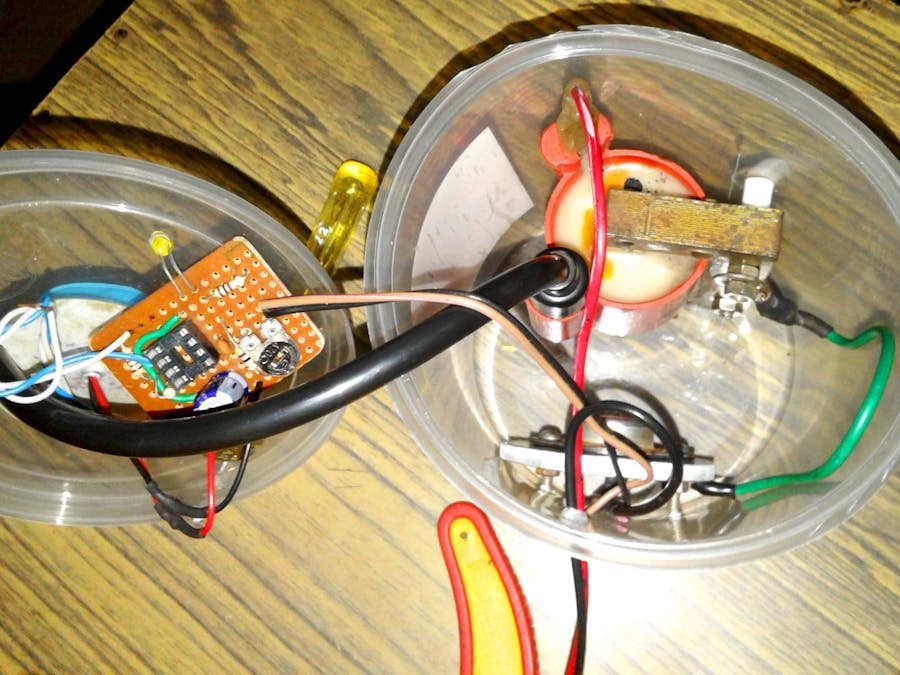

Here I made a power supply which makes 10-15 KV. I made it for making plasma bulb and do some high voltage experiments. Here the high voltage is generated from a 12V DC supply. For increasing the voltage to a very high range we need step-up transformers. So here I use vehicle ignition coil as transformer. It is capable of producing such a high voltage. Next I made a driver circuit for the ignition coil because it need an AC voltage for its operation. So I created an oscillator by using 555 and boost its output by using a power transistor 2N3055.
By this way I generate the high voltage power supply. For more details about circuit please, visit my blog. Link is provided below: https://0creativeengineering0.blogspot.com/2019/01/high-voltage-power-supply.html
