Are you new to soldering and want to learn basics with a simple kit ?

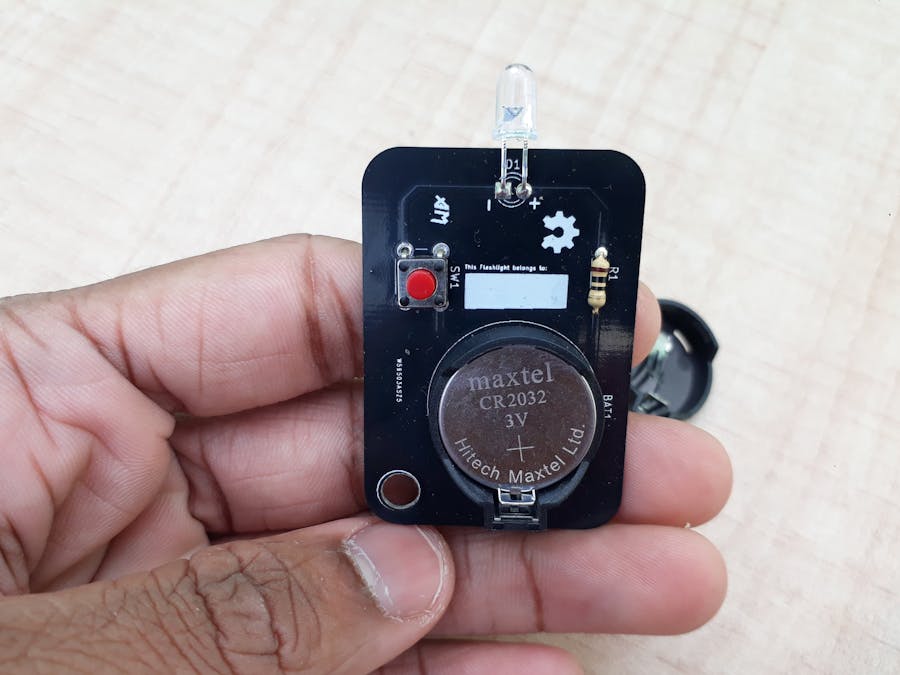

If you are looking for an easy way to learn soldering or just want to make a small portable gadget, This LED Flash light badge is a great choice. This LED Flash Light Badge PCB is designed to learn the soldering.
Hardware Components:
Schematics :
The board outline were made using Autodesk Fusion 360.And PCB design was done using KiCad.
1 / 2
I got it manufactured by PCBWAY.
All the Project files are up on GitHub, go make!
