Automatic Ventilation with Flame Detector

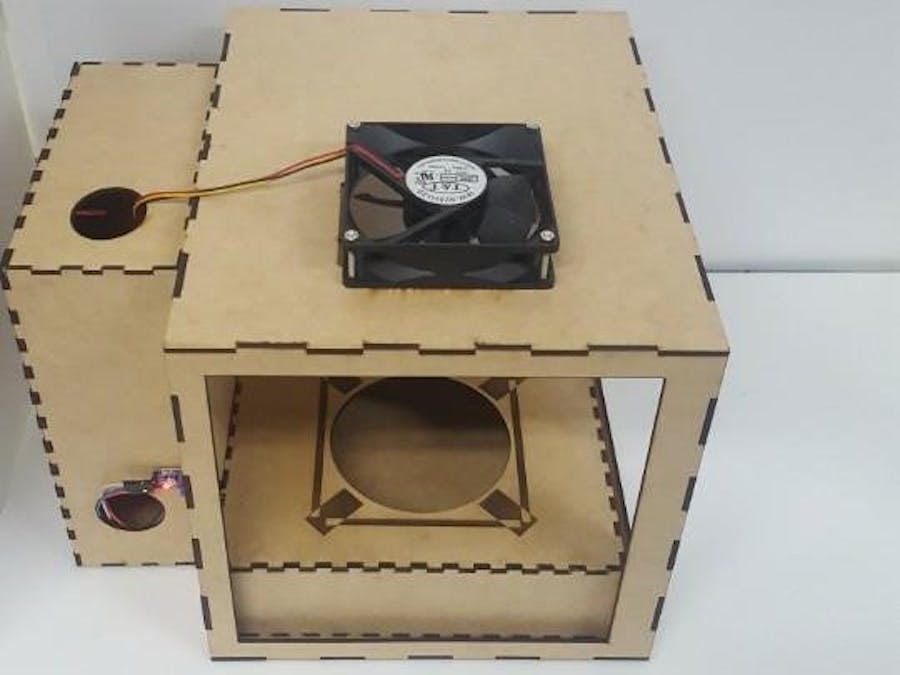

A Bongilcheon High School FabLab Academy final project: this is a project that allows the ventilation shaft to be activated automatically.

IntermediateShowcase (no instructions)16 hours1,561
Automatic Ventilation with Flame Detector

Things used in this project

Hardware components

Arduino Nano R3
Arduino Nano R3
×1
flame detector
×1
motor driver
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Laser cutter (generic)
Laser cutter (generic)

Story

Read more

Schematics

fritizing file





Code

Untitled file

Arduino
#define AIA 9

#define AIB 10

int flame_sensor_pin = 2 ;// initializing pin 7 as the sensor output pin

int flame_pin = HIGH ; // state of sensor

int MTspeed = 50;


void setup ( )  {



  pinMode(AIA, OUTPUT);

  pinMode(AIB, OUTPUT);

  pinMode ( flame_sensor_pin , INPUT ); // declaring sensor pin as input pin for Arduino

  Serial.begin ( 9600 );// setting baud rate at 9600

}



void loop ( ) {

   flame_pin = digitalRead ( flame_sensor_pin ) ;  // reading from the sensor

  if (flame_pin == LOW )  // applying condition

  {

    Serial.println ( " FLAME , FLAME , FLAME " ) ;

    moving();

  }



  else

  {

    Serial.println ( " no flame " ) ;

    stop_moving();

  }



}

void moving() {

  digitalWrite(AIB,HIGH);

  analogWrite(AIA,MTspeed);

}

void stop_moving() {

  analogWrite(AIB,LOW);

  analogWrite(AIA,LOW);



}
