MyPet - Maker Board

You'll learn how to develop the MyPet. The board created to be an module for Arduino and to create several ideas and projects.

BeginnerShowcase (no instructions)2 hours759

Things used in this project

Hardware components

PCBWay Custom PCB

LED 5mm - UTSOURCE

Active Buzzer - UTSOURCE

1kR Resistor - UTSOURCE

Arduino UNO - UTSOURCE

Software apps and online services

Arduino Web Editor

Arduino IDE

Story

Introduction

Several people when started in studies of the Arduino platform and other microcontrollers, need to create experiences to surge new ideas of projects.

Thinking about this necessity, we develop the MyPet Printed Circuit Board (PCB).

The MyPet PCB can be used to develop several practice activities with hobbyists and beginners in the Arduino Platform and other microcontrollers. The PCB is presented in Figure 1.

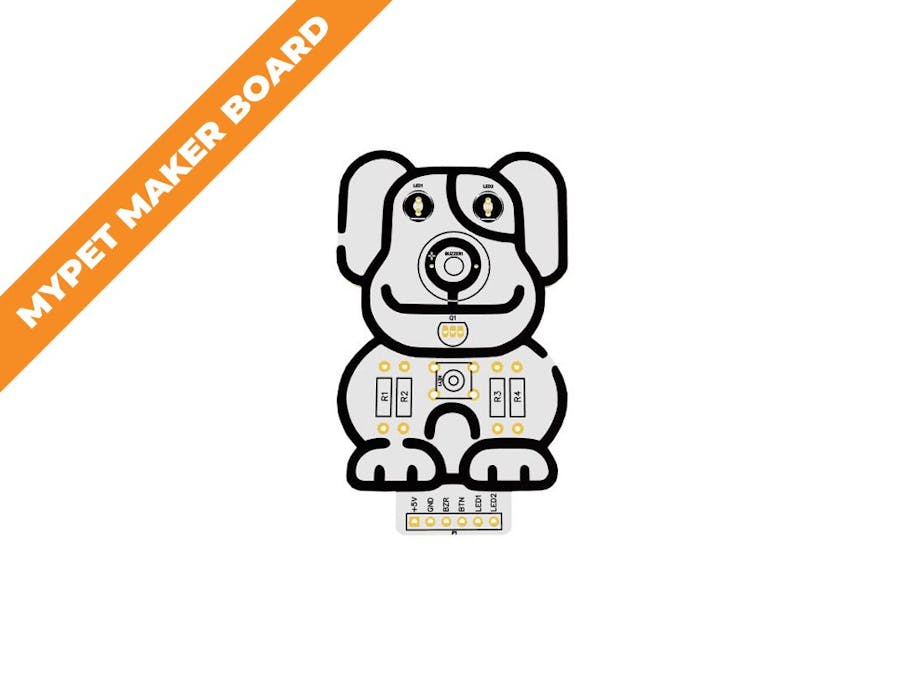

Figure 1 - MyPet PCB.

Therefore, through this board, you'll have fun programming your Arduino.

Now, the full project you'll be presented and the files of the project will be disposable in the PCBWay Shared Projects website.

The MyPet Printed Circuit Board

The MyPet PCB is an interactive printed circuit board created for Arduino programmers and other microcontrollers. So, through this board, you can create several simple interactive projects and create beginner projects.

Therefore, this printed circuit board was created in a beautiful shape of a dog, for the users to have real experience in have fun activities. Now, you can buy and kid with your imagination and Arduino Projects.

Next, we will present the project schematic and release the files for you to win 10 PCBs on the PCBWay website. For this, you only need to create an account on the site and you will earn 10 units of PCB's.

The MyPet Project

The MyPet is a small PCB and has a simple circuit. Now, you'll see the circuit of the PCB in Figure 2.

Figure 3 - Electronic Schematic of the MyPet Project.

So, from this electronic schematic was produced the layout of the MyPet in the shape of a little happy dog in Figure 4.

Figure 4 - Layout of MyPet.

Now, you can obtain your own MyPet Printed Circuit Board. For this, you can access the project in a PCBWay shared projects section and earn 10 free units.

Through this link, you can access the board in our repository of the PCBWay - Acces the MyPet PCB in our repository of PCBWay.

Therefore, through this project, you can create several activities and have a fun experience with the Arduino platform.
