Make ESP8266 Weather Station

This project is a wonderful project for IoT beginners who want to learn about retrieving data from an Online Internet server to NodeMCU

IntermediateFull instructions provided3 hours13,475

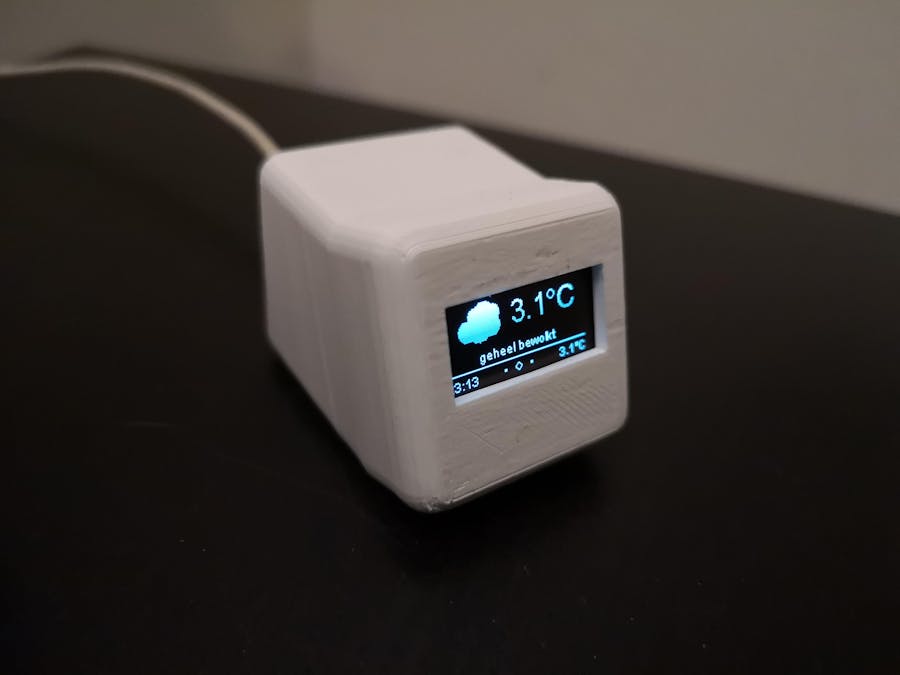

Make ESP8266 Weather Station

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
×1
0.96" OLED 64x128 Display Module
ElectroPeak 0.96" OLED 64x128 Display Module
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Arduino Nano R3
Arduino Nano R3
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

widget_body.stl

widget_body_gesture.stl

widget_body_knob.stl

Schematics


Code

Code

Arduino
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h> // http web access library
#include <ArduinoJson.h> // JSON decoding library
// Libraries for SSD1306 OLED display
#include <Wire.h> // include wire library (for I2C devices such as the SSD1306 display)
#include <Adafruit_GFX.h> // include Adafruit graphics library
#include <Adafruit_SSD1306.h> // include Adafruit SSD1306 OLED display driver

#define OLED_RESET 5 // define SSD1306 OLED reset at ESP8266 GPIO5 (NodeMCU D1)
Adafruit_SSD1306 display(OLED_RESET);

// set Wi-Fi SSID and password
const char *ssid = "Your Wifi SSID";
const char *password = "Your Wifi Password";

// set location and API key
String Location = "City Name, Country Code";
String API_Key = "Your API Key";

void setup(void)
{
Serial.begin(9600);
delay(1000);

Wire.begin(4, 0); // set I2C pins [SDA = GPIO4 (D2), SCL = GPIO0 (D3)], default clock is 100kHz

// by default, we'll generate the high voltage from the 3.3v line internally! (neat!)
display.begin(SSD1306_SWITCHCAPVCC, 0x3C); // initialize with the I2C addr 0x3D (for the 128x64)
// init done

Wire.setClock(400000L); // set I2C clock to 400kHz

display.clearDisplay(); // clear the display buffer
display.setTextColor(WHITE, BLACK);
display.setTextSize(1);
display.setCursor(0, 0);
display.println(" Internet Weather");
display.print(" Station - Jaipur");
display.display();

WiFi.begin(ssid, password);

Serial.print("Connecting.");
display.setCursor(0, 24);
display.println("Connecting...");
display.display();
while ( WiFi.status() != WL_CONNECTED )
{
delay(500);
Serial.print(".");
}
Serial.println("connected");
display.print("connected");
display.display();
delay(1000);

}

void loop()
{
if (WiFi.status() == WL_CONNECTED) //Check WiFi connection status
{
HTTPClient http; //Declare an object of class HTTPClient

// specify request destination
http.begin("http://api.openweathermap.org/data/2.5/weather?q=" + Location + "&APPID=" + API_Key); // !!

int httpCode = http.GET(); // send the request

if (httpCode > 0) // check the returning code
{
String payload = http.getString(); //Get the request response payload

DynamicJsonBuffer jsonBuffer(512);

// Parse JSON object
JsonObject& root = jsonBuffer.parseObject(payload);
if (!root.success()) {
Serial.println(F("Parsing failed!"));
return;
}

float temp = (float)(root["main"]["temp"]) - 273.15; // get temperature in °C
int humidity = root["main"]["humidity"]; // get humidity in %
float pressure = (float)(root["main"]["pressure"]) / 1000; // get pressure in bar
float wind_speed = root["wind"]["speed"]; // get wind speed in m/s
int wind_degree = root["wind"]["deg"]; // get wind degree in °

// print data
Serial.printf("Temperature = %.2f°C\r\n", temp);
Serial.printf("Humidity = %d %%\r\n", humidity);
Serial.printf("Pressure = %.3f bar\r\n", pressure);
Serial.printf("Wind speed = %.1f m/s\r\n", wind_speed);
Serial.printf("Wind degree = %d°\r\n\r\n", wind_degree);

display.setCursor(0, 24);
display.printf("Temperature: %5.2f C\r\n", temp);
display.printf("Humidity : %d %%\r\n", humidity);
display.printf("Pressure : %.3fbar\r\n", pressure);
display.printf("Wind speed : %.1f m/s\r\n", wind_speed);
display.printf("Wind degree: %d", wind_degree);
display.drawRect(109, 24, 3, 3, WHITE); // put degree symbol ( ° )
display.drawRect(97, 56, 3, 3, WHITE);
display.display();

}

http.end(); //Close connection

}

delay(60000); // wait 1 minute

}
// End of code.
