RGB LED Board

Introduction

A small and simple circuit board to control a LED strip with three potentiometers.

The board was designed for a soldering course targeted at young kids, therefore simplicity was favored over a clever circuit.

All resources can be found on Github.

Schematic

The schematic is very simple:

Potentiometer Knobs

The pot knobs have been created with OpenSCAD and can be printed on a 3D printer.

https://github.com/coredump-ch/rgb-led/tree/master/potknobs

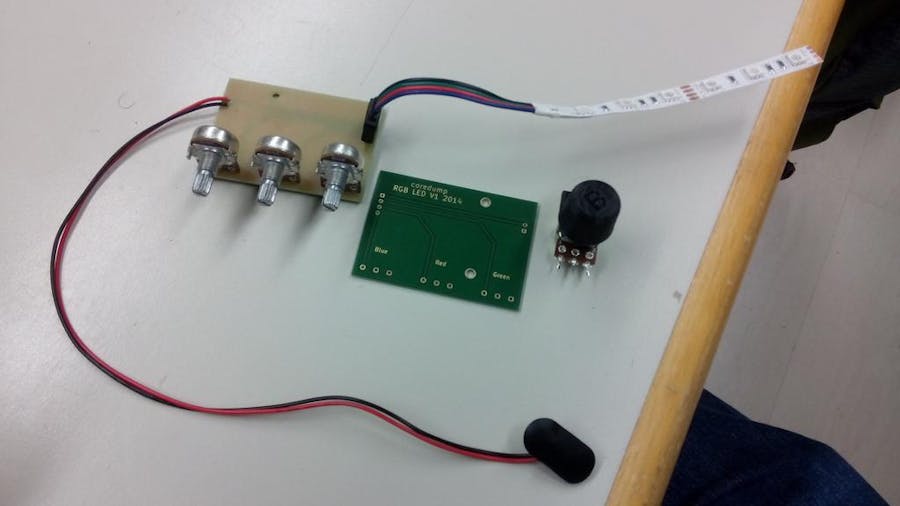

Photos
