F.I.S.K[Factory.Intruder.System.Killer](M5 Stack Project)

Develop a product, protecting machines in factories from misuse & capable of detecting high temperatures to prevent damage to the machine.

IntermediateWork in progress210

F.I.S.K[Factory.Intruder.System.Killer](M5 Stack Project)

Things used in this project

Hardware components

M5Stack FIRE IoT Development Kit (PSRAM 2.0)

M5Stack Mini RFID Unit RC522 Module Sensor

M5Stack PaHub

M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)

servo motor

Story

Factory Intruder System Killer[F.I.S.K]

Our projects aim's to be able to record down the last person to have used the machine for security purposes. Protect the machines from unauthorised people. Lastly, to help prevent overheating of machines. All these actions performed with an employee individual key card.

Project Setup

In this design, our RFID card is used for usage of machines in factories to prevent workplace accidents or misuse of the machine’s, only authorized personnel are allowed to use the machine with RFID card authorization. Furthermore, ENV II will be able to detect the temperature of the machines which will be able to alert the user when machine hits a high temperature of 104 degrees.

Flowchart Process Schematics

Blockly Code

Circuit Diagram

Block Diagram

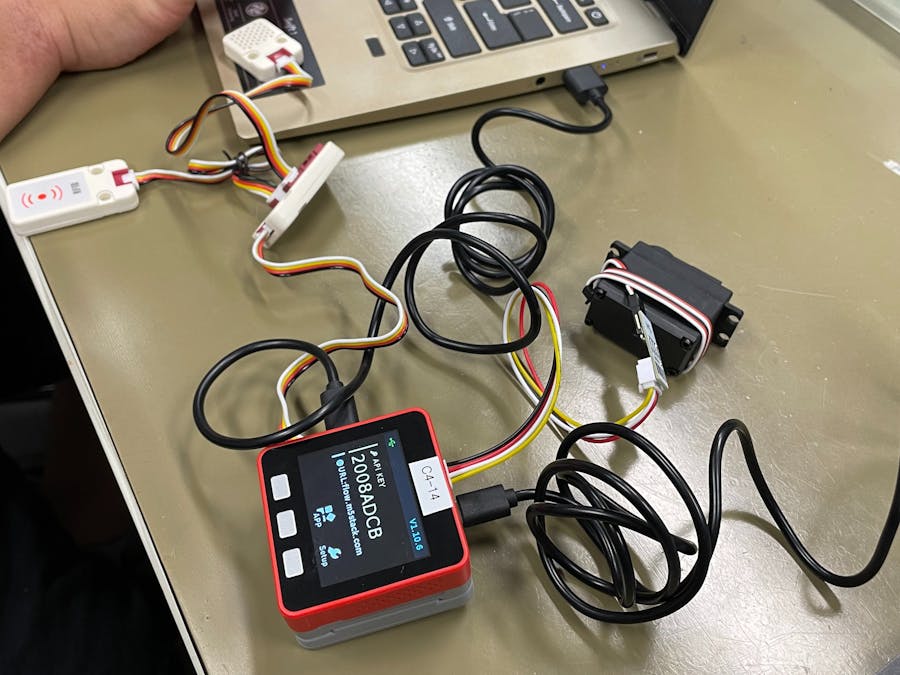

Prototype

Video Presentation and Demo
