Smart Entry System for Factory

A factory related project makes checking in and out of work more efficient and less congested.

BeginnerShowcase (no instructions)5 hours216

Things used in this project

Hardware components

M5Stack Mini RFID Unit RC522 Module Sensor

M5Stack ESP32 Basic Core IoT Development Kit

SG90 Micro-servo motor

Software apps and online services

UIFlow

Story

Our projects aim to make checking in and out of factory simpler and more efficient as sometimes in factory, the fingerprint sensor is not working well due to the working environment in factory and workers fingerprint are sometimes damaged and it causes the system to not recognize the fingerprint and hence causing a congestion in the queue.

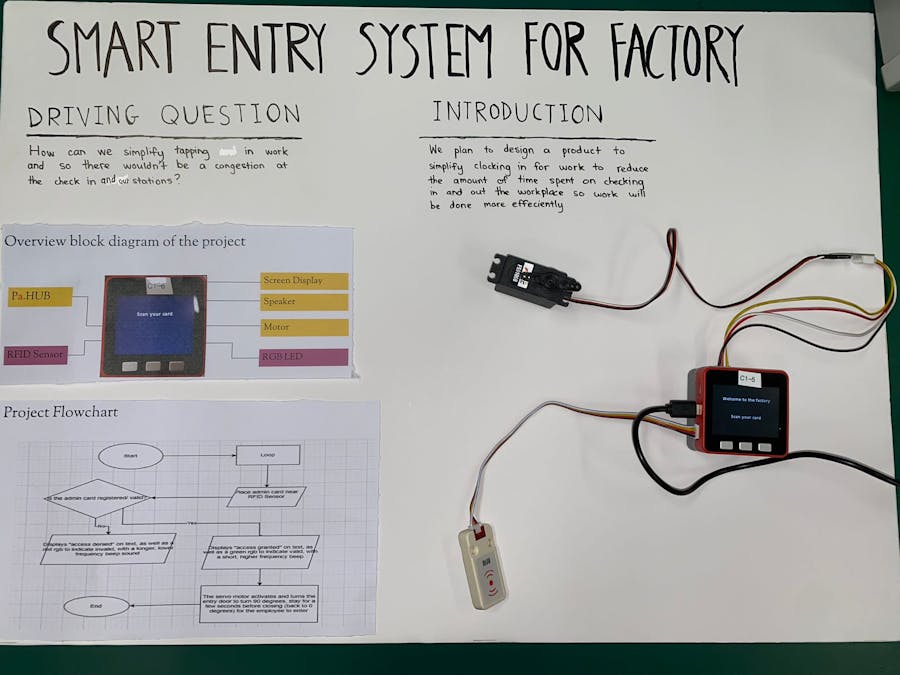

We used a RFID sensor that requires anyone that wishes to enter to tap their card first and if the sensor recognizes the card UID, it will display access granted and a green LED will light up with a buzzing sound, after that the motor will turn that acts like a gate for workers to enter the factory. However, if the card UID is not recognized, it will display access denied with a RED LED.

Code

Smart Factory

from m5stack import *
from m5ui import *
from uiflow import *
import time
import unit

setScreenColor(0x222222)
rfid_0 = unit.get(unit.RFID, unit.PORTA)
servo_0 = unit.get(unit.SERVO, unit.PORTB)


i = None
x = None



label0 = M5TextBox(90, 140, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label1 = M5TextBox(48, 55, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)




while True:
  if rfid_0.isCardOn():
    for i in ['d2bae91190', 'f2d5c10b3', '827e4312ad']:
      if (rfid_0.readUid()) == i:
        x = True
        break
      if (rfid_0.readUid()) != i:
        x = False
    if x == True:
      label0.setText('Access Granted')
      label1.setText(str(rfid_0.readUid()))
      speaker.tone(2200, 200)
      rgb.setColorAll(0x33cc00)
      wait(1)
      servo_0.write_angle(100)
      wait(3)
      servo_0.write_angle(0)
    if x == False:
      label0.setText('Access Denied')
      label1.setText(str(rfid_0.readUid()))
      speaker.tone(1600, 400)
      rgb.setColorAll(0xcc0000)
      wait(1)
  else:
    label0.setText('Scan your card')
    label1.setText('Welcome to the factory')
    rgb.setColorAll(0x000000)
  wait_ms(2)
