ESP8266 Turn On the Light -B24

Turn on the lights using the Telegram application by utilizing WiFi/hotspot

BeginnerFull instructions provided1 hour116

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board

USB-A to Micro-USB Cable

ControlEverything.com 1-Channel Signal Relay 1A SPDT I²C Mini Module

Female/Female Jumper Wires

Software apps and online services

Arduino IDE

Story

The project to turn on the lights with the ESP8266 is an IoT (Internet of Things) project which aims to make it easier for us to turn on the lights without using a light switch, because we will only use WiFi/hotspot access and the Telegram application.This IoT project will make it easier for us to control lights remotely, making our work more efficient.

Required components:

1. NodeMCU: ESP8266

2. 2 RelayModule

3. Jumper Cables, Female to Female

4. Micro USB Cable

Software Used :

1. Arduino IDE

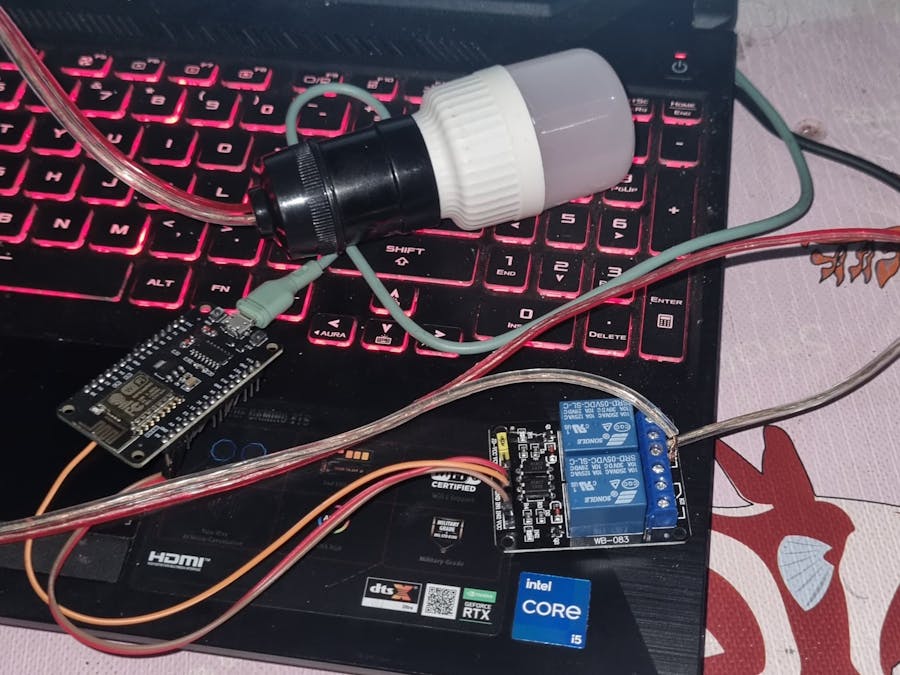

Installation steps:

1. Connect the microUSB cable to the NodeMCU ESP3866 port2. Connect between pins

VV -- VCC

G-- GND

D2 -- IN1

3. Connect USB to laptop.

4. ESP8266 programming uses the Arduino IDE to write and input code.

5. Then we reset the ESP 8266 by pressing the RST button on the board.

6. Open the serial monitor, and the local IP will appear, which can be accessed via the telegram application. Then open your telegram app.

Code

Untitled file

#include "CTBot.h"
CTBot robot;
int relay=4;

void setup() {
  Serial.begin(115200);
  pinMode(relay,OUTPUT);
  digitalWrite(relay,HIGH);
  robot.wifiConnect("Nokerprima", "N0y0k3rt3n");
  robot.setTelegramToken("7396636865:AAGzUf53DbP6pf6SITV5DV6yDoxzkpCRScQ");
  if(robot.testConnection())
  Serial.println("Terhubung!");
  else
  Serial.println("Error!");

}

void loop() {
  TBMessage pesan;

  if(robot.getNewMessage(pesan)){
    Serial.print("Ada pesan Masuk : ");
    Serial.println(pesan.text);
    if(pesan.text.equalsIgnoreCase("RELAY ON")){
      digitalWrite(relay,LOW);
      robot.sendMessage(pesan.sender.id,"Relay Menyala");
    }
    else if(pesan.text.equalsIgnoreCase("RELAY OFF")){
      digitalWrite(relay,HIGH);
      robot.sendMessage(pesan.sender.id,"Relay Padam");
    }
    else{
      String balas;
      balas="Maaf, perintahnya salah. Coba kirim RELAY ON atau RELAY OFF.";
      robot.sendMessage(pesan.sender.id,balas);
    }
  }

}
