* Test of the Pmod
*
*************************************************************************

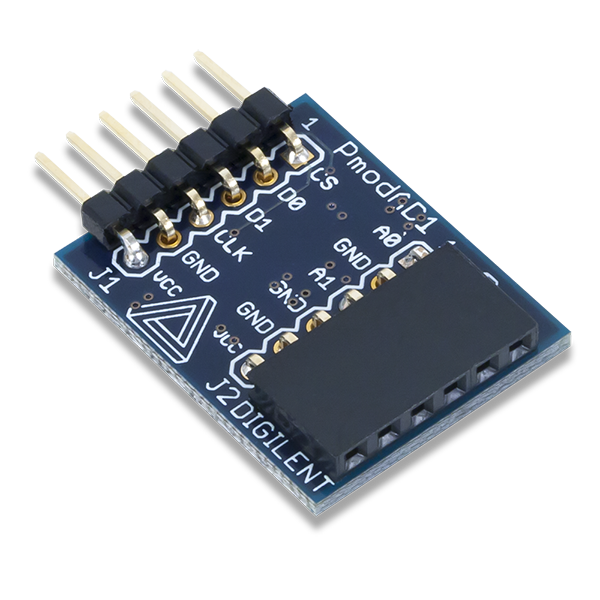

* Description: Pmod_AD1
* The result of A / D conversion of channel A0 is displayed on the serial monitor.
* Material
* 1. Arduino Uno
* 2. Pmod AD1
*
************************************************************************/
#define CS 10 // Assignment of the CS pin
#include <SPI.h> // call library
int i;
byte recu[3]; // storage of data of the module
int X;
void setup()
{
Serial.begin(9600); // initialization of serial communication
SPI.begin(); // initialization of SPI port
SPI.setDataMode(SPI_MODE0); // configuration of SPI communication in mode 0
SPI.setClockDivider(SPI_CLOCK_DIV16); // configuration of clock at 1MHz
pinMode(CS, OUTPUT);
}
void loop()
{
digitalWrite(CS, LOW); // activation of CS line
delayMicroseconds(20);
for (i=0;i<2;i=i+1)
{
recu[i] = SPI.transfer(0); // send 2 data to retrieve the converted value on 2 bytes
delayMicroseconds(20);
}
digitalWrite(CS, HIGH); // deactivation of CS line
X = recu[1]; // X is in a 12 bit format
X |= (recu[0] << 8);
for (i=0;i<2;i=i+1) // Send in serial monitor
{
Serial.print("i");
Serial.print(i);
Serial.print("=");
Serial.print(recu[i]);
Serial.print('\t'); // tabulation
}
Serial.print("X=");
Serial.println(X);
delay(100);
}
