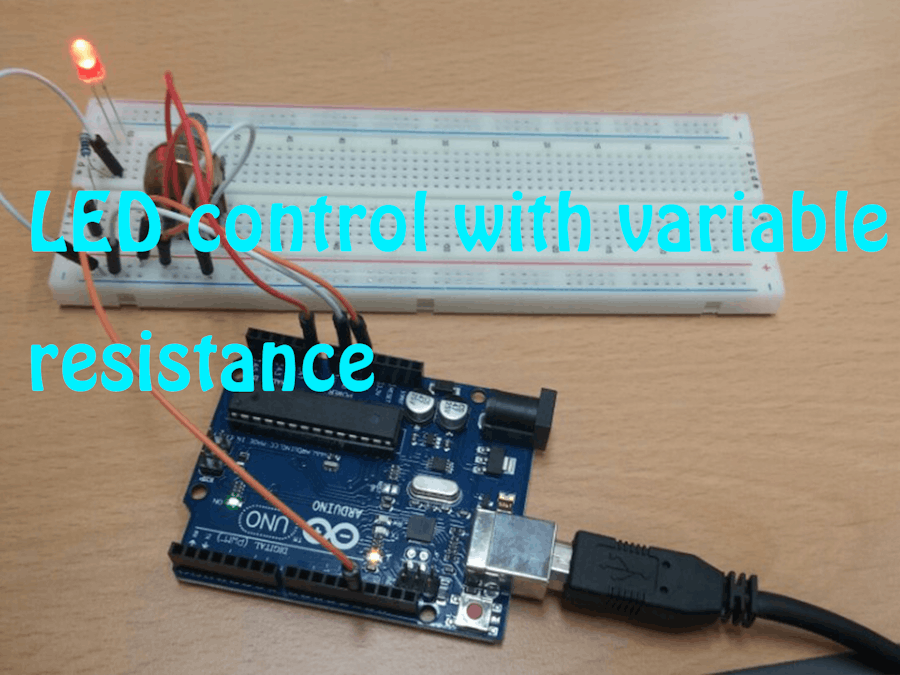

Adjusting LED Brightness With Variable Resistance

The next part to learn is variable resistance!

BeginnerProtip12 minutes3,034
Adjusting LED Brightness With Variable Resistance

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
variable resistance
×1
LED (generic)
LED (generic)
×1

Software apps and online services

Arduino IoT Cloud
Arduino IoT Cloud

Story

Read more

Schematics

LED Schematics

So..So..

Code

LED Variabler resistance

Arduino
Slowly ..
const = int Variabler = 0;
const = int led = 13;

void setup() {
  Serial.begin(9600);
  pinMode(LED, OUTPUT);


}

void loop() {
  int reading = analogRead(Variabler);
  Serial.println(reading);
  delay(500);
  int change = map(reading, 0, 1023, 0, 255);
analogWrite(led, change);
}
