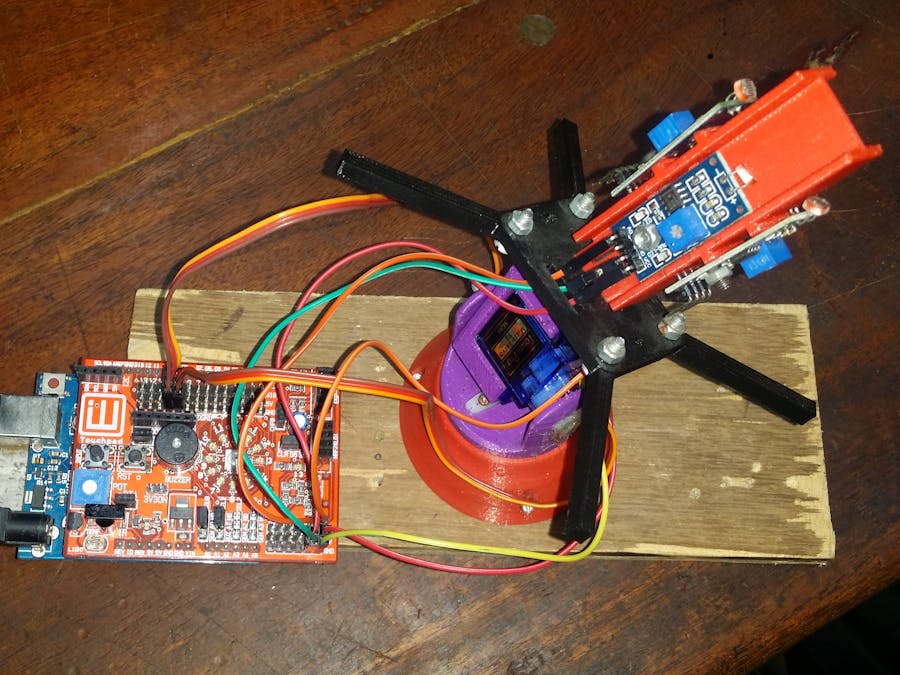

Tracking the Sun Device

Always track the sun from morning to evening.

BeginnerProtipOver 1 day970
Tracking the Sun Device

Things used in this project

Story

Read more

Schematics

idiotware_schematics_xb0OU8y1PT.pdf

Code

LDR_Solar_tracker.ino

Arduino
#include <Servo.h>      //including the library of servo motor
Servo sg90;             //initializing a variable for servo named sg90
int initial_position = 90;   //Declaring the initial position at 90
int LDR1 = A0;          //Pin at which LDR is connected
int LDR2 = A1;          //Pin at which LDR is connected
int error = 5;          //initializing variable for error
int servopin=9;
void setup()
{

  sg90.attach(servopin);  // attaches the servo on pin 9
  pinMode(LDR1, INPUT);   //Making the LDR pin as input
  pinMode(LDR2, INPUT);
  sg90.write(initial_position);   //Move servo at 90 degree
  delay(2000);            // giving a delay of 2 seconds
}

void loop()
{
  int R1 = analogRead(LDR1); // reading value from LDR 1
  int R2 = analogRead(LDR2); // reading value from LDR 2
  int diff1= abs(R1 - R2);   // Calculating the difference between the LDR's
  int diff2= abs(R2 - R1);

  if((diff1 <= error) || (diff2 <= error)) {
    //if the difference is under the error then do nothing
  } else {
    if(R1 > R2)
    {
      initial_position = --initial_position;  //Move the servo towards 0 degree
    }
    if(R1 < R2)
    {
      initial_position = ++initial_position; //Move the servo towards 180 degree
    }
  }
  sg90.write(initial_position); // write the position to servo
  delay(100);
}
