Arduino Car Counter

A low-power Arduino car counter that works by logging each time a car drives over a rubber tube across the road.

IntermediateFull instructions provided8,968

Things used in this project

Hardware components

SparkFun Arduino Pro Mini 328 - 5V/16MHz

Pimoroni RV 3028 RTC Breakout

SparkFun Level Shifting microSD Breakout

NXP MPX5100DP Pressure Sensor

TaydaElectronics DC POWER JACK 2.1MM BARREL-TYPE PCB MOUNT

Flash Memory Card, MicroSD Card

SparkFun Barrel jack power switch

4mm double headed bulkhead connector

clear plastic tube, 4mm internal diamter

4mm internal diameter rubber fuel hose

This is what the cars are going to drive over. Usually sold on ebay as something like “Cotton Braided Rubber Fuel Hose for Unleaded Petrol / Diesel, Oil Line Pipe”. Get as much as you need to go all the way across your road.

4mm hose T-connector

this is to seal the end of the hose

Pelicase 1120

Any waterproof case of this size works well

Hook Up Wire Kit, 22 AWG

Hand tools and fabrication machines

Soldering iron (generic)

Plier, Needle Nose

Solder Wire, Lead Free

Story

While talking about electronics at work, my colleague metnioned a car counter he’d bought for a large sum of money that never really worked. I had the idea that I could build one myself, from Arduino, and thought I’d give it a try.

Internet searching found the following projects that I used as inspiration:

Arudino people counting, using PIR (passive infra-red)

Car counting using a rubber tube – anonymous project on makercave. This alsoincludes a really useful PDF from Tomorrowlab

Car counting using a rubber tube – Tomorrowlab

Kris Temmermen’s car counter on Hackaday

All of these sites were incredibly useful, both for ideas, inspiration and of course code help.

The plan was to use a pressure sensor to record when there is a change in pressure inside a sealed rubber tube, such as when a car drives over it. Simple! I wanted to make it as low-power as possible, so it would run for a good while before needing batteries changed. It’s to be deployed in a rural location, counting cars coming in and out of a car park.

There was then weeks AND WEEKS of experimenting, testing and trialling, but here’s what I ended up with. This assumes you have some experience of using Arduinos, soldering, and coding.

Connecting it up:

The Arduino Pro Mini has offset A4 (SDA) and A5 (SCL) pins. This is a pain when using a breadboard because they don’t line up with any holes. The trick is to solder them to A2 and A3 respectively, turning those pins into SDA and SCL. It’s a bit fiddly! Here’s what it looks like with my mediocre soldering skills:

Soldering A2 to A4 and A3 to A5

Breadboard everything first, so you can see how things connect up. Later, when you’re happy everything works, you can arrange them on a prototype board for soldering.

Arduino Pro Mini has two power pins: VCC and RAW. RAW is power in, which gets converted by the Arduino to 5V. The closer to 5V your power in is, the more efficient the Arduino will run. Take the power from the Arduino VCC pin for everything else.

Here’s how the RV3028 RTC connects to the arduino:

Arduino - RV3028 RTC

A5 (SCL) - SCL

A4 (SDA) - SDA

Gnd - Gnd

VCC - 2-5V

I've a new line of code that allows the arduino to go to sleep when the car park is closed, so we need to connect the RTC interrupt to the arduino.

2 - INT

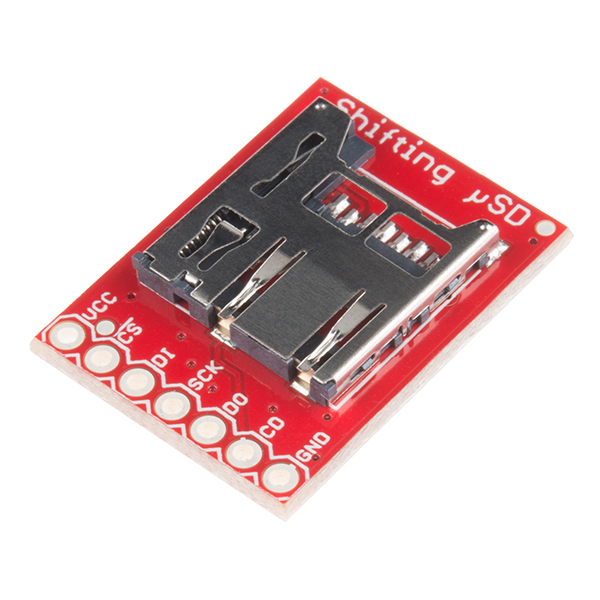

Let’s connect up the Sparkmatch Shifting microSD cardbreakout:

Arduino - MicroSD breakout

GND - GND

9 - CD

13 - DO

12 - SCK

11 - DI

8 - CS

VCC - VCC

Finally the Pressure sensor. This has 6 pins and two air ports. But we’re only going to use three pins, and attach the hose to one ofthe ports. Which ones?

Look at the data sheet for the MPX5100DP:

That's easy. The pin with a bite taken out of it is pin 1. Here’s how to wire it to the arduino:.

Arduino - MPX5100DP Pin

A0 - 1 (Vout)

GND - 2 (GND)

VCC - 3 (Vs)

The pressure sensor works by measuring the pressure in one of the ports, and comparing it to the pressure in the other port. The difference is returned as a voltage between 0 and 5. This can then be converted to Kpa or mb but we don’t really need to know that, so we’ll just use the raw values the pressure sensor returns to us.

(When I first set this up, I used the MPX5500. This measures up to 500kPa, which means it wasn’t sensitive enough to recognise a lot of cars. I switched to the MPX5100, which measures up to 100kPa, and the sensitivity was vastly improved. The company, NXP have a forum on their website which was really helpful in figuring this out).

Here’s how it looks on a breadboard. The red and black wires are going to the battery, then I'm using green and yellow for +ve and -ve from the arduino.

Without the components hiding wires:

so helpful. Black and red are going to the power source. Power from the arduino is in the green (+ve) and yellow (-ve) wires

Coding

To code this, I first learned how to use an Arduino Uno with an RTC. Then I learned how to use the microSD card reader, and tried a basic logging program – logging temperature to SD. Next, I worked out how to take readings from the pressure logger. Then I learned about the Arduino Pro Mini, and finally put them all together – so it’s not imposible for a relative beginner.

The first code to upload (I am assuming you’ve set the time on your RTC, and checked the RTC and the microSD reader are all functioning) is a simple one. It will return whatever the pressure sensor is reading every 10ms, display this on the serial monitor and write it to a csv file on themicroSD card. There’s also some code in there to keep track of a running average of the previous 10 readings.

[Car counter pressure test code]

Set this up, and if it runs, blow into the tubes on the pressure sensor, make sure you see which one is measuring pressure, and how much it’s changing by. Have a look at the csv file too, then delete it and we’ll try the car counting code.

This next code waits until the reading from the pressure sensor is a certain amount above the average of the past twenty readings. This means it measures the data spikes. It also waits 400ms between readings, so for example, a car taking a while to cross the tube doesn’t register as many. (I think this could be improved with a debounce or similar instead however).

[Full car counter code]

Try this code and run it. Blow into the tube and see if it registers as a hit.

if you’re happy with everything and it all seems to work, you might want to now solder everything to the prototyping board. I use female header sockets rather than solder the RTC, microSD and the Arduino directly on to the board, so that they’re easily replaced when something goes wrong.

Housing

Drill a hole in the plastic housing case for the bulkhead connector, and seal it in place. To fix my breadboard I glued a bit of wood inside the case, very hi-tec. I snipped small bits of the black tube and used them as spacers under the prototyping board! Use a short length of the small transparent tubing to connect the correct pressure nozzle to the bulkhead connector. Connect up the switch and the battery, the black rubber tube to the outside and it is ready to deploy!

Fix your rubber tube to the road (I just use rawl plugs and saddle clips), and seal the other end. You can do this by using the T-connector at the end, and then fit a short piece of tube from onearm of the T to the other in a D-shape. Or just put some sealant in there and a screw, or however you like.

I've put some dessicant sachets in there as well, just in case

I'd take a picture of it outside but it's been raining for 3 weeks

Testing and calibrating

With the first piece of code uploaded, take it outside, switch it on, and drive over the tube several times. Switch it off, and have a look at the.csv file on the microSD card to see what is happening. Every 10ms, a row will have been recorded, showing the date, pressure recorded and average pressure from the past twenty readings. By adding ina column simply counting the rows, and then dividing it by 100, I was able to make this graph showing the spikes by my car and my truck (and me) going overthe tube, with the number of seconds on the X axis:

The first three double spikes are me in my little car. Then I jumped on the tube a bit. Then I drove over it 4 times in my pick up truck.

Looking at this, the easiest would surely be to record a car whenever the reading is equal or greater than 60. However, we’re in the middle of a cold winter and I’m not sure how the pressure readings will change in hot, sunny weather – will the pressure in the tube increase greatly? So instead, I’m going to take a reading whenever the pressure is more than 7 above the average of the last ten readings.

You can also see a peak for each wheel axle. I looked at the data, and the average time between each axle is 0.345s (min 0.22s, max 0.56s) so I think a delay of 400ms (0.40s) should work OK to stop a single axle being recorded more than once. This is only from a sample of 7 vehicle triggers though, so I might change this.

As for each vehicle causing two spikes (one for each axle) –the easiest way to deal with this is simply to divide the final number by two when you get the data off the SD card.

Once you’ve decided where you are going to measure cars, the black tube can be held in place with saddle-clips fixed to the road with screws and rawlplugs. Try to position them so they won’t cause a puncture. For slow traffic (which I’m using, going in and out of a car park on a narrow track) this should be enough, but faster traffic may stretch and move the tube.

Set everything up, and try it out, see what data you get back. I am able to use a motion-activated camera and leave it in place for a few days, then compare the number of cars photographed vs the numbers recorded, but be wary of this (particularly in Europe) as you will need to consider data protection laws if you can’t put the camera where the reg plate isn’t recorded.

Instead you might need to sit and count cars for a few hours! Keep adjusting the triggers, both the moving average and the trigger value, until it accurately counts the cars.

Power consumption

I don’t have a way of measuring low power, but I calculated the power consumption from the components as using 193mA when triggered, and 11.3mA when at rest. I had it running for 147 hours off 1900mAh batteries (12mA average), but there weren’t many cars to trigger it. There are loads of ways to further reduce power consumption of an Arduino pro mini (see https://www.gammon.com.au/power) but this is low enough for me for now.

Code

/* ---------------------------------------------------------------
    I am trying to record a reading when the reading from an air
    pressure sensor jumps suddenly - ie when a car drives over a tube
    attached to the sensor. The Pressure Sensor is a MPX5500DP
    I am using the movingAvg library to simplify the maths a bit.
   ---------------------------------------------------------------*/

#include <movingAvg.h> // https://github.com/JChristensen/movingAvg
#include <SD.h>
#include <SPI.h>
#include <Wire.h>
#include <RV-3028-C7.h>                 // this is a low-power clock

const uint8_t airSensor(A0);  // connect pressure sensor from A0 pin to ground
movingAvg airAvg(20);        // define the moving average object
//
//unsigned long new_time=0;     // set some variables for preventing reading multiple spikes
unsigned long old_time=0;     //

RV3028 rtc;                  // get the clock going

String timestamp;           //


const int chipSelect = 8;      // SD card pin
int ledPin = 5;                // the pin the LED is connected to

File logFile; // the logging file



/* --------------------------------------------
/*  setup the average, pullup the air sensor,
 *   begin the serial monitor and show an initial
 *   reading so we knnow it is working
   --------------------------------------------*/
void setup()
{
  Wire.begin();
     Serial.begin(9600);                 // begin serial monitor
     if (rtc.begin() == false)
    {
     Serial.println("Something went wrong, check wiring");
     while (1);
    }
    else
      Serial.println("RTC online!");

  delay(1000);
   pinMode(airSensor, INPUT_PULLUP);   // air sensor

   airAvg.begin();                     //averages

   pinMode(chipSelect, OUTPUT);
   digitalWrite(chipSelect, HIGH); //ALWAYS pullup the ChipSelect pin with the SD library
   delay(100);

  // initialize the SD card
  Serial.print("Initializing SD card...");

  // make sure that the default chip select pin is set to
  // output, even if you don't use it:
  pinMode(8, OUTPUT);

  // see if the card is present and can be initialized:
  if (!SD.begin(chipSelect)) {
   Serial.println("Card failed, or not present");
    // don't do anything more:
    return;
  }
  Serial.println("Card initialized.");
  Serial.print("Logging to: ");
  Serial.println("TRAFFIC.CSV");
  logFile = SD.open("TRAFFIC.CSV", FILE_WRITE);
  logFile.println("");
  logFile.println("NEW SESSION");
  logFile.close();

  Serial.println("Setup complete");
  Serial.println("initial reading");
  int pc = analogRead(airSensor); // read the sensor
  Serial.println(pc);
}

/* --------------------------------------------
/*  Each loop should comapare the reading against
 *   the moving average, and if it is greater than
 *   the specific amount, print this to the monitor
   --------------------------------------------*/
void loop()
{
   rtc.updateTime();                       // get the time
   int pc = analogRead(airSensor);        // read the sensor
   int avg = airAvg.reading(pc);          // calculate the moving average
//   int avgPlus2 = avg + 2;               // to simplify conditional below
//   unsigned long new_time = millis();    // this is to make sure peaks are spaced, in case a single count causes a double spike
//
  delay(10);   // For some reason, the If statement that follows doesn't work without a delay here?????
//
//   if ((pc > avgPlus2) && ((new_time - old_time) > 500))  // if the reading is greater than the average, print it
   {

    // write data to serial
    Serial.print(rtc.stringDate());
    Serial.print(" ");
    Serial.print(rtc.stringTime());
    Serial.print(", ");
    Serial.print(pc);
    Serial.print(", ");
    Serial.println(avg);

    logFile = SD.open("TRAFFIC.CSV", FILE_WRITE); // open TRAFFIC.CSV file on SD Card and write to it
    logFile.print(rtc.stringDate());
    logFile.print(" ");
    logFile.print(rtc.stringTime());
    logFile.print(", ");
    logFile.print(pc);
    logFile.print(", ");
    logFile.println(avg);
    logFile.close();


//    old_time = new_time;  // spacing spikes

   }
////   else
//   {
//      delay(1);    // this is needed for some reason to make the IF statement work
//
//
//   }
}

/* ---------------------------------------------------------------
    I am trying to record a reading when the reading from an air
    pressure sensor jumps suddenly - ie when a car drives over a tube
    attached to the sensor. The Pressure Sensor is a MPX5500DP
    I am using the movingAvg library to simplify the maths a bit.
    Sarah Dalrymple - Aetos999
   ---------------------------------------------------------------*/

#include <movingAvg.h>  // https://github.com/JChristensen/movingAvg
#include <SD.h>
#include <SPI.h>
#include <Wire.h>
#include <RV-3028-C7.h>        // https://github.com/constiko/RV-3028_C7-Arduino_Library

const uint8_t airSensor(A0);  // connect pressure sensor from A0 pin to ground

// This is the moving average - change the figure in brackets to what you want

movingAvg airAvg(20);

unsigned long new_time=0;     // set some variables for preventing reading multiple spikes
unsigned long old_time=0;     //

RV3028 rtc;                  // get the clock going

String timestamp;           //

const int chipSelect = 8;      // SD card pin
int ledPin = 5;                // the pin the LED is connected to

File logFile; // the logging file



/* --------------------------------------------
/*  setup the average, pullup the air sensor,
 *   begin the serial monitor and show an initial
 *   reading so we knnow it is working
   --------------------------------------------*/
void setup()
{
  Wire.begin();
     Serial.begin(9600);                 // begin serial monitor
     if (rtc.begin() == false)
    {
     Serial.println("Something went wrong, check wiring");
     while (1);
    }
    else
      Serial.println("RTC online!");

  delay(1000);
   pinMode(airSensor, INPUT_PULLUP);   // air sensor

   airAvg.begin();                     //averages

   pinMode(chipSelect, OUTPUT);
   digitalWrite(chipSelect, HIGH); //ALWAYS pullup the ChipSelect pin with the SD library
   delay(100);

  // initialize the SD card
  Serial.print("Initializing SD card...");

  // make sure that the default chip select pin is set to
  // output, even if you don't use it:
  pinMode(8, OUTPUT);

  // see if the card is present and can be initialized:
  if (!SD.begin(chipSelect)) {
   Serial.println("Card failed, or not present");
    // don't do anything more:
    return;
  }
  Serial.println("Card initialized.");
  Serial.print("Logging to: ");
  Serial.println("TRAFFIC.CSV");
  logFile = SD.open("TRAFFIC.CSV", FILE_WRITE);
  logFile.println("");
  logFile.println("NEW SESSION");
  logFile.close();

  Serial.println("Setup complete");
  Serial.println("initial reading");
  int pc = analogRead(airSensor); // read the sensor
  Serial.println(pc);
}

/* --------------------------------------------
/*  Each loop should comapare the reading against
 *   the moving average, and if it is greater than
 *   the specific amount, print this to the monitor
   --------------------------------------------*/
void loop()
{
   rtc.updateTime();                       // get the time
   int pc = analogRead(airSensor);        // read the sensor
   int avg = airAvg.reading(pc);          // calculate the moving average
   int avgPlus = avg + 5;               // to simplify conditional below
   unsigned long new_time = millis();    // this is to make sure peaks are spaced, in case a single count causes a double spike

   delay(1);   // For some reason, the If statement that follows doesn't work without a delay here?? I think this is a bug in my system

 // if the reading is greater than the average & however many ms has passed since last time, print it.
 // This is the ms value between peaks - change it to help calibrate your counter
   if ((pc > avgPlus) && ((new_time - old_time) > 400))
   {

    // write data to serial
    Serial.print(rtc.stringDate());
    Serial.print(" ");
    Serial.print(rtc.stringTime());
    Serial.print(", ");
    Serial.print(pc);
    Serial.print(", ");
    Serial.println(avg);

    logFile = SD.open("TRAFFIC.CSV", FILE_WRITE); // open TRAFFIC.CSV file on SD Card and write to it
    Serial.println("log");
    logFile.print(rtc.stringDate());
    logFile.print(" ");
    logFile.print(rtc.stringTime());
    logFile.print(", ");
    logFile.print(pc);
    logFile.print(", ");
    logFile.println(avg);
    logFile.close();
    Serial.println("done.");

    old_time = new_time;  // spacing spikes

   }
   else
   {
      delay(1);    // this is needed for some reason to make the IF statement work


   }
}

/* ---------------------------------------------------------------
    Record a reading when the reading from an air
    pressure sensor jumps suddenly - ie when a car drives over a tube
    attached to the sensor. The Pressure Sensor is a MPX5500DP
    I am using the movingAvg library to simplify the maths a bit.
    It goes to sleep between 10pm and 8am as there is no traffic then.

   ---------------------------------------------------------------*/

#include <movingAvg.h>  // https://github.com/JChristensen/movingAvg
#include <SD.h>
#include <SPI.h>
#include <Wire.h>
#include <RV-3028-C7.h>        // https://github.com/constiko/RV-3028_C7-Arduino_Library
#include "LowPower.h"         // low power library

RV3028 rtc;                  // get the clock going

const uint8_t airSensor(A0);  // connect pressure sensor from A0 pin to ground

const int wakeUpPin = 2;      // Use pin2  to wake up.

//The below variables control what the alarm will be set to. See the RV-3028 library for more details
int alm_minute = 28;           // this is ignored
int alm_hour = 8;            // wake up at 8am
int alm_date_or_weekday = 2; // this is ignored
bool alm_isweekday = false;  // this is ignored
uint8_t alm_mode = 5;         // this mode means we just check when the hours match = alarm

movingAvg airAvg(20);        // sets the moving average - change the figure in brackets to what you want

unsigned long new_time = 0;   // set some variables for preventing reading multiple spikes
unsigned long old_time = 0;   //

String timestamp;           //

const int chipSelect = 8;      // SD card pin
int ledPin = 5;                // the pin the LED is connected to

File logFile;               // the logging file


void wakeUp()
{
    // Just a handler for the pin interrupt.
}

/* --------------------------------------------
  /*  setup the average, pullup the air sensor,
     begin the serial monitor and show an initial
     reading so we knnow it is working
   --------------------------------------------*/
void setup()
{
  pinMode(wakeUpPin, INPUT_PULLUP);        // Configure wake up pin as input.

  Wire.begin();
  Serial.begin(9600);                 // begin serial monitor
  if (rtc.begin() == false)
  {
    Serial.println("Something went wrong, check wiring");
    while (1);
  }
  else
    Serial.println("RTC online!");
  //Enable alarm interrupt
  rtc.enableAlarmInterrupt(alm_minute, alm_hour, alm_date_or_weekday, alm_isweekday, alm_mode);


  delay(1000);

  pinMode(airSensor, INPUT_PULLUP);   // air sensor

  airAvg.begin();                     //averages

  pinMode(chipSelect, OUTPUT);
  digitalWrite(chipSelect, HIGH); //ALWAYS pullup the ChipSelect pin with the SD library
  delay(100);

  // initialize the SD card
  Serial.print("Initializing SD card...");

  // make sure that the default chip select pin is set to
  // output, even if you don't use it:
  pinMode(8, OUTPUT);

  // see if the card is present and can be initialized:
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // don't do anything more:
    return;
  }
  Serial.println("Card initialized.");
  Serial.print("Logging to: ");
  Serial.println("TRAFFIC.CSV");
  logFile = SD.open("TRAFFIC.CSV", FILE_WRITE);
  logFile.println("");
  logFile.println("NEW SESSION");
  logFile.close();

  Serial.println("Setup complete");
  Serial.println("initial reading");
  int pc = analogRead(airSensor); // read the sensor
  Serial.println(pc);
  delay(250);
}

/* --------------------------------------------
  /*  Each loop should comapare the reading against
     the moving average, and if it is greater than
     the specific amount, it records to SD and serial
   --------------------------------------------*/
void loop()
{
  rtc.updateTime();             // get the time
  int hour = rtc.getHours();    // get the hour
  if (hour == 22)               // if it's a match, go to sleep
   {
    Serial.println("sleep time");
    GoToSleep();  //go to the sleep void
   }
  CountCars(); // or just keep counting the cars
}

void GoToSleep()
{
    // Allow wake up pin to trigger interrupt on low.
    attachInterrupt(0, wakeUp, LOW); // go to the wakeUp void when alarm triggers
    // Enter power down state with ADC and BOD module disabled.
    // Wake up when wake up pin is low.
    logFile = SD.open("TRAFFIC.CSV", FILE_WRITE); // open TRAFFIC.CSV file on SD Card and write to it, plus a few lines to know it's all working. you can remove these once you are happy it is
    logFile.print("went to sleep");
    logFile.print(",");
    logFile.print(rtc.stringDate());
    logFile.print("-");
    logFile.println(rtc.stringTime());
    logFile.close();
    Serial.println("sleep time");
    delay(50);
    LowPower.powerDown(SLEEP_FOREVER, ADC_OFF, BOD_OFF);

    // Wakes up here!
    detachInterrupt(0); //disable the interupt pin

    Serial.println("alarm"); //let me know we woke up OK
    logFile = SD.open("TRAFFIC.CSV", FILE_WRITE); // open TRAFFIC.CSV file on SD Card and write to it
    logFile.print("woke up");
    logFile.print(",");
    logFile.print(rtc.stringDate());
    logFile.print("-");
    logFile.println(rtc.stringTime());
    logFile.close();
    delay(50);

 CountCars(); //go back to counting cars
}

void CountCars()
{
    rtc.updateTime();                      // get the time
    int pc = analogRead(airSensor);        // read the sensor
    int avg = airAvg.reading(pc);          // calculate the moving average
    int avgPlus = avg + 5;                 // to simplify conditional below
    unsigned long new_time = millis();     // this is to make sure spikes are spaced, in case a single count causes a double spike

    delay(1);   // For some reason, the If statement that follows doesn't work without a delay here?? I think this is a bug in my system

    // if the reading is greater than the average & however many ms has passed since last time, print it.
    // This is the ms value between spikes - change it to help calibrate your counter
    // eg don't count a spike if it occurs within 400ms of the last one
    if ((pc > avgPlus) && ((new_time - old_time) > 400))
    {
      // write data to serial
      Serial.print(rtc.stringDate());
      Serial.print(" ");
      Serial.print(rtc.stringTime());
      Serial.print(", ");
      Serial.print(pc);
      Serial.print(", ");
      Serial.println(avg);

      // write data to the csv file
      logFile = SD.open("TRAFFIC.CSV", FILE_WRITE); // open TRAFFIC.CSV file on SD Card and write to it
      Serial.println("log");
      logFile.print(rtc.stringDate());
      logFile.print(",");
      logFile.print(rtc.stringTime());
      logFile.print(",");
      logFile.print(pc);
      logFile.print(",");
      logFile.println(avg);
      logFile.close();
      Serial.println("done.");

      old_time = new_time;  // spacing spikes

    }
    else
    {
      delay(5);

    }

}

Credits

Aetos999

0 projects • 0 followers
