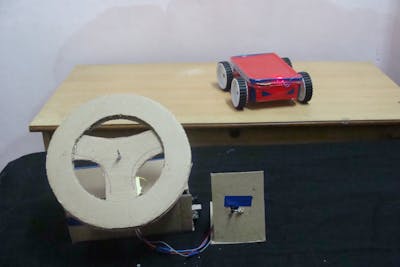

How to Make a Smart RC Car with Steering Wheel Remote

A remote control car controlled with a steering wheel using mpu6050 sensor and rf434.

BeginnerShowcase (no instructions)4,701
How to Make a Smart RC Car with Steering Wheel Remote

Things used in this project

Code

smart rc car with steering wheel remote

C/C++
#include<Wire.h>
long accelx,accely,accelz; // define accelerometer variables
float gforcex,gforcey,gforcez;
int irsensorbackward=A0;
 // same for backward direction
int pin13=12; // pin13,pin12,pin11,pin10 these pins are the data pin of ht12e ic
int pin12=10;
int pin11=8;
int pin10=7;
int value; // this takes the analog reading of irsensorbackward

void setup()
{
  Serial.begin(9600);
  Wire.begin(); // initialising

  pinMode(irsensorbackward,INPUT);
  pinMode(pin13,OUTPUT);
  pinMode(pin12,OUTPUT);
  pinMode(pin11,OUTPUT);
  pinMode(pin10,OUTPUT);

  setupmpu(); // call the function
}
void loop()
{
    value=analogRead(irsensorbackward);
 accelregistervalue();


Serial.println(value);

  // reading from gforcey variable only
  if(value > 255)
  {
     if(gforcey>-0.39 || gforcey<0.39)
       {
    digitalWrite(pin13,LOW);  // the car will move in the forward direction
    digitalWrite(pin12,HIGH);
    digitalWrite(pin11,LOW);
    digitalWrite(pin10,HIGH);
       }
      if(gforcey<-0.40) // if the condition will true then the car will move in the left side
        {
           digitalWrite(pin13,LOW);
           digitalWrite(pin12,HIGH);
           digitalWrite(pin11,HIGH);
           digitalWrite(pin10,HIGH);
         }
      if(gforcey>0.40) // if this condition will true then the car will turn right
        {

     digitalWrite(pin13,HIGH);
    digitalWrite(pin12,HIGH);
    digitalWrite(pin11,LOW);
    digitalWrite(pin10,HIGH);
        }
 }

 if(value<255) // all motors are off mode
   {

        digitalWrite(pin13,HIGH);
        digitalWrite(pin12,HIGH);
        digitalWrite(pin11,HIGH);
        digitalWrite(pin10,HIGH);

   }
}
void setupmpu()
{
  Wire.beginTransmission(0b1101000); // send slave address
  Wire.write(0x6B); // 6B regidter which i want to access
  Wire.write(0b00000000); // set all bits of these register are 0
  Wire.endTransmission();

  // accelerometer configuration
  Wire.beginTransmission(0b1101000);
  Wire.write(0x1c);
  Wire.write(0b00000000);
  Wire.endTransmission();
}
void accelregistervalue()
{
    Wire.beginTransmission(0b1101000);
  Wire.write(0x3B);
  Wire.endTransmission();
  Wire.requestFrom(0b1101000,6);
  while(Wire.available()<6);
  accelx=Wire.read()<<8| Wire.read();
  accely=Wire.read()<<8 | Wire.read();
  accelz=Wire.read()<<8 | Wire.read();
  gforcex=accelx/16384.0;
  gforcey=accely/16384.0;
  gforcez=accelz/16384.0;
}
