Secret Knock Lock (Project 9 )

Knock the correct amount of times on the buzzer to move the servo arm.

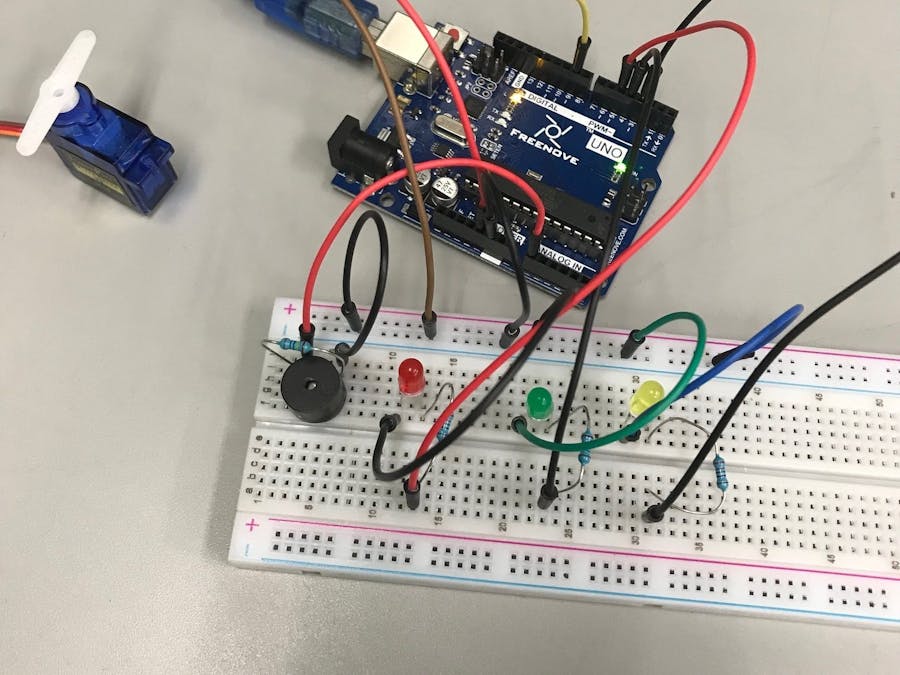

Secret Knock Lock (Project 9 )

Things used in this project

Story

Read more

Code

Project_9.ino

C/C++
#include <Servo.h>
Servo servo9; // Pin connected to servo mpo
const int piezo = A0;    // Pin connected to piezo
const int switchPin = 2; // Pin connected to servo
const int yellowLed = 3; // Pin connected to yellow LED
const int greenLed = 4;  // Pin connected to green LED
const int redLed = 5;    // Pin connected to red LED
int knockVal;   // Value for the knock strength
int switchVal;
const int quietKnock = 10; // Set min value that will be accepted
const int loudKnock = 100; // Set max value that will be accepted
boolean locked = false;    // A true or false variable
int numberOfKnocks = 0;    // Value for number of knocks

void setup() {
  // put your setup code here, to run once:
servo9.attach(9);
pinMode(yellowLed, OUTPUT);   // Set LED pins as outputs
pinMode(greenLed, OUTPUT);
pinMode(redLed, OUTPUT);
pinMode(switchPin, INPUT);    // Set servo pin as input
Serial.begin(9600);
digitalWrite(greenLed, HIGH); // Green LED is lit when the
// sequence is correct
servo9.write(0);
Serial.println("The box is unlocked!");
}

void loop() {
  // put your main code here, to run repeatedly:
if (locked == false) {
  switchVal = digitalRead(switchPin);
  if (switchVal == HIGH) {
    locked = true;
    digitalWrite(greenLed, LOW);
    digitalWrite(redLed, HIGH);
    servo9.write(90);
    Serial.println("The box is locked!");
    delay(1000);
    }
    }
    if (locked == true)
    {
      knockVal = analogRead(piezo); // Knock value is read by analog pin
      if (numberOfKnocks < 3 && knockVal > 0) {
        if (checkForKnock(knockVal) == true) { // Check for correct
          // number of knocks
          numberOfKnocks++;      }
          Serial.print(3 - numberOfKnocks);
          Serial.println(" more knocks to go");    }
          if (numberOfKnocks >= 3) { // If 3 valid knocks are detected,
            // the servo moves
            locked = false;
            servo9.write(0);
            delay(20);
            digitalWrite(greenLed, HIGH);
            digitalWrite(redLed, LOW);
            Serial.println("The box is unlocked!");
            }
            }
            }




boolean checkForKnock(int value) { // Checks knock value
  if (value > quietKnock && value < loudKnock) { // Value needs to be
    // between these
    digitalWrite(yellowLed, HIGH);
    delay(50);
    digitalWrite(yellowLed, LOW);
    Serial.print("Valid knock of value ");
    Serial.println(value);
    return true;  }
    else { // If value is false then send this to the IDE serial
      Serial.print("Bad knock value ");
      Serial.println(value);
      return false;  }
}
