Published October 22, 2018
Arduino Game to Test Your Reflexes!

This lights-and-buttons game tests how quick you are to react, and is a lot of fun to play!
IntermediateShowcase (no instructions)3,419
Things used in this project

Hardware components

Arduino Mega 2560
Resistor 330 ohm
Jumper wires (generic)
Piezo buzzer
Rotary Encoder with Push-Button
LED (generic)
Blue LED
White LED
Multicolored LED
Story

This is a game that has a light bouncing back and forth along a row of LEDs. Push the button when it is in the middle to level up. Work your way through twenty levels to win!

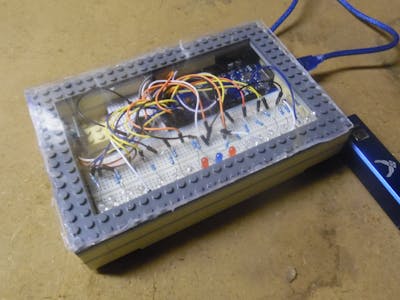

This project uses an Arduino Mega 2560 with a lego casing and plexiglass cover. The sounds are run by a piezo speaker, and there are seventeen LEDs along a breadboard with 300 ohm resistors.
1 / 3
Because I needed a long button to reach through the lego wall and out to where the user could push it, I utilized a rotary encoder's sw pin and push-button.
Most of the sounds run are not musical, but sirens, buzzers, etc. I did not spend much time creating the sound program parts, the speaker was an addition to the original project.
This is a short write-up, and as in my previous projects there is a longer one at my site here.
Code for TestYourReaction Game
#include "pitches.h"

const int rotary = 4;
int bonus1 = 22;
int w1 = 23;
int w2 = 24;
int r3 = 25;
int w4 = 26;
int w5 = 27;
int w6 = 28;
int y1 = 29;
int blue = 30;
int y2 = 31;
int w7 = 32;
int w8 = 33;
int w9 = 34;
int r10 = 35;
int w11 = 36;
int w12 = 37;
int bonus2 = 38;

int Ypos = 23;
int level = 1;
int free1 = 0;
int speed1 = 50;
int fy;

void clear(){
  for(int i = 22; i < 39; i++){
    digitalWrite(i,LOW);
  }
}

void on(){
  for(int i = 22; i < 39; i++){
    digitalWrite(i, HIGH);
  }
}

void RtL(){
  for(int i = 39; i > 21; i--){
    digitalWrite(i, HIGH);
    tone(8, i*100, 100);
    delay(100);
  }
}

void LtR(){
  for(int i = 22; i < 39; i++){
    digitalWrite(i, HIGH);
    tone(8, i*100, 100);
    delay(100);
  }
}

void RtLc(){
  for(int i = 39; i > 21; i--){
    digitalWrite(i, LOW);
    delay(100);
  }
}

void LtRc(){
  for(int i = 22; i < 39; i++){
    digitalWrite(i, LOW);
    delay(100);
  }
}

int updown = 0;
void directionChange(){
  if(Ypos == 23){
    updown=1;
  }if(Ypos == 37){
    updown=0;
  }
}

void inOut(){
  for(int i = 22; i < 30; i++){
      digitalWrite(i, HIGH);
      tone(8, i*100, 100);
      delay(40);
    }for(int i = 39; i > 30; i--){
      digitalWrite(i, HIGH);
      tone(8, i*100, 100);
      delay(40);
    }

    delay(1000);

    for(int i = 30; i > 21; i--){
      digitalWrite(i, LOW);
      delay(40);
    }for(int i = 30; i < 39; i++){
      digitalWrite(i, LOW);
      delay(40);
    }
}

void QuickBack(){
  for(int i = 0; i < 5; i++){
    for(int i = 22; i < 39; i++){
      digitalWrite(i, HIGH);
      tone(8, i*100, 30);
      delay(10);
      clear();
    }for(int i = 39; i > 22; i--){
      digitalWrite(i, HIGH);
      tone(8, i*100, 30);
      delay(10);
      clear();
    }
  }
}

void March(){
  for(int i = 0; i < 10; i++){
    for(int i = 22; i < 39; i+=2){
      digitalWrite(i, HIGH);
      tone(8, i*75, 70);
    }delay(100);
    clear();
    for(int i = 23; i < 39; i+=2){
      digitalWrite(i, HIGH);
      tone(8, i*75, 70);
    }delay(100);
    clear();
  }
}

void setup(){
  fy = speed1;
  for(int i = 22; i < 39; i ++){
    pinMode(i, OUTPUT);
  }
  pinMode(rotary, INPUT);
  digitalWrite(rotary, HIGH);
  Serial.begin(9600);

  while(digitalRead(rotary)){
    for(int i = 22; i < 39; i+=2){
      digitalWrite(i, HIGH);
      tone(8, NOTE_C5, 100);
    }delay(100);
    tone(8, NOTE_D5, 100);
    delay(100);
    clear();
    for(int i = 23; i < 39; i+=2){
      digitalWrite(i, HIGH);
      tone(8, NOTE_G5, 100);
    }delay(100);
    tone(8, NOTE_E5, 100);
    delay(100);
    clear();
  }
  clear();
  on();
  delay(3000);
  clear();
  delay(1000);
}


void waiting(){
  tone(8, NOTE_C5, 500);
  delay(500);
  tone(8, NOTE_D5, 500);
  delay(500);
  tone(8, NOTE_F5, 500);
  delay(500);
}

void level1(){
  speed1=50;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;Serial.println("Level Up");
    March();
  }else if(Ypos == 29 || Ypos == 31){
    inOut();

    Ypos=22;
    level1();
  }else{
  QuickBack();
  level = 1;
  Ypos=22;}
}

void level2(){
  Ypos=22;
  updown=1;
  speed1=40;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level2();
  }else{
  QuickBack();
  level = 1;}
}

void level3(){
  Ypos=22;
  updown=1;
  speed1=30;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level3();
  }else{
  QuickBack();


  level = 1;}
}

void level4(){
  Ypos=22;
  updown=1;
  speed1=20;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level4();
  }else{
  QuickBack();


  level = 1;}
}

void level5(){
  Ypos=22;
  updown=1;
  speed1=10;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level5();
  }else{
  QuickBack();


  level = 1;}
}

void level6(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    directionChange();
    if(updown==0){
      Ypos--;
      Serial.println("Y--");
    }if(updown==1){
      Ypos++;
      Serial.println("Y++");
    }digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level6();
  }else{
  QuickBack();


  level = 1;}
}

void level15(){
  Ypos=22;
  updown=1;
  speed1=40;
  while(free1 == 0){
    Ypos=random(23,38);
    digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level15();
  }else{
  QuickBack();


  level = 1;}
}

void level7(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    if(Ypos==37){
      Ypos=22;
    }Ypos++;
    digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level7();
  }else{
  QuickBack();


  level = 1;}
}

void level8(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    digitalWrite(Ypos, HIGH);
    Serial.println(Ypos);
    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    if(Ypos==37 || Ypos==23){
      int y = speed1;
      y=y*random(0,40);
      while(y!=0){
        if(!digitalRead(rotary)){
          free1=1;
        }y--;
        delay(10);
      }
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level8();
  }else{
  QuickBack();


  level = 1;}
}

void level9(){
  Ypos=22;
  updown=1;
  speed1=40;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    for(int i = 22;  i < 38; i++){
      if(i!=Ypos){
        digitalWrite(i, HIGH);
      }
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level9();
  }else{
  QuickBack();


  level = 1;}
}

void level10(){
  Ypos=22;
  updown=1;
  speed1=20;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    for(int i = 22;  i < 38; i++){
      if(i!=Ypos){
        digitalWrite(i, HIGH);
      }
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level10();
  }else{
  QuickBack();


  level = 1;}
}

void level11(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    for(int i = 22;  i < 38; i++){
      if(i!=Ypos){
        digitalWrite(i, HIGH);
      }
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level11();
  }else{
  QuickBack();


  level = 1;}
}

void level12(){
  Ypos=22;
  updown=1;
  speed1=20;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    digitalWrite(Ypos, HIGH);

    if(Ypos <= 25 || Ypos >= 35){
      speed1=20;
    }else if(Ypos <= 27 || Ypos >= 33){
      speed1=10;
    }else if(Ypos <= 31){
      speed1=5;
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level12();
  }else{
  QuickBack();


  level = 1;}
}

void level13(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    digitalWrite(Ypos, HIGH);

    if(Ypos <= 26){
      speed1=20;
    }else if(Ypos <= 28){
      speed1=15;
    }else if(Ypos <= 31){
      speed1=10;
    }else if(Ypos <= 34){
      speed1=7;
    }else if(Ypos <= 37){
      speed1=5;
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level13();
  }else{
  QuickBack();


  level = 1;}
}

void level14(){
  Ypos=22;
  updown=1;
  speed1=10;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }


    if(Ypos != 26 && Ypos != 27 && Ypos != 33 && Ypos != 34){
      digitalWrite(Ypos, HIGH);
    }


    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level14();
  }else{
  QuickBack();


  level = 1;}
}

void level16(){
  Ypos=22;
  updown=1;
  speed1=5;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    for(int i = 22; i < 38; i++){
      if(i != Ypos){
        digitalWrite(i, HIGH);
      }
    }

    if(Ypos <= 26){
      speed1=20;
    }else if(Ypos <= 28){
      speed1=15;
    }else if(Ypos <= 31){
      speed1=10;
    }else if(Ypos <= 34){
      speed1=7;
    }else if(Ypos <= 37){
      speed1=5;
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level16();
  }else{
  QuickBack();


  level = 1;}
}

void level17(){
  Ypos=22;
  updown=1;
  speed1=20;
  while(free1 == 0){
    directionChange();

    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    for(int i = 22; i < 38; i++){
      if(i != Ypos){
        digitalWrite(i, HIGH);
      }
    }

    if(Ypos <= 25 || Ypos >= 35){
      speed1=20;
    }else if(Ypos <= 27 || Ypos >= 33){
      speed1=10;
    }else if(Ypos <= 31){
      speed1=5;
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level17();
  }else{
  QuickBack();


  level = 1;}
}

int u = 0;
void level20(){
  Ypos=22;
  updown=1;
  speed1=5;
  int flip = 0;
  while(free1 == 0){
    directionChange();
    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    digitalWrite(Ypos, HIGH);
    if(flip==0){
      for(int i = 22; i < 38; i+=2){
        digitalWrite(i, LOW);
      }
    }else if(flip==1){
      for(int i = 23; i < 38; i+=2){
        digitalWrite(i, LOW);
      }
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }
    u+=speed1;
    if(u==10){
      u=0;
      if(flip==0){
        flip=1;
      }else if(flip==1){
        flip=0;
      }
    }
    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level20();
  }else{
  QuickBack();


  level = 1;}
}

void level18(){
  Ypos=22;
  updown=1;
  speed1=10;
  int flip = 0;
  while(free1 == 0){
    directionChange();
    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    if(Ypos != 24 && Ypos != 26 && Ypos != 28 && Ypos != 30 && Ypos != 32 && Ypos != 34 && Ypos != 36 && Ypos != 38){
      digitalWrite(Ypos, HIGH);
    }

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    clear();
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level18();
  }else{
  QuickBack();


  level = 1;}
}

void level19(){
  Ypos=22;
  updown=1;
  speed1=10;
  int flip = 0;
  while(free1 == 0){
    directionChange();
    if(updown==1){
      Ypos++;
    }else if(updown==0){
      Ypos--;
    }

    digitalWrite(Ypos, HIGH);

    int y = speed1;
    while(y!=0){
      if(!digitalRead(rotary)){
        free1=1;
      }y--;
      delay(10);
    }

    if(Ypos==30 || Ypos == 37 || Ypos == 23){
      clear();
    }
  }
  digitalWrite(Ypos, HIGH);
  waiting();
  Serial.println("Switch Pressed");
  free1=0;
  clear();
  if(Ypos == 30){
    level++;
    March();
  }else if(Ypos == 29 || Ypos == 31){
    Ypos=22;
    inOut();
    level19();
  }else{
  QuickBack();


  level = 1;}
}

void  loop2(){
  LtR();
  RtLc();
  if(level == 1){
    Ypos=22;
    updown=1;
    level1();
  }
  if(level == 2){
    level2();Serial.println("level2");
  }if(level == 3){
    level3();
  }if(level == 4){
    level4();
  }if(level == 5){
    level5();
  }if(level == 6){
    level6();
  }if(level == 7){
    level7();
  }if(level == 8){
    level8();
  }if(level == 9){
    level9();
  }if(level == 10){
    level10();
  }if(level == 11){
    level11();
  }if(level == 12){
    level12();
  }if(level == 13){
    level13();
  }if(level == 14){
    level14();
  }if(level == 15){
    level15();
  }if(level == 16){
    level16();
  }if(level == 17){
    level17();
  }if(level == 18){
    level18();
  }if(level == 19){
    level19();
  }if(level == 20){
    level20();
  }
}

void loop(){
  LtR();
  LtRc();
  level1();
  if(level==2){
    while(true){
      loop2();
    }
  }
}
Credits

Arduino Game to Test Your Reflexes!

Things used in this project

Hardware components

Story

Code

Code for TestYourReaction Game

Credits

Bie

Comments

Embed the widget on your own site

Arduino Game to Test Your Reflexes!

Arduino Game to Test Your Reflexes!

Things used in this project

Hardware components

Story

Code

Code for TestYourReaction Game

Credits

Bie

Comments

Related channels and tags
