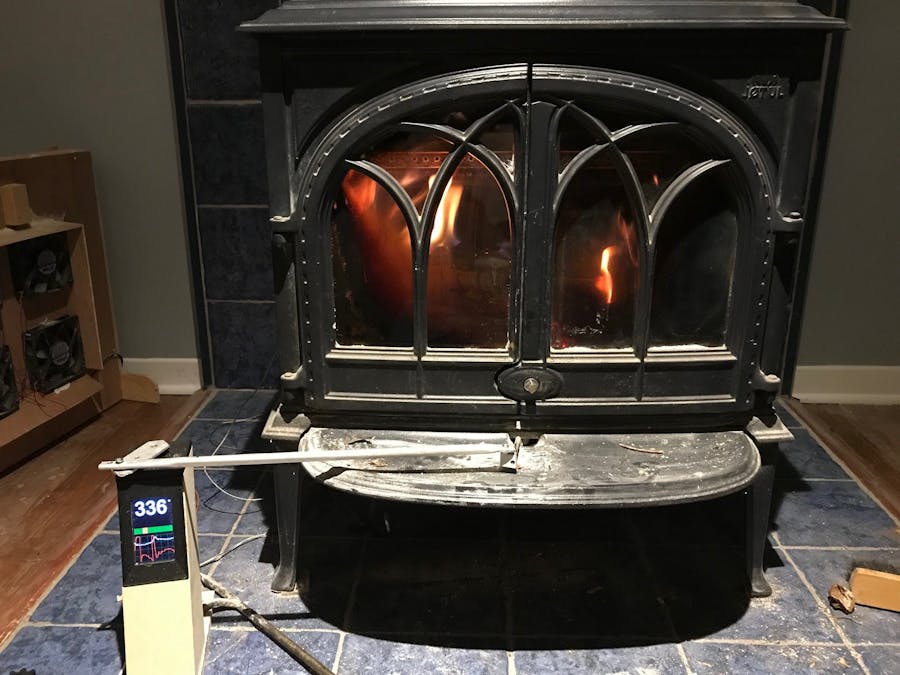

Wood stove monitor and control

#include <EEPROM.h>
#include <Servo.h>
#include <Wire.h>
#include <SimpleTimer.h>
#include <max6675.h>
#include <Servo.h>
#include <SoftwareSerial.h>
#include <Average.h>

#define rxPin 2
#define txPin 3
#define buzzerPin  7
#define motor_pin 9
#define ktcCLK  10
#define ktcCS  11
#define ktcSO  12

SimpleTimer timer;
int timerId1,  timerId2, timerId3, timerId4, timerId5 ;
// set up a new serial port
SoftwareSerial Serial1 =  SoftwareSerial(rxPin, txPin);
Servo Motor_inTake;

long lastTouchtDelta, lastTouch;
int min_possition = 20;
int max_possition = 104;
int from2;

byte dimSet = 100;
MAX6675 ktc(ktcCLK, ktcCS, ktcSO);

int Tmp;
float tDelta, Delta1, taux;
float derive = 0;
byte HMIButton;
int set_tmp ; // 'Celsius ////////////
int spd ; //msec//////////////////////////
int pos2go, posStep;
int pos_old = 60;
int bipN;
int lastPosition;
int tangential,tmp1,tmp2;
//char msg[6];

int counter = 0;
String msg;
boolean moreWood = true;
Average<float> tmpAve(10);

///////////////////////////////////////////////////////
void setup() {
  /////////////////////////////////////////////////////
  Serial.begin(9600);
  Serial1.begin(9600);
  pinMode(buzzerPin, OUTPUT);
  bipN = 7;

  digitalWrite(buzzerPin, 0);
  EEPROM.get(0, min_possition);
  if (min_possition < 1)min_possition = 10;
  EEPROM.get(5, max_possition);
  if (max_possition < 1)max_possition = 180;
  EEPROM.get(10, set_tmp );
  if (set_tmp < 100)set_tmp = 250;
  EEPROM.get(15, spd );
  if (spd < 10) {
    spd = 100;
    EEPROM.put(15, spd );
  }
  spd = 100;
  EEPROM.get(20, from2);

  HMIPrint("page 0");
  HMIPrint("t0.txt=\"FOYER MK3.0\"");

  timerId1 = timer.setInterval(5000, takeReading);
  timerId2 = timer.setInterval(5000, printTemp);
  timerId3 = timer.setTimer(500, bip, 6);
  timerId4 = timer.setInterval(20000, TmpRoll);
  timerId5 = timer.setInterval(500, takeTEMP);
  HMIPrint("dims=80");
  HMIPrint("t0.txt=\" \"");
  HMIPrint("page 1");
  HMIPrint("t0.txt=\"Calibration\"");
  HMIPrint("t1.txt=\"Min:" + String(min_possition) + "\"");
  HMIPrint("t2.txt=\"Max:" + String(max_possition) + "\"");
  delayx(2000);
  HMIPrint("page 0");
  HMIPrint("s0.pco2=25388");
  //motor(0);
  //motor(255);

}


//////////////////////////////////////////////////////////////////////
void loop() {                                                       //
  //////////////////////////////////////////////////////////////////////
  timer.run();
  HMIButton = 0;
  HMIButton = touchscreen();

  if (HMIButton == 0x01) {
    calibration();
  }
  if (HMIButton == 0x0A) {
    // HMIPrint("dim=80");
    HMIPrint("page 0");
  }
}



///////////////////////////////////////////////////////////////////////////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////
void takeTEMP() {
  tmpAve.push(Tmp = ktc.readCelsius());
}


/////////////////////////////delay x///////////////////////////////////////////////////////////////
void delayx(int timer) {
  unsigned long t3 = 0;
  unsigned long t2 = millis();

  while (millis() - t2 < timer) {
    t3++;
    // timer.run();
  }
}
void TmpRoll() {

  tmp2 = tmp1;
  tmp1 = Tmp;
}

/////////////////////////////touchscreen///////////////////////////////////////////////////////////
int touchscreen() {
  static const byte numBytes = 32;
  static byte receivedBytes[numBytes];
  static byte numReceived = 0;
  static boolean recvInProgress = false;
  static byte ndx = 1;
  byte startMarker = 101;
  byte endMarker = 0xff;

  static byte rb;
  boolean newData;
  receivedBytes[0] = 0;
  HMIButton = 0;

  while (Serial1.available() > 0 ) { //&& newData == false) {
    rb = Serial1.read();
    if (rb != 0xff)    {
      Serial.print(rb, HEX); Serial.print(", ");
    }
    if (recvInProgress == true) {
      if (rb != endMarker) {
        receivedBytes[ndx] = rb;
        //Serial.print(ndx); Serial.print("= "); Serial.print(receivedBytes[ndx]); Serial.println("");
        ndx++;
        if (ndx >= numBytes) {
          ndx = numBytes - 1;
        }
      }
      else {
        receivedBytes[ndx] = '\0'; // terminate the string
        recvInProgress = false;
        numReceived = ndx;  // save the number for use when printing
        ndx = 1;
        newData = true;
        lastTouchtDelta = millis() - lastTouch;
      }
    }
    if (rb == 0x65) {
      receivedBytes[0] = rb;
      recvInProgress = true;
    }
  }
  delayx (100);
  //if (rb!=255)Serial.print(rb); Serial.println("< ");
  if (newData == true) {
    if (receivedBytes[0] == 0x65) {   //Puch Press Event  0x65
      //bipN = 1;

      Serial.println();
      Serial.print ("HMIButton= "); Serial.print (HMIButton);
      /*Serial.print ("Byte 1="); Serial.print(receivedBytes[1], DEC);
        Serial.print ("Byte 2="); Serial.print(receivedBytes[2], DEC);
        Serial.print ("Byte 3="); Serial.print(receivedBytes[3], DEC);
        Serial.print ("Byte 4="); Serial.print(receivedBytes[4], DEC);
        //Serial.print ("slider ="); Serial.println(slider);
      */
    }

    if (receivedBytes[0] == 0x65) {     //Puch Release Event

      HMIButton = receivedBytes[3];
      Serial.print("box="); Serial.print(HMIButton); Serial.println("");
      lastTouch = millis();
    }
    if (!dimSet) {
      HMIPrint("dims=60");
      dimSet = true;
    }
    newData = false;
  }
  return (HMIButton);
}

///////////////////////////print temp//////////////////////////////////////////////////////////////
void printTemp() {
  //Serial.print ("temp:"); Serial.println (Tmp);
  HMIPrint("");
  HMIPrint("t0.txt=\"" + String(Tmp) + "\"");
  //HMIPrint("add 3,2," + String(map(set_tmp, 0, 100, 0, 40)));

  HMIPrint("add 3,0," + String(map(Tmp, 0, 100, 0, 40)));

}
double scale(float input, float factor)
{
  double value = pow(input, factor);
  if (input < 0.0) value = -value;  // only adjust calculated factor when input is negative.
  return value;
}
/////////////////take reading and action///////////////////////////////////////////////////////////

void takeReading() {
  int  pourcent;
  int proportionnel;
  //Serial.println("Take Reading and Action");
  Tmp = tmpAve.mean();
  if ( Tmp > 500 || Tmp < 5) {                // max/min temperature
    pos2go = min_possition;
    timerId3 = timer.setTimer(1000, bip, 6);
    HMIPrint("t2.bco=YELLOW");
    HMIPrint("t2.pco=BLACK");
    HMIPrint("t2.txt=\"Temperature ANORMAL\"");
  }
  else if (Tmp < 25) {//COLD DOWN
    HMIPrint("t2.txt= \"Cold Down\"");
    pos2go = min_possition;
  }
  else if (Tmp > 75) {
    HMIPrint("t2.bco=BLACK");
    HMIPrint("t2.pco=WHITE");
    tDelta = set_tmp - Tmp;
    tDelta = constrain(tDelta, -30, 30);
    proportionnel = map(tDelta, -30, 30, min_possition, max_possition);
    tangential =  scale(tDelta/7.00,2) -scale((tmp1 - tmp2),2)     ;
    Serial.print (", tang= "); Serial.println (tangential);

    pos2go = proportionnel + tangential;
    pos2go = constrain(pos2go, min_possition, max_possition);

    Serial.print (", tmp= "); Serial.print (Tmp);
    Serial.print (", tDelta= "); Serial.print (tDelta);
    Serial.print (", tmp1/2= "); Serial.print (tmp1);Serial.print (" / ");Serial.print (tmp2);

    Serial.print (", min/max_possition= "); Serial.print (min_possition);
    Serial.print (" / "); Serial.print (max_possition);
    Serial.print (", pos2go= "); Serial.print (pos2go);
    Serial.println (", ");

    if ( Tmp < 180 && moreWood == true) {
      bipN = 1;
      moreWood = false;
      timerId3 = timer.setTimer(1000, bip, 2);
      HMIPrint("t2.txt= \"Add Wood\"");
      Serial.print("[108]");
    }
    if ( Tmp > 190 && moreWood == false) {
      moreWood = true;
    }
  }


  pourcent = map (pos2go, min_possition, max_possition, 0, 200);
  pourcent = constrain(pourcent, 0, 200);
  HMIPrint("h0.val=" + String(pourcent));
  HMIPrint("add 3,1," + String(pourcent));
  motor (constrain(pos2go, min_possition, max_possition))
  ;

}
///////////////////////////////HMI Print////////////////////////////////////////////////////////////

void HMIPrint(String msg2) {
  Serial1.print("dim=80");
  Serial1.print ("\xFF\xFF\xFF");
  Serial1.print ("\xFF\xFF\xFF");
  //delayx(50);
  Serial1.print(msg2);
  Serial1.print("\xFF\xFF\xFF");
  //Serial.println(msg2);
  delayx(50);
}
//////////////////////////////mOTOR/////////////////////////////////////////////////////////////////
void motor ( int go2) {
  constrain(go2, 0, 255);
  //Serial.println("motor");
  if (from2 != go2) {
    Motor_inTake.attach(motor_pin);
    if (from2 < go2)  {
      HMIPrint("t2.txt=\"" + String(from2) + " >> " + String(go2) + "\"");
      for ( posStep = from2; posStep <= go2; ++posStep) {
        Motor_inTake.write(posStep);
        delayx (spd);// speed
      }
    }
    else {
      HMIPrint("t2.txt=\"" + String(go2) + " << " + String(from2) + "\"");
      //Serial.println("motor 3");
      //Serial.println(spd);
      for ( posStep = from2; posStep >= go2; --posStep) {
        Motor_inTake.write(posStep);
        delayx (spd);//speed
        //Serial.println("motor 1");
      }
    }
    Motor_inTake.detach();
  }
  timerId4 = timer.setTimer(2000, clearHMIt2, 1);
  //HMIPrint("t2.txt=\" \"");
  //Serial.println("motor 2");
  from2 = go2;
  EEPROM.put(20, from2);

}
/////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////
void clearHMIt2() {
  HMIPrint("t2.txt=\" \"");
  //Serial.println("clr screen");
}

///////////////////////////////calibration//////////////////////////////////////////////////////////
void calibration() {
  Serial.println("calibration");
  spd = 30;
  HMIPrint("page 1");
  HMIPrint("t0.txt=\"Set Temp.\"");
  HMIPrint("t1.txt=\"Temp:" + String(set_tmp) + "\"");
  HMIPrint("t2.txt=\" \"");
  HMIButton = 0;


  while (HMIButton != 0x09 && HMIButton != 0x0A) {
    HMIButton = touchscreen();
    if (HMIButton == 0x06) {
      set_tmp += 5;
      // // HMIPrint("dim=80");
      HMIPrint("t1.txt=\"Temp:" + String(set_tmp) + "\"");
    }
    if (HMIButton == 0x08) {
      set_tmp -= 5;
      // // HMIPrint("dim=80");
      HMIPrint("t1.txt=\"Min:" + String(set_tmp) + "\"");
    }
  }
  if (HMIButton == 0x0A)return;
  HMIPrint("t0.txt=\"Set Close\"");
  HMIPrint("t1.txt=\"Min:" + String(min_possition) + "\"");
  HMIButton = 0;



  motor (min_possition);
  while (HMIButton != 0x09 && HMIButton != 0x0A) {
    HMIButton = touchscreen();
    if (HMIButton == 0x06) {
      min_possition += 5;
      HMIPrint("t1.txt=\"Min:" + String(min_possition) + "\"");
      motor (min_possition);
    }
    if (HMIButton == 0x08) {
      min_possition -= 5;
      HMIPrint("t1.txt=\"Min:" + String(min_possition) + "\"");
      motor (min_possition);
    }
  }
  if (HMIButton == 0x0A)return;


  EEPROM.get(5, max_possition);
  HMIPrint("t0.txt=\"Set Open\"");
  HMIPrint("t1.txt=\"Max:" + String(max_possition) + "\"");
  motor (max_possition);

  HMIButton = 0;

  while (HMIButton != 0x09) {
    HMIButton = touchscreen();
    if (HMIButton == 0x06) {
      max_possition += 5;
      HMIPrint("t1.txt=\"Max:" + String(max_possition) + "\"");
      motor (max_possition);
    }
    if (HMIButton == 0x08) {
      max_possition -= 5;
      HMIPrint("t1.txt=\"Max:" + String(max_possition) + "\"");
      motor (max_possition);
    }
  }
  EEPROM.get(15, spd);
  HMIPrint("t0.txt=\"Set Speed\"");
  HMIPrint("t1.txt=\"Speed:" + String(spd) + "\"");
  motor (max_possition);

  HMIButton = 0;

  while (HMIButton != 0x09) {
    HMIButton = touchscreen();
    if (HMIButton == 0x06) {
      spd += 5;
      HMIPrint("t1.txt=\"Speed:" + String(spd) + "\"");

    }
    if (HMIButton == 0x08) {
      spd -= 5;
      HMIPrint("t1.txt=\"Sped:" + String(spd) + "\"");
      motor (max_possition);
    }
  }
  EEPROM.put(0, min_possition);
  EEPROM.put(5, max_possition);
  EEPROM.put(10, set_tmp );
  EEPROM.get(15, spd );
  HMIPrint("t0.txt=\"Saved\"");
  HMIPrint("t1.txt=\" \"");
  HMIPrint("t2.txt=\" \"");
  HMIButton = 0;
  while (HMIButton != 0x0A) {
    HMIButton = touchscreen();
  }
  HMIButton = 0;
  HMIPrint("page 0");
  timer.restartTimer(timerId1);
  timer.restartTimer(timerId2);
  timer.restartTimer(timerId3);
  timer.restartTimer(timerId4);
  Serial.println("calibration completed");
}

/////////////////////////////////////////////////////////////////////////////////////////////////////
//                               BIP BIP
/////////////////////////////////////////////////////////////////////////////////////////////////////

void bip() {
  digitalWrite (buzzerPin, !digitalRead(buzzerPin));
}
