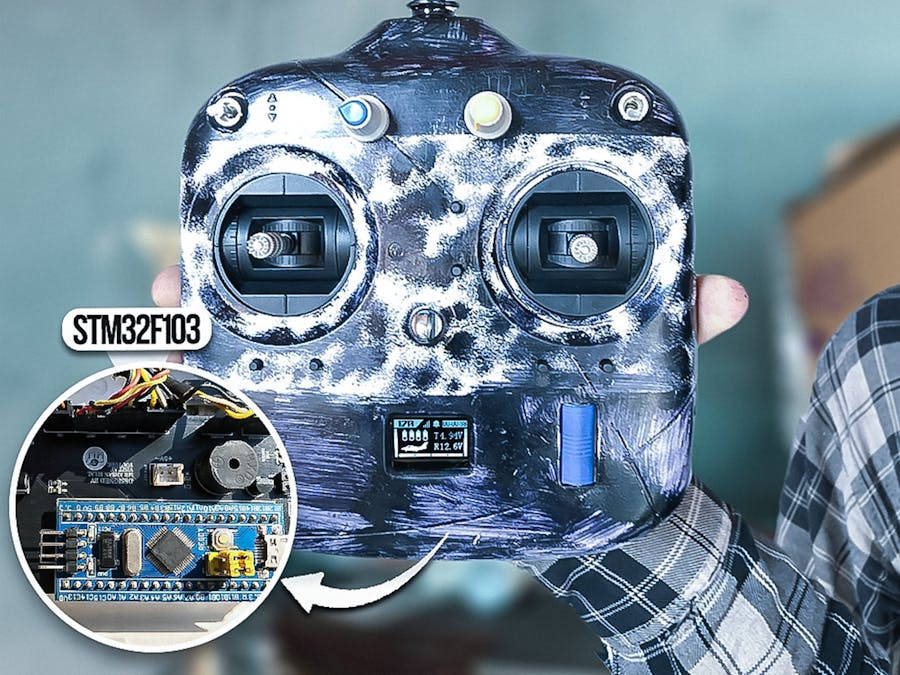

The 8-channel RC transmitter and receiver system crafted for the PCBWay 6th Contest is a highly intricate and technologically advanced solution tailored for remote-controlled applications. By harnessing the capabilities of the STM32F103C8T6 microcontrollers, NRF24L01 wireless communication modules, a 0.96-inch OLED display, buzzer, dual pots, dual switches, resistors, capacitors, and other key components, this project offers a sophisticated and feature-rich platform for hobbyists and RC enthusiasts.
🛠️ In this comprehensive guide, we'll walk you through the process of creating a fully functional RC control system from scratch. Learn how to harness the power of STM32 microcontrollers and RF24L01 modules to design a customizable and reliable remote control setup for your drones, planes, cars, and more.
Transmitter PPM Output:This diy transmitter is capable of giving ppm signal output through aux port to play any pc fpv or simulator with this.To enable this option you have to go to output setting on transmitter oled menu and then you have to turn on the ppm output.
Note:When you are using this transmitter with receiver.Makesure to turn off the ppm output.Because its high priority signal.
Receiver Output Signals:The receiver that I made is capable of giving 8 CH PWM, PPM and also SBUS signal.You can use this receiver with rc car, drones and aircraft.
Material for Transmitter:STM32:https://bit.ly/3ODReqC
NRF24L01 GT24 Mini:https://bit.ly/3HTMQA0
E11 ENC:https://bit.ly/3UDggKq
0.96 OLED:https://bit.ly/49arquy
10k resistance(smd):https://bit.ly/3SAMR0D
1k resistance(smd):https://bit.ly/3SAMR0D
100nf cap(smd):https://bit.ly/3ODT22S
Buzzer:https://bit.ly/3uru93D
SS8050/bc547 transistor:https://bit.ly/487k8q0
AMS117(3.3v reg):https://bit.ly/497yk3N
10uF cap:https://bit.ly/3SzbI4Y
Male Headers:https://bit.ly/3uxOzrJ
Material for Receiver:Note: You have to desolder the components from the stm32f103c8t6 development board and then place n solder these smd components to receiver board.
STM32:https://bit.ly/3ODReqC
NRF24L01 GT24 Mini:https://bit.ly/3HTMQA0
Male Headers:https://bit.ly/3uxOzrJ
AMS117:https://bit.ly/497yk3N
10uF cap:https://bit.ly/3SzbI4Y
100nf cap(smd):https://bit.ly/3ODT22S
Binding:You have turn on both the transmitter and receiver.Then you have to press reset button of receiver and then the receiver will automatically bind to the transmitter.
Join DIY TECH DEEPLY for more cutting-edge DIY electronics projects!
🚁 Ready to revolutionize your remote control experience? Hit that 'Subscribe' button, give this video a thumbs up, and share it with fellow DIY enthusiasts. Let's embark on a journey of innovation with DIY TECH DEEPLY! 💪🎥
SCHEMATIC OF TXTo upload the firmware into this transmitter and receiver.First you need any type of usb to serial converter.In this time I am CH340 usb serial converter.
Then you need to connect the usb serial converter to transmitter and receiver according to this diagram.
Transmitter
Receiver
Software
After making the connection of usb serial converter to transmitter and receiver.You have to download and install this software.
Software Link:https://www.st.com/en/development-tools/flasher-stm32.html#get-software
After installing the software
Follow Steps:
- plug the usb serial converter to pc.
- Press Reset button which are located on stm32.Very important.
- Select the com port.
- Click on next and click again next icon.
- Select Erase icon on top.
- Now click on next and the software will delete its previous data.
- Click on back icon and select Download to device icon.
- Click on its three dots icon and select the Hex file (Download from Down Below) where it is located.
- Then click on next icon and the code will uploaded to device within 15 secs.
