Control Your Home Appliances Using Arduino and Relay

Hello everyone, In this Tutorial we will be using Arduino And Relay module to control home appliances.

• Basics of Relays.
• Connecting Relays with Arduino.
• Controlling AC appliances using Relays.

How it works:

• The relay uses an electromagnet to mechanically switch electric appliances.
• A relay can be operated by a relatively small electric current that can turn on or off a much larger electric current.
• Using relays is safe as there is no any physical contact between Arduino and AC.

Gather the Parts

In order to Control Your Home Appliances Using Arduino and Relay we'll need:

• An Arduino UNO
• A 5V Relay module
• Female jumper wires

Wiring

Hookup all the components according to the circuit diagram shown above.

In the above wiring diagram, The pins VCC, GND and IN on the Relay module may vary depending on your Relay module. So, Refer to the data-sheet of your Relay.

For, connecting the AC bulb to the relay properly:

• Connect live wire from AC wall outlet to Common port on relay and one terminal of AC bulb to Normally open terminal of Relay.
• Then, Connect the other terminal of AC bulb to GND on the AC wall outlet.

Take proper precautions and care while connecting any wire to mains.

Arduino Sketch

Once you have hooked up everything properly upload the Relay.ino sketch to your arduino.

Unlike LEDs, Relays closes the circuit whenever the signal or input pin is connected to GND. (This may vary for other custom made relay modules.)

So, "digitalWrite(13, LOW);" turns on the bulb. While, "digitalWrite(13, HIGH);" turns off the bulb.

void setup() {
pinMode(13, OUTPUT);
}
void loop() {
digitalWrite(13,
LOW);
delay(5000);              // wait for 5 seconds
digitalWrite(13,
HIGH);
delay(5000);              // wait for 5 seconds
}

The above code turns on the bulb for 5 sec and turns it off for the next 5 sec.

NEXTPCB PCB MANUFACTURER COMPANY

NextPCB was founded in 2004 and has since established itself as a turnkey PCB manufacturing and assembly factory for prototype quantities as well as small-volume to big-volume production.

Why NEXTPCB?

NextPCB provides one-stop services for PCB with professional PCB manufacturing practices fulfilling the advanced design requirements. The company provides the speed of PCB and assembly manufacturing with efficient collaboration and quality assurance.

NextPCB provides a variety of PCBs with optimistic capabilities. Starting from the single-layer they provide PCB services up to 20 layers, with a board thickness of 0.6mm to 2.5mm with a tolerance of 10% and much more capabilities. Check out the manufacturing capabilities of NextPCB for better production of your PCB.

Step 4: Done

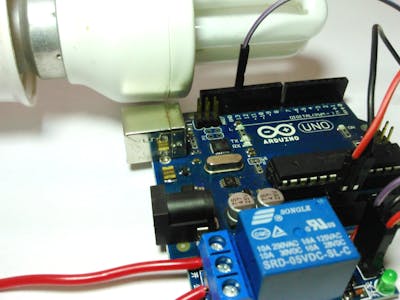

Now just power up your Arduino and the Relay to see your AC bulb turning on and off.
