Bladeless Fan

A desktop "bladeless" fan that uses a 1100KV brushless motor and it's powered by 12 V DC.

IntermediateFull instructions providedOver 1 day1,167

Things used in this project

Hardware components

Brushless Motor 1100KV

ESC 20 A

Digispark ATtiny85

Potentiometer 1 - 100 kOhm

Female 12 mm 12 V socket

8 mm round adhesive bumper

M2 x 6 mm screw

9 of them are countersunk

M3 x 6 mm screw

Small gauge wire

Silicone, superglue or similar

12 V DC PSU

2 - 3 A

Story

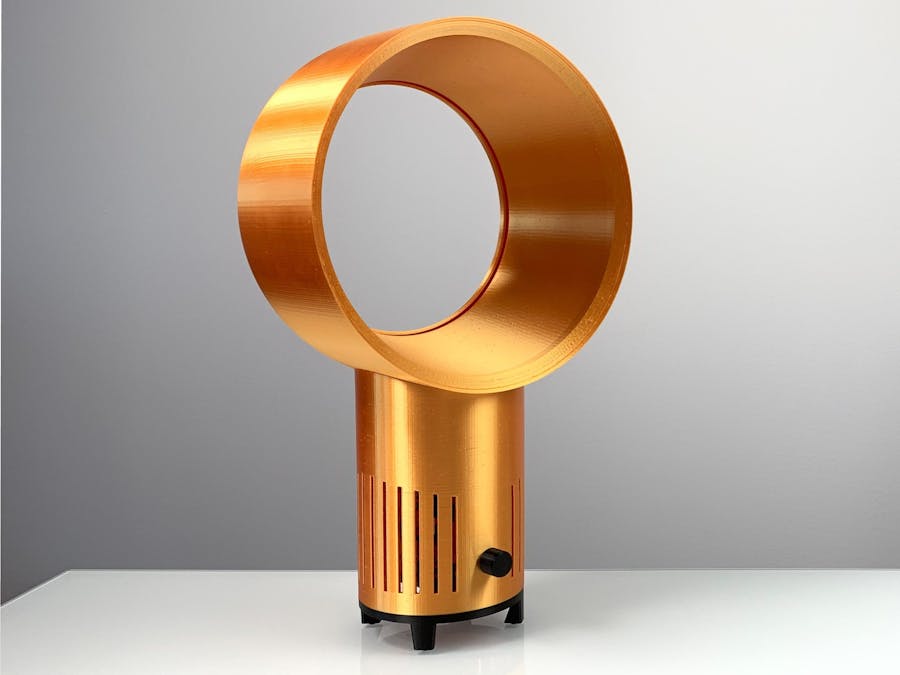

This is a replica of a popular "bladeless" fan that utilizes a unique airfoil-shaped ramp to increase airflow. It uses a 1100KV brushless motor and a 12 V DC PSU.

Video of the build

Schematics

Code

Credits

Elite Worm

7 projects • 3 followers

I make projects involving electronics, 3D printing and more. YouTube.com/c/EliteWorm
