Published January 11, 2022

Telegram Supported Current Probe

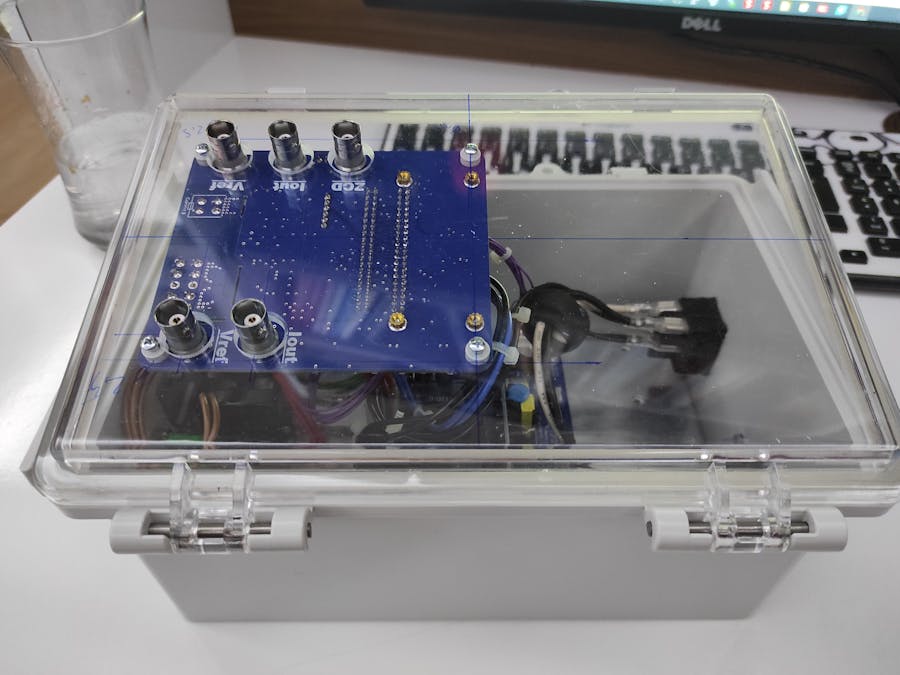

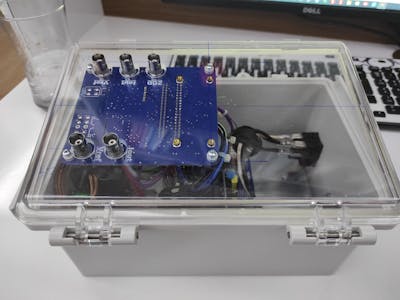

This is an isolated current probe to measure AC or DC current of load. It has two seperated channel for high and low voltage measurement.

IntermediateWork in progress10 hours169

Things used in this project

Hardware components

PCBWay Custom PCB

Altınkaya Electronic Enclosure

Software apps and online services

Story

https://www.hackster.io/FiDeNet/raspberry-pi-current-probe-with-record-capability-2dbd9d

Project schematics are described at the link above. I try to develop software and increase accuracy of current measure process.

Telegram support is added to project. So there is no need to physical touch to box for start or end measurement. Measurement process can be controlled by using RF module too.

Here is some commands to use this probe:

/at

Starts high voltage probe. This probe is connected to AC main supply and power plug. It starts to take measurement and wait about 100ms and then close relay and powers the load. So inrush current of the load is able to be measured.

/ap

Stops high voltage current measurement.

/dt

Starts low voltage probe. This probe is connected to born jack at rear of the box. Like AC measure process, this command starts measurements and wait 100ms and close relay and connects sensor to born jacks. By the way inrush current of load can be measured.

/dp

Stops low voltage current measurement.

/summary

Gives a summary of measure process.

The horizontal line of chart is sample count. The count is useful for /range command. The load at this measurement is an three resistant eletric heater (2.7KW/h electric heater. One resistant is approx 900Watts). At beginning three of them is on, then two resistants are on, one resistant and all the rasistants are off. Then one, two and three are on.

/range:

Specify a range of measure process. This command can take one or two arguments. begin=x parameter points to beginning of data to analyze, end=y parameter points to end of data to analyze.

usage:

/range begin=1000 # from the 1000th count to end

/range end=2000 # from beginning to 2000th count

/range begin=1000, end=2000 # data that between 1000th and 2000th

I want to develop the count (samples) in seconds. I can take about 1500 samples per second. I want to increase this count up to 10.000 per second. So I can analyze AC voltage more precision.

I can't measure neither AC main voltage nor low voltage channel. Beacuse I didn't have any component to measure voltage both sides. There is isolation problems while working under high side. On low voltage side, need extra connections for battery or power source. Input range of low voltage is fairly wide. Power source might supply from a few volts to 100 volts. At second version of this project I will add ability to measure voltage on both high and low voltage.

Scope of the current is made by sample count. I will change horizontal numbers (such as 0-200) to the range where data is taken from.

Example:

when the command below is given horizontal line of chart starts from 0 to 1000.

/range begin=5000, end=6000

After revision this numbers will start from 5000 to 6000. So I can know where I am looking. Second or third query of chart is more easy.

#Bismillahirrahmanirrahim

# coding=<utf-8>
from periphery import SPI
from datetime import datetime
from time import sleep
from periphery import GPIO
import serial
import os
from sabit import sabit
import telepot
from telepot.loop import MessageLoop
from matplotlib import pyplot as plt
# numpy as np
#import pandas as pd

def readLan():
    wlan0Mac=""
    wlan0Ip=""

    ipAddr=""
    mac=""

    data = os.popen("ifconfig wlan0").read()
    #print(data)
    dataP = data.split("\r")
    for i in dataP:
      #print("Data: {}".format(i))
      if "wlan0" in i:
          #print("wlan0")
          lines=i.split("\n")
          for text in lines:
            if "ether" in text:
              mac=text.lstrip().split(" ")[1]
          #print("mac: {}".format(mac))
          wlan0Mac=mac
          wlan0Ip=""
          for text in lines:
            if "inet " in text:
              ipAddr=text.lstrip().split(" ")[1]
          #print("ipAddr: {}".format(ipAddr))
          if ipAddr!="":
            wlan0Ip=ipAddr
    return([wlan0Mac, wlan0Ip])

def readTxt(file):
    deger = []
    with open(file,"r+") as dosya:
        content = dosya.read()
        #print(len(content))
        #print(type(content))

        data = content.split("\n")
        print(len(data))
        for i in range(7):
            data.pop(0)
        data.pop(-1)
        for i in data:
            deger.append(i.split("\t\t"))
        #print(len(deger))
        #print(len(deger[0]))

        return deger

    #return data
def makeSummary(chatId, begin=0, end=0 ):
    data = readTxt(sabitler.file)

    value = []
    zaman = []
    zcd = []
    if begin > 0 and end > 0:
        data = data[begin:end]
    elif begin > 0:
        data = data[begin:]
    elif end > 0:
        data = data[:end]

    for i in data:
        x, y, z = i
        value.append(float(x))
        zaman.append(y)
        zcd.append(1 * int(z))

    fig, ax = plt.subplots( )
    ax.plot(value)
    ax.plot(zcd)
    #fig.show()
    fig.savefig(sabitler.telepotImg)
    plt.close(fig)
    #bbox_inches='tight')


    bot.sendPhoto(messageId, photo = open(sabitler.telepotImg, "rb"),caption="Telegram id:{} Current Probe Summary".format(messageId))
    #plt.show()

# telegram Bot
def handle(msg):
    chatId = msg['chat']['id']
    command = msg['text']

    global messageId
    global sendSummary
    global begin
    global end
    global readCh
    global readEn
    global compute
    global telegramData
    global telegramMessage



    messageId = chatId
    print ("Got command: {} from {}".format( command, chatId))


    if command.startswith("/hi"):
        #bot.sendDocument(chat_id, document=open("xls/query.xlsx", "rb"), caption="query.xlsx")
        #bot.sendPhoto(chat_id,photo=open(photoName, "rb"),caption="Telegram id:{} Query".format(chat_id))
        bot.sendMessage(chatId, "Merhaba")

    elif command.startswith("/summary"):
        sendSummary=True

    elif command.startswith("/at"):
        telegramData = True
        telegramMessage = "at"
        bot.sendMessage(chatId, "High Voltage Current Measure Started")
    elif command.startswith("/ap"):
        telegramData = True
        telegramMessage = "ap"
        bot.sendMessage(chatId, "High Voltage Current Measure Stopped")
    elif command.startswith("/dt"):
        telegramData = True
        telegramMessage = "dt"
        bot.sendMessage(chatId, "Low Voltage Current Measure Started")
    elif command.startswith("/dp"):
        telegramData = True
        telegramMessage = "dp"
        bot.sendMessage(chatId, "Low Voltage Current Measure Stopped")
    elif command.startswith("/shutdown"):
        bot.sendMessage(chatId, "System is going to shutdown a bit later...")
        sleep(1)
        shutOff()
    elif command.startswith("/help"):
        text = """CurrPrb Telegram Komutları:
/hi                   # selamlama
/summary              # Son Kaydın Özeti
/range begin=x, end=y # x'den y'ye Kadar Kayıtları Göster
/at                   # High Voltage Ölçüm Başlat
/ap                   # High Voltage Ölçüm Bitir
/dt                   # Low Voltage Ölçüm Başlat
/dp                   # Low Voltage Ölçüm Bitir
/ip                   # Network Bilgileri
/shutdown             # Sistemi kapat"""
        bot.sendMessage(chatId, text)

    elif command.startswith("/ip"):
        netw = readLan()
        text = "IP settings:\n    MAC: {}\n    IP: {}\n".format(netw[0],netw[1])
        bot.sendMessage(chatId, text)


    elif command.startswith("/range "):
        params = command.split(",")
        begin=0
        end=0
        if len(params) > 0:
            for i in params:
                if "begin" in i:
                    begin=int(i.split("=")[1])
                if "end" in i:
                    end=int(i.split("=")[1])

            sendSummary=True


#definitions, Functions etc
def shutOff():
    os.system("{} {}".format("shutdown", "-h now"))

def measure(ch):
    msg = [0x06,ch,0x00]
    rsp = spi.transfer(msg)
    data = ((rsp[1]*256 + rsp[2]) )
    #print(data)
    return data

def sayHi():

    text="Hi\r\n"
    ser.write(text.encode("utf-8"))


def recordIt(ch, values, ref, zcdState, stt, stp):
    if ch=="ch3":

        with open(dosya,"w") as rec:
            text="Current Probe Project\r\n"
            rec.write(text)
            text="rec Started at: {}\r\n".format(stt)
            rec.write(text)
            text="rec stopped at:{}\r\n".format(stp)
            rec.write(text)
            text="RefLevel {}\r\n".format(ref)
            rec.write(text)
            text="Channel: {}\r\n".format(ch)
            rec.write(text)


            text="CH   Time    ZCD\r\n"
            rec.write(text)
            for x, y, z in values:
                if z:
                    z = 1
                else:
                    z = 0
                text="{}\t\t{}\t\t{}\r\n".format((x - ref)*(vRef/4096)/0.08, y, z)
                rec.write(text)
        print("recorded\r\n")

    elif  ch=="ch0":

        with open(dosya,"w") as rec:
            text="Current Probe Project\r\n"
            rec.write(text)
            text="rec Started at: {}\r\n".format(stt)
            rec.write(text)
            text="rec stopped at:{}\r\n".format(stp)
            rec.write(text)
            text="RefLevel {}\r\n".format(ref)
            rec.write(text)
            text="Channel: {}\r\n".format(ch)
            rec.write(text)


            text="CH   Time    ZCD\r\n"
            rec.write(text)
            for x, y, z in values:
                if z:
                    z = 1
                else:
                    z = 0
                text="{}\t\t{}\t\t{}\r\n".format((x - ref)*(vRef/4096)/0.026666, y, z)
                rec.write(text)
        print("recorded\r\n")




#registers, counters etc
ac = 0
dc = 1
start = "st"
stop = "sp"
vRef = 3.448


ch0 = 0x00
ch1 = 0x40
ch2 = 0x80
ch3 = 0xC0
values=[]
cnt=0
dosya = "log/log.txt"
data = ""
readEn = False
readCh = 0
rawData = []
compute = True

telegramData = False
telegramMessage = ""
#configurations
spi = SPI("/dev/spidev0.0", 3, 2000000)
ser = serial.Serial()
ser.baudrate = 9600
ser.port = '/dev/ttyS0'
ser.open()

print("Ser state:{}\r\n".format(ser.is_open))

conf = GPIO("/dev/gpiochip0", 5, "out")
en = GPIO("/dev/gpiochip0", 6, "out")
rlHighV = GPIO("/dev/gpiochip0", 23, "out")
rlLowV = GPIO("/dev/gpiochip0", 24, "out")

zcd = GPIO("/dev/gpiochip0", 27, "in")

#HMTRP-433 Configure
en.write(False)
conf.write(True)


sabitler=sabit()
bot = telepot.Bot(sabitler.token)
MessageLoop(bot, handle).run_as_thread()
messageId = ""
sendSummary = False
begin = 0
end = 0
sayHi()

while(True):

    if sendSummary==True:

        makeSummary(chatId = messageId, begin=begin, end = end)
        sendSummary=False
        begin = 0
        end = 0


    if not readEn:
        refHighV = measure(ch2)
        refLowV = measure(ch1)

    if ser.in_waiting > 0 or telegramData == True:
        if ser.in_waiting > 0:
            raw = ser.read(ser.in_waiting)
            data = data + raw.decode("utf-8")
        elif telegramData == True:
            telegramData = False
            data = telegramMessage

        if "at" in data:
            readCh = ac
            readEn = True
            compute = False
            data = ""
            stt = datetime.now()
            cnt=0
            print("High Voltage rec Started")

        if "ap" in data:
            readCh = ac
            compute = True
            data = ""
            stp = datetime.now()
            print("High Voltage rec Stopped")

        if "dt" in data:
            readCh = dc
            readEn = True
            compute = False
            data = ""
            stt = datetime.now()
            cnt=0
            print("Low Voltage rec Started")

        if "dp" in data:
            readCh = dc
            compute = True
            data = ""
            stp = datetime.now()
            print("Low Voltage rec Stopped")

    if readEn:
        if readCh == ac:

            raw = measure(ch3)
            mt = datetime.now()
            zcdState=zcd.read()
            values.append([raw, str(mt), zcdState])
            cnt += 1
            if cnt == 100:
                rlHighV.write(True)

            if compute == True:
                readEn = False
                rlHighV.write(False)
                recordIt("ch3",values,refHighV,zcdState, stt, stp)
                values=[]
                compute = False

        if readCh == dc:

            raw = measure(ch0)
            mt = datetime.now()
            values.append([raw, str(mt), 0])
            cnt += 1
            if cnt == 100:
                rlLowV.write(True)

            if compute == True:
                readEn = False
                rlLowV.write(False)
                recordIt("ch0",values,refLowV,"", stt, stp)
                values=[]
                compute = False
print("finished")
