LED Controlled by 3D Gesture Sensor

I tried controlling the display of flexible LED matrix with 3D gesture sensor.

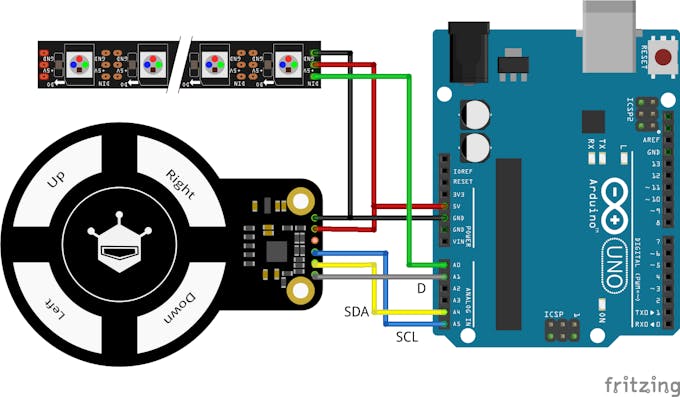

Configuration

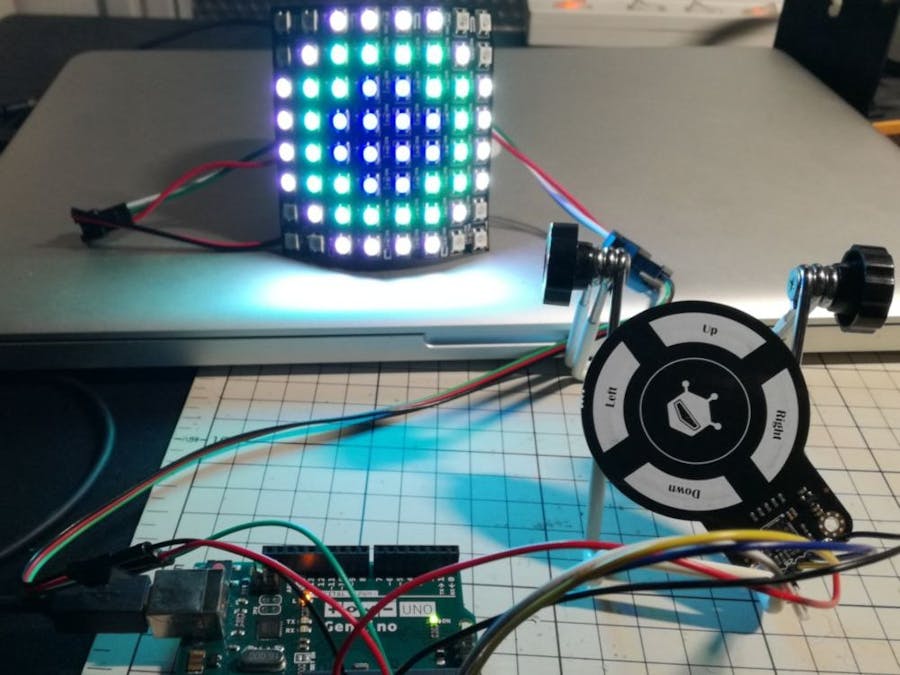

Display the eye on the LED matrix and move with the 3D gesture sensor.

Flexible 8x8 RGB LED Matrix

It has a 8x8 full color LED (NeoPixel) and soft by flexible board. The Arduino library for Neopixels is located in the following.

https://github.com/adafruit/Adafruit_NeoPixel

Please refer below for product details.

https://www.dfrobot.com/wiki/index.php/Gravity:_Flexible_8x8_RGB_LED_Matrix_SKU:_DFR0461

3D Gesture Sensor

Five electrodes are arranged in the up, down, left, right and middle. Gesture is sensed by changes in electrostatic capacitance of electrodes due to hand approach.

The Arduino library for the 3D Gesture Sensor is located in the following.

https://github.com/DFRobot/DFRobot_Gesture

This gesture sensor detects clockwise/counterclockwise rotation and movement directions (up, down, left, right) using program example "_3D_Gesture_Test.ino".

Please refer below for product details.

https://www.dfrobot.com/wiki/index.php/3D_Gesture_Sensor_Mini_SKU:_SEN0202

Arduino Programming

Display the eyeball on the LED matrix, move the eyes right and left with the left and right sensing of the gesture sensor, open and close the eyelids by vertical sensing. The pupil faces the front in clockwise or counterclockwise sensing.

LED Array:

Code:

#include <Adafruit_NeoPixel.h>
#include <DFRobot_Gesture.h>
#include <Wire.h>
int sensePin= A1;
unsigned char cmd;
DFRobot_Gesture myGesture;
#define DIN A0
Adafruit_NeoPixel led = Adafruit_NeoPixel(64, DIN, NEO_GRB + NEO_KHZ800);
int LR = 5;
int eyelid = 0;
int whiteNum = 52;
int blackNum = 20;
int pupilNum = 12;
//white eye
int whiteLED[52] = { 2,  3,  4,  5,  9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31,
                         32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 49, 50, 51, 52, 53, 54, 58, 59, 60, 61};
//black eye
int blackLED[11][20] = {{50, 51, 52, 53, 58, 61, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {42, 43, 44, 45, 49, 50, 53, 54, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {34, 35, 36, 37, 41, 42, 45, 46, 49, 54, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {26, 27, 28, 29, 33, 34, 37, 38, 41, 46, 54, 49, 58, 61, 61, 64, 64, 64, 64, 64},
                             {18, 19, 20, 21, 25, 26, 29, 30, 33, 38, 41, 46, 49, 50, 53, 54, 58, 59, 60, 61},
                             {10, 11, 12, 13, 17, 18, 21, 22, 25, 30, 33, 38, 41, 42, 45, 46, 50, 51, 52, 53},
                             { 2,  3,  4,  5,  9, 10, 13, 14, 17, 22, 25, 30, 33, 34, 37, 38, 42, 43, 44, 45},
                             { 2,  5,  9, 14, 17, 22, 25, 26, 29, 30, 34, 35, 36, 37, 64, 64, 64, 64, 64, 64},
                             { 9, 14, 17, 18, 21, 22, 26, 27, 28, 29, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             { 9, 10, 13, 14, 18, 19, 20, 21, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             { 2,  5, 10, 11, 12, 13, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64}};
//pupil
int pupilLED[11][12] = {{59, 60, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {51, 52, 58, 59, 60, 61, 64, 64, 64, 64, 64, 64},
                             {43, 44, 50, 51, 52, 53, 58, 59, 60, 61, 64, 64},
                             {35, 36, 42, 43, 44, 45, 50, 51, 52, 53, 59, 60},
                             {27, 28, 34, 35, 36, 37, 42, 43, 44, 45, 51, 52},
                             {19, 20, 26, 27, 28, 29, 34, 35, 36, 37, 43, 44},
                             {11, 12, 18, 19, 20, 21, 26, 27, 28, 29, 35, 36},
                             { 3,  4, 10, 11, 12, 13, 18, 19, 20, 21, 27, 28},
                             { 2,  3,  4,  5, 10, 11, 12, 13, 19, 20, 64, 64},
                             { 2,  3,  4,  5, 11, 12, 64, 64, 64, 64, 64, 64},
                             { 3,  4, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64}};
//eyelid
int eyelidNum[8] = {0,4,8,14,20,28,36,44};
int eyelidLED[56] = {23, 24, 39, 40, 22, 25, 38, 41,  9, 21, 26, 37, 42, 54, 10, 20, 27, 36, 43, 53,  5, 11,
                    19, 28, 35, 44, 52, 58,  4, 12, 18, 29, 34, 45, 51, 59,  3, 13, 17, 30, 33, 46, 50, 60};
void setup(){
 Wire.begin();        // join i2c bus (address optional for master)
 Serial.begin(115200);  // start serial for output
 pinMode(sensePin, INPUT);
 led.begin();
 led.setBrightness(100); //LED brightness 0-255
 blink(LR, eyelid);
}
void loop(){
 if(digitalRead(sensePin)==0){
   myGesture.I2C1_MasterRead(md.buf,26,0x42); //The address is:0x42
   cmd = myGesture.mgcProcMsg();     //process the message
   if(cmd != GI_NOGESTURE ){
     switch(cmd){
       case GI_FLICK_R:
         Serial.println("RIGHT");
         //Move the eye right
         for(int i = LR; i <= 10; i++){
           blink(i, eyelid);
           delay(100);
         }
         LR = 10;
         break;
       case GI_FLICK_L:
         Serial.println("LEFT");
         //Move the eye left
         for(int i = LR; i >= 0; i--){
           blink(i, eyelid);
           delay(100);
         }
         LR = 0;
         break;
       case GI_FLICK_D:
         Serial.println("DOWN");
         //Eyelid close
         for(int i = eyelid; eyelid <= 8; eyelid++){
           blink(LR, eyelid);
           delay(100);
         }
         eyelid = 8;
         break;
       case GI_FLICK_U:
         Serial.println("UP");
         //Eyelid open
         for(int i = eyelid; eyelid >= 0; eyelid--){
           blink(LR, eyelid);
           delay(100);
         }
         eyelid = 0;
         break;
       case GI_AIRWHEEL_CW://Clockwise in circles
         Serial.println("CW");
         //Return eye to the front
         Return();
         break;
       case GI_AIRWHEEL_CCW://Counterclockwise circles
         Serial.println("CCW");
         //Return eye to the front
         Return();
         break;
       default: break;
       }
     }
   }
}
void blink( int LR, int eyelid) {
 if (eyelid != 8){
   //white eye
   for(uint16_t i=0; i<whiteNum; i++) {
     led.setPixelColor(whiteLED[i], led.Color(66, 66, 66));
   }
   //black eye
   for(uint16_t i=0; i<blackNum; i++) {
     led.setPixelColor(blackLED[LR][i], led.Color(0, 177, 55));
   }
   //pupil
   for(uint16_t i=0; i<pupilNum; i++) {
     led.setPixelColor(pupilLED[LR][i], led.Color(0, 0, 66));
   }
   //eyelid
   for(int i=0; i < eyelidNum[eyelid]; i++) {
     led.setPixelColor(eyelidLED[i], 0);
   }
 } else if (eyelid == 8){
   led.clear();
 }
 led.show();
}
void Return() {
 if(LR == 0){
   for(int i = LR; i <= 5; i++){
     blink(i, eyelid);
     delay(100);
   }
 }
 if(LR == 10){
   for(int i = LR; i >= 5; i--){
     blink(i, eyelid);
     delay(100);
   }
 }
 LR = 5;
}

Operation
