Arduino Simulator - Simulate Simon game on ATTiny85

Learn how to create and play with the Wokwi Arduino simulator by creating a Simon game using 4 LEDs, 4 Switches and a tiny ATtiny85 😃

BeginnerShowcase (no instructions)2,519

Arduino Simulator - Simulate Simon game on ATTiny85

Things used in this project

Hardware components

Microchip ATtiny85

DIYables LED

DIYables Button

DIYables Jumper Wires

DIYables Starter Kit

Optional

Story

Introduction

You will be able to create and play with the Simon game over a virtual Arduino and buttons. This is made possible by the Wokwi Arduino simulator. In this project, you will learn how to add components, get the code for the Simon game, edit the code, tinker with the project to create your own flavour or even, build it further and make it a tough game -> Unleash your creativity. At the end of the project, you will be able to play with the game. Please post your highest score in the comments ;)

Getting started

Learn how to create a simulation for the ATTiny85 using Arduino style coding. This project will use the following components.

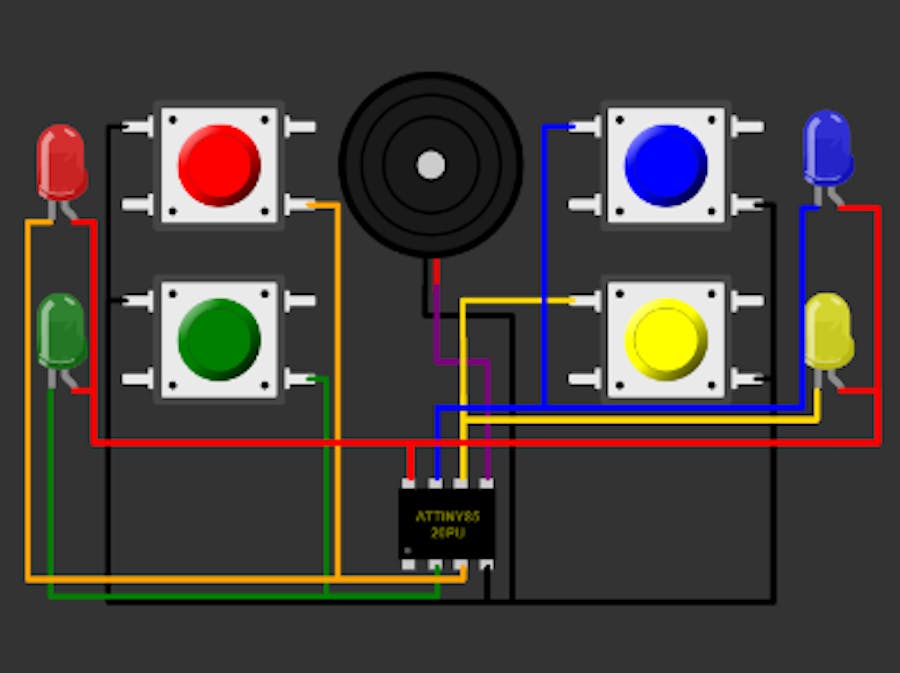

4 Wokwi LED elements
4 Wokwi momentary switches
ATtiny85
Connecting wires

About the game

Simon is a simple electronic memory game: the user has to repeat a growing sequence of colours. The sequence is displayed by lighting up the LEDs. Each colour also has a corresponding tone. In each turn, the game will play the sequence, and then wait for the user to repeat the sequence by pressing the buttons according to the colour sequence. If the user repeated the sequence correctly, the game will play a "levelling-up" sound, add a new colour at the end of the sequence, and move to the next turn. The game continues until the user has made a mistake. Then a game over sound is played, and the game restarts.

Wokwi Arduino Simulator tool Refresher

Knowing a bit about the menus and the controls 🕹 in the Wokwi Arduino simulator will help in the future.

Wokwi Arduino Simulator window definitions

In the order of the numbers mentioned in the image

1. the sketch, which always has ".ino" extension

2. a ReadMe file, which can be used to share more details about the project. can be left empty or even omitted

3. additional supporting files for the sketch. Wokwi Arduino simulator supports projects which contain multiple files as well. This is one such example

4. diagram.json is a special file. You can add, modify, delete the simulation elements (Arduino, LEDs, Motors, buttons etc)

5. the Simulation window, where all the action takes place. You can make it full screen when the sketch is running

6. The Editor window, where you add, update the Arduino code.

7. Timer - This shows the time elapsed with respect to the simulation. The simulation cannot run exactly at the same speed as the code runs in the real hardware. Hence, you might experience a slower time to sometimes a faster one.

8. This performance meter will show the relative performance of the simulator when compared to the actual hardware one

9. Click this button to RESTART the simulation

10. Click on this button to STOP the simulation

11. Clicking on this button will PAUSE the simulation. You can always resume it by clicking on the same button once more

12. SAVE button. Click here to save the code you just created or modified. Never lose the work :)

13. clicking on this button will give you the shareable code using which you can share your project with your classmates or friends or even on the social media

14. Not but not least, this gives you a little information about the Author an the project name

Here is the sketch for the Simon game

// https://wokwi.com/arduino/projects/285525640477671948

/**
   Simon Game for ATTiny85
   Copyright (C) 2018, Uri Shaked
   Licensed under the MIT License.
*/

#include <avr/sleep.h>
#include <avr/interrupt.h>

#include "pitches.h"

/* Constants - define pin numbers for leds, buttons and speaker, and also the game tones */
byte buttonPins[] = {1, 2, 3, 4};
#define SPEAKER_PIN 0

#define MAX_GAME_LENGTH 100

int gameTones[] = { NOTE_G3, NOTE_C4, NOTE_E4, NOTE_G5};

/* Global variales - store the game state */
byte gameSequence[MAX_GAME_LENGTH] = {0};
byte gameIndex = 0;

/**
   Set up the GPIO pins
*/
void setup() {
 // The following line primes the random number generator. It assumes pin A0 is floating (disconnected)
 randomSeed(analogRead(1));

 // Disable ADC - saves about 324.5uA in sleep mode!
  ADCSRA = 0;
  set_sleep_mode(SLEEP_MODE_PWR_DOWN);

 for (int i = 0; i < 4; i++) {
 pinMode(buttonPins[i], INPUT_PULLUP);
 }
 pinMode(SPEAKER_PIN, INPUT);
}

ISR(PCINT0_vect) {
  GIMSK &= ~0b00100000; // Turn off pin change interrupts
  sleep_disable();
}

void sleep() {
  sleep_enable();
 noInterrupts();
  GIMSK |= 0b00100000; // Turn on pin change interrupts
 for (byte i = 0; i < 4; i++) {
    PCMSK |= 1 << buttonPins[i];
 }
 interrupts();
  sleep_cpu();
}


// The sound-producing function
void beep (unsigned char speakerPin, int frequencyInHertz, long timeInMilliseconds)
{ // http://web.media.mit.edu/~leah/LilyPad/07_sound_code.html
 int  x;
 long delayAmount = (long)(1000000 / frequencyInHertz);
 long loopTime = (long)((timeInMilliseconds * 1000) / (delayAmount * 2));
 pinMode(speakerPin, OUTPUT);
 for (x = 0; x < loopTime; x++) {
 digitalWrite(speakerPin, HIGH);
 delayMicroseconds(delayAmount);
 digitalWrite(speakerPin, LOW);
 delayMicroseconds(delayAmount);
 }
 pinMode(speakerPin, INPUT);
}

/**
   Lights the given led and plays the suitable tone
*/
void lightLedAndPlaySound(byte ledIndex) {
 pinMode(buttonPins[ledIndex], OUTPUT);
 digitalWrite(buttonPins[ledIndex], LOW);
  beep(SPEAKER_PIN, gameTones[ledIndex], 300);
 pinMode(buttonPins[ledIndex], INPUT_PULLUP);
}

/**
   Plays the current sequence of notes that the user has to repeat
*/
void playSequence() {
 for (int i = 0; i < gameIndex; i++) {
 byte currentLed = gameSequence[i];
    lightLedAndPlaySound(currentLed);
 delay(50);
 }
}

/**
    Waits until the user pressed one of the buttons, and returns the index of that button
*/
byte readButton() {
 for (;;) {
 for (int i = 0; i < 4; i++) {
 byte buttonPin = buttonPins[i];
 if (digitalRead(buttonPin) == LOW) {
 return i;
 }
 }
    sleep();
 }
}

/**
   Plays the tone associated with a specific button + debouncing mechanism
*/
void playButtonTone(byte buttonIndex) {
  beep(SPEAKER_PIN, gameTones[buttonIndex], 150);

 // Wait until button is released.
 while (digitalRead(buttonPins[buttonIndex]) == LOW);
 delay(50);
}

/**
  Play the game over sequence, and report the game score
*/
void gameOver() {
  gameIndex = 0;
 delay(200);
 // Play a Wah-Wah-Wah-Wah sound
  beep(SPEAKER_PIN, NOTE_DS5, 300);
  beep(SPEAKER_PIN, NOTE_D5, 300);
  beep(SPEAKER_PIN, NOTE_CS5, 300);
 for (int i = 0; i < 200; i++) {
    beep(SPEAKER_PIN, NOTE_C5 + (i % 20 - 10), 5);
 }
 delay(500);
}

/**
   Get the user input and compare it with the expected sequence. If the user fails, play the game over sequence and restart the game.
*/
void checkUserSequence() {
 for (int i = 0; i < gameIndex; i++) {
 byte expectedButton = gameSequence[i];
 byte actualButton = readButton();
    playButtonTone(actualButton);

 if (expectedButton == actualButton) {
 /* good */
 } else {
      gameOver();
 return;
 }
 }
}

/**
   Plays an hooray sound whenever the user finishes a level
*/
void levelUp() {
  beep(SPEAKER_PIN, NOTE_E4, 150);
  beep(SPEAKER_PIN, NOTE_G4, 150);
  beep(SPEAKER_PIN, NOTE_E5, 150);
  beep(SPEAKER_PIN, NOTE_C5, 150);
  beep(SPEAKER_PIN, NOTE_D5, 150);
  beep(SPEAKER_PIN, NOTE_G5, 150);
}

/**
   The main game loop
*/
void loop() {
 // Add a random color to the end of the sequence
  gameSequence[gameIndex] = random(0, 4);
  gameIndex++;

  playSequence();
  checkUserSequence();
 delay(300);

 if (gameIndex > 0) {
    levelUp();
 delay(300);
 }
}

Additional file "pitches.h"

/**************************************************
   This file defines constants with the frequency
   of different musical notes.
 *************************************************/

#define NOTE_B0  31
#define NOTE_C1  33
#define NOTE_CS1 35
#define NOTE_D1  37
#define NOTE_DS1 39
#define NOTE_E1  41
#define NOTE_F1  44
#define NOTE_FS1 46
#define NOTE_G1  49
#define NOTE_GS1 52
#define NOTE_A1  55
#define NOTE_AS1 58
#define NOTE_B1  62
#define NOTE_C2  65
#define NOTE_CS2 69
#define NOTE_D2  73
#define NOTE_DS2 78
#define NOTE_E2  82
#define NOTE_F2  87
#define NOTE_FS2 93
#define NOTE_G2  98
#define NOTE_GS2 104
#define NOTE_A2  110
#define NOTE_AS2 117
#define NOTE_B2  123
#define NOTE_C3  131
#define NOTE_CS3 139
#define NOTE_D3  147
#define NOTE_DS3 156
#define NOTE_E3  165
#define NOTE_F3  175
#define NOTE_FS3 185
#define NOTE_G3  196
#define NOTE_GS3 208
#define NOTE_A3  220
#define NOTE_AS3 233
#define NOTE_B3  247
#define NOTE_C4  262
#define NOTE_CS4 277
#define NOTE_D4  294
#define NOTE_DS4 311
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_FS4 370
#define NOTE_G4  392
#define NOTE_GS4 415
#define NOTE_A4  440
#define NOTE_AS4 466
#define NOTE_B4  494
#define NOTE_C5  523
#define NOTE_CS5 554
#define NOTE_D5  587
#define NOTE_DS5 622
#define NOTE_E5  659
#define NOTE_F5  698
#define NOTE_FS5 740
#define NOTE_G5  784
#define NOTE_GS5 831
#define NOTE_A5  880
#define NOTE_AS5 932
#define NOTE_B5  988
#define NOTE_C6  1047
#define NOTE_CS6 1109
#define NOTE_D6  1175
#define NOTE_DS6 1245
#define NOTE_E6  1319
#define NOTE_F6  1397
#define NOTE_FS6 1480
#define NOTE_G6  1568
#define NOTE_GS6 1661
#define NOTE_A6  1760
#define NOTE_AS6 1865
#define NOTE_B6  1976
#define NOTE_C7  2093
#define NOTE_CS7 2217
#define NOTE_D7  2349
#define NOTE_DS7 2489
#define NOTE_E7  2637
#define NOTE_F7  2794
#define NOTE_FS7 2960
#define NOTE_G7  3136
#define NOTE_GS7 3322
#define NOTE_A7  3520
#define NOTE_AS7 3729
#define NOTE_B7  3951
#define NOTE_C8  4186
#define NOTE_CS8 4435
#define NOTE_D8  4699
#define NOTE_DS8 4978

Finally, the heart of the simulation window - the "diagram.json" file

{
 "version": 1,
 "author": "Uri Shaked",
 "editor": "wokwi",
 "parts": [
 {
 "type": "wokwi-attiny85",
 "id": "tiny",
 "top": 140,
 "left": 141.16
 },
 {
 "type": "wokwi-buzzer",
 "id": "buzzer",
 "top": -7.89,
 "left": 121.02,
 "attrs": { "volume": "0.1" }
 },
 {
 "type": "wokwi-led",
 "id": "led-red",
 "top": 10,
 "left": 6,
 "attrs": { "color": "red" }
 },
 {
 "type": "wokwi-led",
 "id": "led-green",
 "top": 68,
 "left": 6,
 "attrs": { "color": "green" }
 },
 {
 "type": "wokwi-led",
 "id": "led-blue",
 "top": 5.03,
 "left": 270,
 "attrs": { "color": "blue" }
 },
 {
 "type": "wokwi-led",
 "id": "led-yellow",
 "top": 68,
 "left": 270,
 "attrs": { "color": "yellow" }
 },
 {
 "type": "wokwi-pushbutton",
 "id": "btn-red",
 "top": 10,
 "left": 46,
 "attrs": { "color": "red" }
 },
 {
 "type": "wokwi-pushbutton",
 "id": "btn-green",
 "top": 70,
 "left": 46,
 "attrs": { "color": "green" }
 },
 {
 "type": "wokwi-pushbutton",
 "id": "btn-blue",
 "top": 10,
 "left": 200,
 "attrs": { "color": "blue" }
 },
 {
 "type": "wokwi-pushbutton",
 "id": "btn-yellow",
 "top": 70,
 "left": 200,
 "attrs": { "color": "yellow" }
 }
 ],
 "connections": [
 [ "tiny:GND", "buzzer:1", "black", [ "v12", "*", "h30","v10" ] ],
 [ "tiny:PB0", "buzzer:2", "purple", [ "v-40", "*", "h0" ] ],
 [ "tiny:PB1", "btn-yellow:1.l", "gold", [ "v-48", "*", "h-38" ] ],
 [ "tiny:GND", "btn-yellow:2.r", "black", [ "v12", "*", "h6" ] ],
 [ "tiny:PB2", "btn-blue:1.l", "blue", [ "v-24", "*", "h-10" ] ],
 [ "tiny:GND", "btn-blue:2.r", "black", [ "v12", "*", "h6" ] ],
 [ "tiny:PB3", "btn-green:2.r", "green", [ "v10", "*", "h6" ] ],
 [ "tiny:GND", "btn-green:1.l", "black", [ "v12", "*", "h-6" ] ],
 [ "tiny:PB4", "btn-red:2.r", "orange", [ "v4", "*", "h10" ] ],
 [ "tiny:GND", "btn-red:1.l", "black", [ "v12", "*", "h-6" ] ],
 [ "tiny:PB1", "led-yellow:C", "gold", [ "v-28", "*", "h-122", "v10" ] ],
 [ "tiny:VCC", "led-yellow:A", "red", [ "v-12", "*", "h-17", "v18","h13" ] ],
 [ "tiny:PB2", "led-blue:C", "blue", [ "v-24", "*", "h-5" ] ],
 [ "tiny:VCC", "led-blue:A", "red", [ "v-12", "*", "h-15", "v81","h13" ] ],
 [ "tiny:PB3", "led-green:C", "green", [ "v10", "*", "h0" ] ],
 [ "tiny:VCC", "led-green:A", "red", [ "v-12", "*", "h7" ] ],
 [ "tiny:PB4", "led-red:C", "orange", [ "v4", "h-150", "v-10" ] ],
 [ "tiny:VCC", "led-red:A", "red", [ "v-12", "*", "h7" ] ]
 ]
}

The Permanent link to the project

https://wokwi.com/arduino/projects/285525640477671948

A small GIF showing the working of the project is given below

Wokwi Arduino Simulator - Simon game in action

You can edit the project and play with it on any browsers. Just open the project URL and go to the editor tab. By clicking on the Play button, you will recompile the changes and start the simulations. You can indeed use your smartphone to develop code and play with the simulations.

Finally

If you have any questions feel free to hop on to the Wokwi Discord server

Also, you can leave comments below and I will be happy to help with your queries.

Share your interesting projects and browse through several curious projects from fellow developers and makers on Facebook Wokwi Group!

Stay Safe!

Don't stop learning!

#wokwiMakes

Code

/**
   Simon Game for ATTiny85
   Copyright (C) 2018, Uri Shaked
   Licensed under the MIT License.
*/

#include <avr/sleep.h>
#include <avr/interrupt.h>

#include "pitches.h"

/* Constants - define pin numbers for leds, buttons and speaker, and also the game tones */
byte buttonPins[] = {1, 2, 3, 4};
#define SPEAKER_PIN 0

#define MAX_GAME_LENGTH 100

int gameTones[] = { NOTE_G3, NOTE_C4, NOTE_E4, NOTE_G5};

/* Global variales - store the game state */
byte gameSequence[MAX_GAME_LENGTH] = {0};
byte gameIndex = 0;

/**
   Set up the GPIO pins
*/
void setup() {
  // The following line primes the random number generator. It assumes pin A0 is floating (disconnected)
  randomSeed(analogRead(1));

  // Disable ADC - saves about 324.5uA in sleep mode!
  ADCSRA = 0;
  set_sleep_mode(SLEEP_MODE_PWR_DOWN);

  for (int i = 0; i < 4; i++) {
    pinMode(buttonPins[i], INPUT_PULLUP);
  }
  pinMode(SPEAKER_PIN, INPUT);
}

ISR(PCINT0_vect) {
  GIMSK &= ~0b00100000;  // Turn off pin change interrupts
  sleep_disable();
}

void sleep() {
  sleep_enable();
  noInterrupts();
  GIMSK |= 0b00100000;  // Turn on pin change interrupts
  for (byte i = 0; i < 4; i++) {
    PCMSK |= 1 << buttonPins[i];
  }
  interrupts();
  sleep_cpu();
}


// The sound-producing function
void beep (unsigned char speakerPin, int frequencyInHertz, long timeInMilliseconds)
{ // http://web.media.mit.edu/~leah/LilyPad/07_sound_code.html
  int  x;
  long delayAmount = (long)(1000000 / frequencyInHertz);
  long loopTime = (long)((timeInMilliseconds * 1000) / (delayAmount * 2));
  pinMode(speakerPin, OUTPUT);
  for (x = 0; x < loopTime; x++) {
    digitalWrite(speakerPin, HIGH);
    delayMicroseconds(delayAmount);
    digitalWrite(speakerPin, LOW);
    delayMicroseconds(delayAmount);
  }
  pinMode(speakerPin, INPUT);
}

/**
   Lights the given led and plays the suitable tone
*/
void lightLedAndPlaySound(byte ledIndex) {
  pinMode(buttonPins[ledIndex], OUTPUT);
  digitalWrite(buttonPins[ledIndex], LOW);
  beep(SPEAKER_PIN, gameTones[ledIndex], 300);
  pinMode(buttonPins[ledIndex], INPUT_PULLUP);
}

/**
   Plays the current sequence of notes that the user has to repeat
*/
void playSequence() {
  for (int i = 0; i < gameIndex; i++) {
    byte currentLed = gameSequence[i];
    lightLedAndPlaySound(currentLed);
    delay(50);
  }
}

/**
    Waits until the user pressed one of the buttons, and returns the index of that button
*/
byte readButton() {
  for (;;) {
    for (int i = 0; i < 4; i++) {
      byte buttonPin = buttonPins[i];
      if (digitalRead(buttonPin) == LOW) {
        return i;
      }
    }
    sleep();
  }
}

/**
   Plays the tone associated with a specific button + debouncing mechanism
*/
void playButtonTone(byte buttonIndex) {
  beep(SPEAKER_PIN, gameTones[buttonIndex], 150);

  // Wait until button is released.
  while (digitalRead(buttonPins[buttonIndex]) == LOW);
  delay(50);
}

/**
  Play the game over sequence, and report the game score
*/
void gameOver() {
  gameIndex = 0;
  delay(200);
  // Play a Wah-Wah-Wah-Wah sound
  beep(SPEAKER_PIN, NOTE_DS5, 300);
  beep(SPEAKER_PIN, NOTE_D5, 300);
  beep(SPEAKER_PIN, NOTE_CS5, 300);
  for (int i = 0; i < 200; i++) {
    beep(SPEAKER_PIN, NOTE_C5 + (i % 20 - 10), 5);
  }
  delay(500);
}

/**
   Get the user input and compare it with the expected sequence. If the user fails, play the game over sequence and restart the game.
*/
void checkUserSequence() {
  for (int i = 0; i < gameIndex; i++) {
    byte expectedButton = gameSequence[i];
    byte actualButton = readButton();
    playButtonTone(actualButton);

    if (expectedButton == actualButton) {
      /* good */
    } else {
      gameOver();
      return;
    }
  }
}

/**
   Plays an hooray sound whenever the user finishes a level
*/
void levelUp() {
  beep(SPEAKER_PIN, NOTE_E4, 150);
  beep(SPEAKER_PIN, NOTE_G4, 150);
  beep(SPEAKER_PIN, NOTE_E5, 150);
  beep(SPEAKER_PIN, NOTE_C5, 150);
  beep(SPEAKER_PIN, NOTE_D5, 150);
  beep(SPEAKER_PIN, NOTE_G5, 150);
}

/**
   The main game loop
*/
void loop() {
  // Add a random color to the end of the sequence
  gameSequence[gameIndex] = random(0, 4);
  gameIndex++;

  playSequence();
  checkUserSequence();
  delay(300);

  if (gameIndex > 0) {
    levelUp();
    delay(300);
  }
}

/**************************************************
   This file defines constants with the frequency
   of different musical notes.
 *************************************************/

#define NOTE_B0  31
#define NOTE_C1  33
#define NOTE_CS1 35
#define NOTE_D1  37
#define NOTE_DS1 39
#define NOTE_E1  41
#define NOTE_F1  44
#define NOTE_FS1 46
#define NOTE_G1  49
#define NOTE_GS1 52
#define NOTE_A1  55
#define NOTE_AS1 58
#define NOTE_B1  62
#define NOTE_C2  65
#define NOTE_CS2 69
#define NOTE_D2  73
#define NOTE_DS2 78
#define NOTE_E2  82
#define NOTE_F2  87
#define NOTE_FS2 93
#define NOTE_G2  98
#define NOTE_GS2 104
#define NOTE_A2  110
#define NOTE_AS2 117
#define NOTE_B2  123
#define NOTE_C3  131
#define NOTE_CS3 139
#define NOTE_D3  147
#define NOTE_DS3 156
#define NOTE_E3  165
#define NOTE_F3  175
#define NOTE_FS3 185
#define NOTE_G3  196
#define NOTE_GS3 208
#define NOTE_A3  220
#define NOTE_AS3 233
#define NOTE_B3  247
#define NOTE_C4  262
#define NOTE_CS4 277
#define NOTE_D4  294
#define NOTE_DS4 311
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_FS4 370
#define NOTE_G4  392
#define NOTE_GS4 415
#define NOTE_A4  440
#define NOTE_AS4 466
#define NOTE_B4  494
#define NOTE_C5  523
#define NOTE_CS5 554
#define NOTE_D5  587
#define NOTE_DS5 622
#define NOTE_E5  659
#define NOTE_F5  698
#define NOTE_FS5 740
#define NOTE_G5  784
#define NOTE_GS5 831
#define NOTE_A5  880
#define NOTE_AS5 932
#define NOTE_B5  988
#define NOTE_C6  1047
#define NOTE_CS6 1109
#define NOTE_D6  1175
#define NOTE_DS6 1245
#define NOTE_E6  1319
#define NOTE_F6  1397
#define NOTE_FS6 1480
#define NOTE_G6  1568
#define NOTE_GS6 1661
#define NOTE_A6  1760
#define NOTE_AS6 1865
#define NOTE_B6  1976
#define NOTE_C7  2093
#define NOTE_CS7 2217
#define NOTE_D7  2349
#define NOTE_DS7 2489
#define NOTE_E7  2637
#define NOTE_F7  2794
#define NOTE_FS7 2960
#define NOTE_G7  3136
#define NOTE_GS7 3322
#define NOTE_A7  3520
#define NOTE_AS7 3729
#define NOTE_B7  3951
#define NOTE_C8  4186
#define NOTE_CS8 4435
#define NOTE_D8  4699
#define NOTE_DS8 4978

{
  "version": 1,
  "author": "Uri Shaked",
  "editor": "wokwi",
  "parts": [
    {
      "type": "wokwi-attiny85",
      "id": "tiny",
      "top": 140,
      "left": 141.16
    },
    {
      "type": "wokwi-buzzer",
      "id": "buzzer",
      "top": -7.89,
      "left": 121.02,
      "attrs": { "volume": "0.1" }
    },
    {
      "type": "wokwi-led",
      "id": "led-red",
      "top": 10,
      "left": 6,
      "attrs": { "color": "red" }
    },
    {
      "type": "wokwi-led",
      "id": "led-green",
      "top": 68,
      "left": 6,
      "attrs": { "color": "green" }
    },
    {
      "type": "wokwi-led",
      "id": "led-blue",
      "top": 5.03,
      "left": 270,
      "attrs": { "color": "blue" }
    },
    {
      "type": "wokwi-led",
      "id": "led-yellow",
      "top": 68,
      "left": 270,
      "attrs": { "color": "yellow" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn-red",
      "top": 10,
      "left": 46,
      "attrs": { "color": "red" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn-green",
      "top": 70,
      "left": 46,
      "attrs": { "color": "green" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn-blue",
      "top": 10,
      "left": 200,
      "attrs": { "color": "blue" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn-yellow",
      "top": 70,
      "left": 200,
      "attrs": { "color": "yellow" }
    }
  ],
  "connections": [
    [ "tiny:GND", "buzzer:1", "black", [ "v12", "*", "h30","v10" ] ],
    [ "tiny:PB0", "buzzer:2", "purple", [ "v-40", "*", "h0" ] ],
    [ "tiny:PB1", "btn-yellow:1.l", "gold", [ "v-48", "*", "h-38" ] ],
    [ "tiny:GND", "btn-yellow:2.r", "black", [ "v12", "*", "h6" ] ],
    [ "tiny:PB2", "btn-blue:1.l", "blue", [ "v-24", "*", "h-10" ] ],
    [ "tiny:GND", "btn-blue:2.r", "black", [ "v12", "*", "h6" ] ],
    [ "tiny:PB3", "btn-green:2.r", "green", [ "v10", "*", "h6" ] ],
    [ "tiny:GND", "btn-green:1.l", "black", [ "v12", "*", "h-6" ] ],
    [ "tiny:PB4", "btn-red:2.r", "orange", [ "v4", "*", "h10" ] ],
    [ "tiny:GND", "btn-red:1.l", "black", [ "v12", "*", "h-6" ] ],
    [ "tiny:PB1", "led-yellow:C", "gold", [ "v-28", "*", "h-122", "v10" ] ],
    [ "tiny:VCC", "led-yellow:A", "red", [ "v-12", "*", "h-17", "v18","h13" ] ],
    [ "tiny:PB2", "led-blue:C", "blue", [ "v-24", "*", "h-5" ] ],
    [ "tiny:VCC", "led-blue:A", "red", [ "v-12", "*", "h-15", "v81","h13" ] ],
    [ "tiny:PB3", "led-green:C", "green", [ "v10", "*", "h0" ] ],
    [ "tiny:VCC", "led-green:A", "red", [ "v-12", "*", "h7" ] ],
    [ "tiny:PB4", "led-red:C", "orange", [ "v4", "h-150", "v-10" ] ],
    [ "tiny:VCC", "led-red:A", "red", [ "v-12", "*", "h7" ] ]
  ]
}

Credits

Hack star

75 projects • 133 followers

an Arduino enthusiast and an electronic hobbyist

Contact

Comments

Please log in or sign up to comment.

Arduino Simulator - Simulate Simon game on ATTiny85

Things used in this project

Hardware components

Story

Introduction

Getting started

About the game

Wokwi Arduino Simulator tool Refresher

Here is the sketch for the Simon game

The Permanent link to the project

Finally

Schematics

Connection diagram

Code

the sketch file

the supporting pitches.h file

the diagram.json file

Wokwi on GItHub

Credits

Hack star

Comments

Embed the widget on your own site

Arduino Simulator - Simulate Simon game on ATTiny85

Arduino Simulator - Simulate Simon game on ATTiny85

Things used in this project

Hardware components

Story

Introduction

Getting started

About the game

Wokwi Arduino Simulator tool Refresher

Here is the sketch for the Simon game

The Permanent link to the project

Finally

Schematics

Connection diagram

Code

the sketch file

the supporting pitches.h file

the diagram.json file

Wokwi on GItHub

Credits

Hack star

Comments

Related channels and tags
