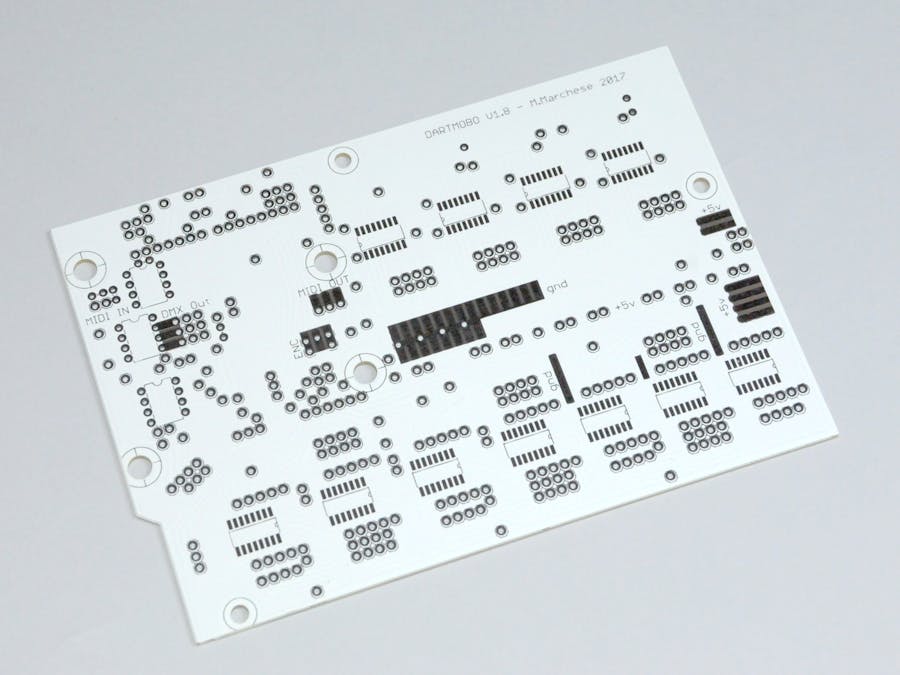

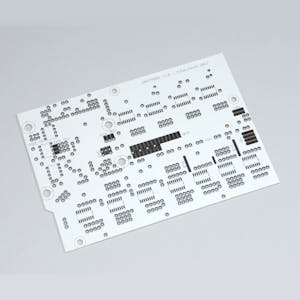

this board is based on easy to find components. it's low cost and it can also be DIY produced, by chamical etching or CNC machining, in it's single-face version. it had very big traces and pads to facilitate direct soldering on the board.
Up to 56 modifiers (potentiometers, buttons, sensors) can be connected to the system.
the DARTMOBO shield circuitry includes:
DMX output - with optical and galvanic isolation
MIDI IN
MIDI OUT
TOUCHSENSING - 2 INPUTS
UP TO 48 digital outputs - for LEDs or other actuators.
