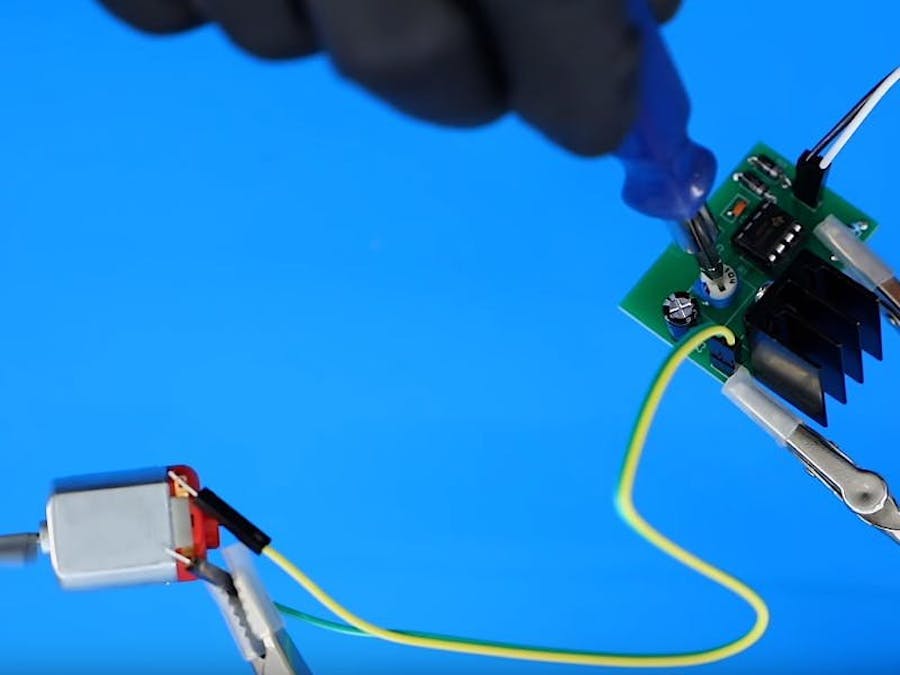

How to Make a Simple Motor / LED Controller

Here you can find lots of crafts, hand made items, and the main thing is that they all made of make-shifts and at the lowest cost!

BeginnerFull instructions provided495
How to Make a Simple Motor / LED Controller

Things used in this project

Hardware components

IC 555
×1
8 PIN IC BASE
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
×2
100K PRESET
×1
MJE3055 NPN POWER TRANSISTOR
×1
103 PF
×1
Capacitor 220 µF
×2
12V POWER SUPPLY
×1
Resistor 1k ohm
Resistor 1k ohm
×1
Mini Heated Bed
OpenBuilds Mini Heated Bed
×1
PCB board
×1

Story

Read more

Schematics

ALL design

ALL design of this project
