KY-016 Straight Onto UNO

/*

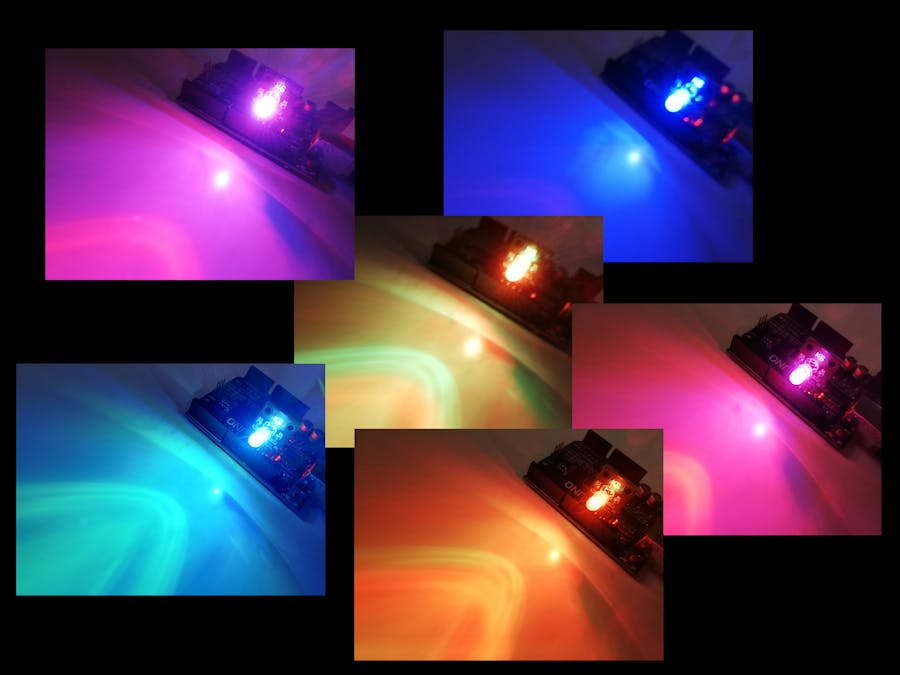

 *    COLOURSWEEPER
 *    by Johan Halmen
 *    credits to Brett Hagman
 *
 *    Make sure you have installed
 *    the SoftPWM library by Brett Hagman
 *
 */

#include "SoftPWM.h"

int bPin = 13;
int gPin = 12;
int rPin = 11;

void setup() {
  SoftPWMBegin();
  SoftPWMSet(rPin, 0);
  SoftPWMSet(gPin, 0);
  SoftPWMSet(bPin, 0);
  SoftPWMSetFadeTime(rPin, 0, 0);
  SoftPWMSetFadeTime(gPin, 0, 0);
  SoftPWMSetFadeTime(bPin, 0, 0);
  delay(1000);
}

void loop() {
  int total, phase, delta;
  long int now, then = 0;
  now = millis();
  total = now % 6144;           // The cycle lasts 6144 milliseconds (6 * 1024)
  phase = total / 1024;         // Divide the cycle into 6 phases, think of each
                                // phase as sliding one slide of three slides on
                                // a light board representing the red, green and blue
                                // channels of your light.

  delta = (total % 1024) >> 2;  // Have the "slide" value vary from 0 to 255,
                                // the delta value increments every four milliseconds

  if (delta != then)            // Update the slides only if the millisecond clock
                                // has ticked four times
  {
    switch (phase)
    {
      // Every second phase one slide goes up,
      // every other second one slide goes down
      case 0 :
        SoftPWMSet(gPin, delta); // green goes up
      break;
      case 1 :
        SoftPWMSet(rPin, 255 - delta); // red goes down
      break;
      case 2 :
        SoftPWMSet(bPin, delta); // etc, you get the idea
      break;
      case 3 :
        SoftPWMSet(gPin, 255 - delta);
      break;
      case 4 :
        SoftPWMSet(rPin, delta);
      break;
      case 5 :
        SoftPWMSet(bPin, 255 - delta);
      break;
    }
    then = delta;               // Save the delta time for this last
                                // update of the slides
  }
}
