- 1X Green baseplate 48 X 48 studs
- 2X Magnifying lenses (I used two convex lenses from the computer projector I took apart)

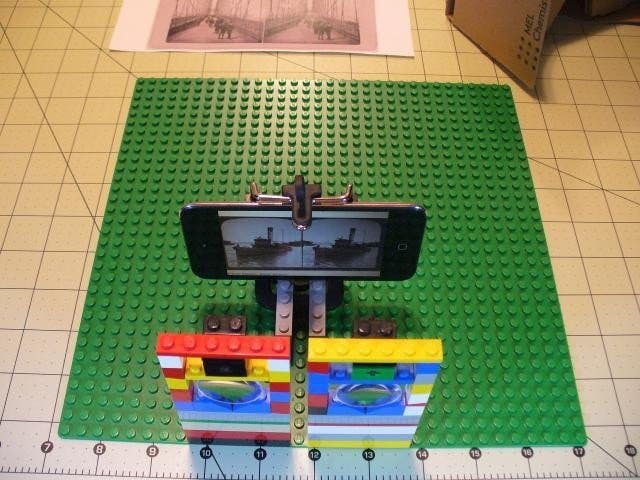

The screen widths for my iPod and Android phone were too small to use with current Virtual Reality (VR) headsets like Google Cardboard. So, I decided to build my own stereograph viewer with parts from my Lego optics lab. Here's how I built it (the stereograph on the iPod screen is one I found on the WWW but below I'll show you how to make your own 3D stereograph):
It turns out that it is so easy to build a stereograph viewer that I really didn’t need the lens holders and could use a pair of dollar store reading glasses. The cardboard divider is optional if you have trouble relaxing your eyes like you would to view those 3D “Magic Eye” images. Otherwise the cardboard divider isn’t necessary.
Creating a stereograph is pretty easy too. I used an app from Google Play called 3DSteroid. The app lets you make a stereograph by taking two pictures of the same object. You snap the first picture, then move the camera one or two inches to the right, and snap a second picture of the same object. The app then stitches the left and right images together in a single image.
Here's my table-top photography studio setup:
Single picture of scarecrow:
Stereograph of scarecrow:
