Published August 25, 2021 © LGPL

Robot Companion Pendant

First attempt at building a small companion in pendant form so it can be worn easily. Very janky as it was slapped together in about 3 days

BeginnerWork in progress350

Things used in this project

Hardware components

SparkFun MicroView - OLED Arduino Module

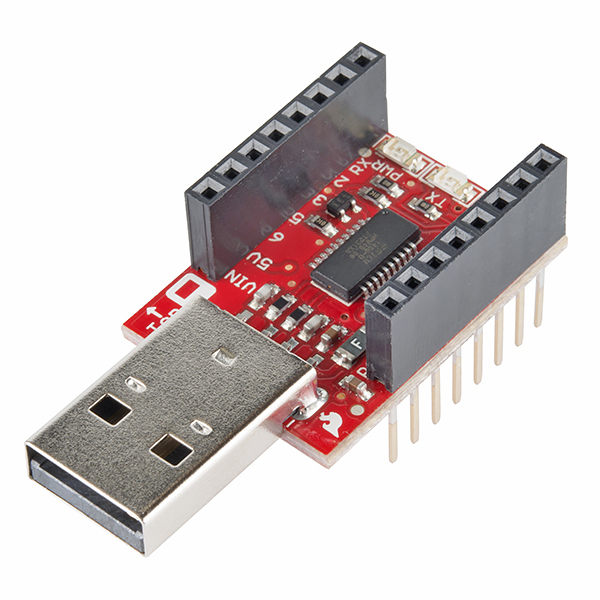

SparkFun MicroView - USB Programmer

Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger

Female Header 8 Position 1 Row (0.1")

Li-Ion Battery 270mAH

SparkFun Pushbutton switch 12mm

SparkFun Snappable Protoboard

Software apps and online services

Arduino IDE

LCD Assistant

This is used to convert monochrome bit map files to pixel arrays that can be easily displayed on the screen of the Microview.

Autodesk Fusion

I actually used Autodesk Inventor but the files can be opened and edited in fusion 360

Hand tools and fabrication machines

3D Printer (generic)

Small hand file

Tape, Double Sided

Aluminium foil tape

Story

Disclaimer: Very janky as this device was thrown together in 3 days with no real plan. Also, more pictures and videos areto come.

I built this pendant for my birthday. I am tired of living in a world that is not as magical as it could be. So I have decided to help be the change I want to see and make my world of tomorrow today. It initially started off as a simple electronic badge that would just be able to change the image it displayed, however during the making process something magical happened.

As I started drawing sprites and was staring at the black LED screen I noticed a single eye staring back. It was at that moment I knew that this was no longer a simple badge but something much more.

Embedded in the device is the initial spark of a being that is slowly growing, observing and learning. I expect its shape to go through many changes over time and its powers to grow as well.

This pendant was built from components that I had lying around and or easy access to at work. This design currently seems to meet the requirements needed to keep this spark contained however it will not be suitable for long and will need to be upgraded. it will definitely need more Flash space, possible Bluetooth connectivity, a bigger display and a less bulky form factor.

Schematics

Code

Arduino Skecth

#include <MicroView.h>      // include MicroView library

uint8_t sprite_1_f1 [] = {
0xFF, 0xE1, 0xE1, 0xE1, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80,
0x40, 0x40, 0x20, 0x10, 0x10, 0x88, 0xC4, 0xE2, 0xE2, 0xF1, 0xF1, 0xF1, 0xF1, 0x71, 0x71, 0x3F,
0x3F, 0x71, 0x71, 0xF1, 0xF1, 0xF1, 0xF1, 0xE2, 0xC2, 0xC4, 0x88, 0x10, 0x10, 0x20, 0x40, 0x80,
0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xE1, 0xE1, 0xE1, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x40, 0x40, 0x20, 0x10, 0x08, 0x88, 0xC4, 0xC2, 0xE2, 0xF1, 0xF8,
0xF8, 0xFC, 0x7E, 0x3F, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x81, 0x80, 0x80, 0xC0, 0xC0,
0xC0, 0xC0, 0xC0, 0x80, 0x81, 0x81, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8,
0xF0, 0xE1, 0xE2, 0xC4, 0x84, 0x08, 0x10, 0x20, 0x20, 0x40, 0x40, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF8, 0xFC, 0x3E, 0x1F, 0x1F, 0x0F, 0x07, 0x03, 0x03, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0xFC, 0xFE, 0xFF, 0xFF, 0xFF, 0x9F, 0x0F, 0x67,
0x67, 0x0F, 0x9F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x7C, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0x03, 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0xFE, 0xFC, 0xF8, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0x1F, 0x3D, 0x7D, 0xF9, 0xF9, 0xF1, 0xE2, 0xC2, 0xC4, 0x88,
0x08, 0x10, 0x20, 0x20, 0x40, 0x80, 0x80, 0x01, 0x07, 0x0F, 0x1F, 0x3F, 0x3F, 0x3F, 0x7F, 0x7E,
0x7E, 0x5F, 0x7F, 0x3F, 0x2F, 0x3F, 0x1F, 0x0F, 0x07, 0x81, 0x40, 0x20, 0x20, 0x10, 0x08, 0x08,
0x84, 0xC2, 0xC2, 0xE1, 0xF1, 0xF9, 0xF9, 0x7D, 0x3F, 0x1F, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x07, 0x07, 0x0F,
0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8, 0xF0, 0xF1, 0xE1, 0xC2, 0x84, 0x84, 0x08, 0x10, 0x10, 0xE0,
0xE0, 0x10, 0x10, 0x08, 0x84, 0x84, 0xC2, 0xE1, 0xF1, 0xF0, 0xF8, 0xFC, 0x7C, 0x3E, 0x3F, 0x1F,
0x0F, 0x07, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x7E, 0x7E, 0xFF,
0xFF, 0x7E, 0x7E, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};

uint8_t sprite_1_f2 [] = {
0xFF, 0xE1, 0xE1, 0xE1, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80,
0x40, 0x40, 0x20, 0x10, 0x10, 0x88, 0xC4, 0xE2, 0xE2, 0xF1, 0xF1, 0xF1, 0xF1, 0x71, 0x71, 0x3F,
0x3F, 0x71, 0x71, 0xF1, 0xF1, 0xF1, 0xF1, 0xE2, 0xC2, 0xC4, 0x88, 0x10, 0x10, 0x20, 0x40, 0x80,
0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xE1, 0xE1, 0xE1, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x40, 0x40, 0x20, 0x10, 0x08, 0x88, 0xC4, 0xC2, 0xE2, 0xF1, 0xF8,
0xF8, 0xFC, 0x7E, 0x3F, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x81, 0x80, 0x80, 0xC0, 0xC0,
0xC0, 0xC0, 0xC0, 0x80, 0x81, 0x81, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8,
0xF0, 0xE1, 0xE2, 0xC4, 0x84, 0x08, 0x10, 0x20, 0x20, 0x40, 0x40, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF8, 0xFC, 0x3E, 0x1F, 0x1F, 0x0F, 0x07, 0x03, 0x03, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0xFC, 0xFE, 0xFF, 0x9F, 0x0F, 0x67, 0x67, 0x0F,
0x9F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x7C, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0x03, 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0xFE, 0xFC, 0xF8, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0x1F, 0x3D, 0x7D, 0xF9, 0xF9, 0xF1, 0xE2, 0xC2, 0xC4, 0x88,
0x08, 0x10, 0x20, 0x20, 0x40, 0x80, 0x80, 0x01, 0x07, 0x0F, 0x1F, 0x3F, 0x3F, 0x3E, 0x7E, 0x7F,
0x7F, 0x5F, 0x7F, 0x3F, 0x2F, 0x3F, 0x1F, 0x0F, 0x07, 0x81, 0x40, 0x20, 0x20, 0x10, 0x08, 0x08,
0x84, 0xC2, 0xC2, 0xE1, 0xF1, 0xF9, 0xF9, 0x7D, 0x3F, 0x1F, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x07, 0x07, 0x0F,
0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8, 0xF0, 0xF1, 0xE1, 0xC2, 0x84, 0x84, 0x08, 0x10, 0x10, 0xE0,
0xE0, 0x10, 0x10, 0x08, 0x84, 0x84, 0xC2, 0xE1, 0xF1, 0xF0, 0xF8, 0xFC, 0x7C, 0x3E, 0x3F, 0x1F,
0x0F, 0x07, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x7E, 0x7E, 0xFF,
0xFF, 0x7E, 0x7E, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};

uint8_t sprite_1_f3 [] = {
0xFF, 0xE1, 0xE1, 0xE1, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80,
0x40, 0x40, 0x20, 0x10, 0x10, 0x88, 0xC4, 0xE2, 0xE2, 0xF1, 0xF1, 0xF1, 0xF1, 0x71, 0x71, 0x3F,
0x3F, 0x71, 0x71, 0xF1, 0xF1, 0xF1, 0xF1, 0xE2, 0xC2, 0xC4, 0x88, 0x10, 0x10, 0x20, 0x40, 0x80,
0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xE1, 0xE1, 0xE1, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x40, 0x40, 0x20, 0x10, 0x08, 0x88, 0xC4, 0xC2, 0xE2, 0xF1, 0xF8,
0xF8, 0xFC, 0x7E, 0x3F, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x81, 0x80, 0x80, 0xC0, 0xC0,
0xC0, 0xC0, 0xC0, 0x80, 0x81, 0x81, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8,
0xF0, 0xE1, 0xE2, 0xC4, 0x84, 0x08, 0x10, 0x20, 0x20, 0x40, 0x40, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF8, 0xFC, 0x3E, 0x1F, 0x1F, 0x0F, 0x07, 0x03, 0x03, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0x9C, 0x0E, 0x67, 0x67, 0x0F, 0x9F, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0x7C, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0x03, 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0xFE, 0xFC, 0xF8, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0x1F, 0x3D, 0x7D, 0xF9, 0xF9, 0xF1, 0xE2, 0xC2, 0xC4, 0x88,
0x08, 0x10, 0x20, 0x20, 0x40, 0x80, 0x80, 0x01, 0x07, 0x0F, 0x1E, 0x3E, 0x3F, 0x3F, 0x7F, 0x7F,
0x7F, 0x5F, 0x7F, 0x3F, 0x2F, 0x3F, 0x1F, 0x0F, 0x07, 0x81, 0x40, 0x20, 0x20, 0x10, 0x08, 0x08,
0x84, 0xC2, 0xC2, 0xE1, 0xF1, 0xF9, 0xF9, 0x7D, 0x3F, 0x1F, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x07, 0x07, 0x0F,
0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8, 0xF0, 0xF1, 0xE1, 0xC2, 0x84, 0x84, 0x08, 0x10, 0x10, 0xE0,
0xE0, 0x10, 0x10, 0x08, 0x84, 0x84, 0xC2, 0xE1, 0xF1, 0xF0, 0xF8, 0xFC, 0x7C, 0x3E, 0x3F, 0x1F,
0x0F, 0x07, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x7E, 0x7E, 0xFF,
0xFF, 0x7E, 0x7E, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};



uint8_t sprite_1_f8 [] = {
0xFF, 0xE1, 0xE1, 0xE1, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80,
0x40, 0x40, 0x20, 0x10, 0x10, 0x88, 0xC4, 0xE2, 0xE2, 0xF1, 0xF1, 0xF1, 0xF1, 0x71, 0x71, 0x3F,
0x3F, 0x71, 0x71, 0xF1, 0xF1, 0xF1, 0xF1, 0xE2, 0xC2, 0xC4, 0x88, 0x10, 0x10, 0x20, 0x40, 0x80,
0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xE1, 0xE1, 0xE1, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x40, 0x40, 0x20, 0x10, 0x08, 0x88, 0xC4, 0xC2, 0xE2, 0xF1, 0xF8,
0xF8, 0xFC, 0x7E, 0x3F, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x81, 0x80, 0x80, 0xC0, 0xC0,
0xC0, 0xC0, 0xC0, 0x80, 0x81, 0x81, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8,
0xF0, 0xE1, 0xE2, 0xC4, 0x84, 0x08, 0x10, 0x20, 0x20, 0x40, 0x40, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF8, 0xFC, 0x3E, 0x1F, 0x1F, 0x0F, 0x07, 0x03, 0x03, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0xFC, 0xFE, 0xFF, 0xFF, 0xFF, 0xFF, 0xF3, 0xE1,
0xCC, 0xCC, 0xE1, 0xF3, 0xFF, 0xFF, 0xFF, 0xFE, 0x7C, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0x03, 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0xFE, 0xFC, 0xF8, 0xF8, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0x1F, 0x3D, 0x7D, 0xF9, 0xF9, 0xF1, 0xE2, 0xC2, 0xC4, 0x88,
0x08, 0x10, 0x20, 0x20, 0x40, 0x80, 0x80, 0x01, 0x07, 0x0F, 0x1F, 0x3F, 0x3F, 0x3F, 0x7F, 0x7F,
0x7F, 0x5F, 0x7F, 0x3F, 0x2F, 0x3F, 0x1F, 0x0F, 0x07, 0x81, 0x40, 0x20, 0x20, 0x10, 0x08, 0x08,
0x84, 0xC2, 0xC2, 0xE1, 0xF1, 0xF9, 0xF9, 0x7D, 0x3F, 0x1F, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x07, 0x07, 0x0F,
0x1F, 0x3F, 0x3E, 0x7C, 0xFC, 0xF8, 0xF0, 0xF1, 0xE1, 0xC2, 0x84, 0x84, 0x08, 0x10, 0x10, 0xE0,
0xE0, 0x10, 0x10, 0x08, 0x84, 0x84, 0xC2, 0xE1, 0xF1, 0xF0, 0xF8, 0xFC, 0x7C, 0x3E, 0x3F, 0x1F,
0x0F, 0x07, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x03, 0x07, 0x0F, 0x0F, 0x1F, 0x3F, 0x7E, 0x7E, 0xFF,
0xFF, 0x7E, 0x7E, 0x3F, 0x1F, 0x0F, 0x0F, 0x07, 0x03, 0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};








int buttonPin = 2;         // push button pin
volatile uint8_t displaySelect = LOW;        // variable to store the display status
volatile uint8_t pressCount = 0;

void setup() {
    uView.begin();          // start MicroView
    uView.clear(PAGE);      // clear page

    pinMode(buttonPin, INPUT_PULLUP);      // initialize the pushbutton pin as an input

   /* Enables interupt 0 on pin 2 to trigger on a falling edge of the button press */
   attachInterrupt(digitalPinToInterrupt(buttonPin), button_press, FALLING);
}

void loop() {


  /* Changes sprites displayed based on the state of the display select */
  if(displaySelect == HIGH)
  {
    uView.drawBitmap(sprite_1_f1);
    uView.display();

    delay(500);

    uView.drawBitmap(sprite_1_f2);
    uView.display();

    delay(500);

    uView.drawBitmap(sprite_1_f3);
    uView.display();

    delay(500);

    uView.drawBitmap(sprite_1_f2);
    uView.display();

    delay(500);

    uView.drawBitmap(sprite_1_f1);
    uView.display();

    delay(500);

  }
  else
  {

    uView.clear(PAGE);      // clear page
     uView.display();
   }
}


void button_press()
{

  /* Toggles display state*/
  displaySelect = !displaySelect;

//////////////////////////////////////  Tester  //////////////////////////////////////
//  /*Check if the pushbutton is pressed.
//    if it is not pressed, the displaySelect is HIGH:*/
//  if (displaySelect == HIGH)
//  {
//    uView.setCursor(0,0);       // set cursor at 0,0
//    uView.print("OFF");         // print OFF
//    uView.display();
//  }
//  else
//  {
//    uView.setCursor(0,0);
//    uView.print("ON ");
//    uView.display();
//  }

}
