Universal Nixie Tube TesterFor better understanding on what the Nixie tester is about, please take a look at the video below.

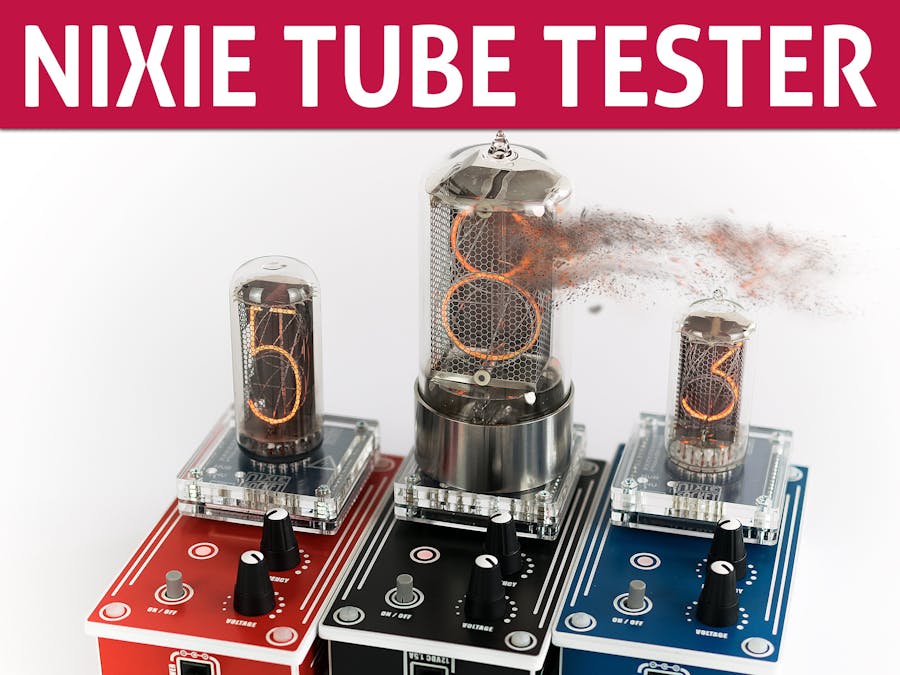

Universal Nixie Tube Tester: It's a simple, handy device for testing Nixie tubes. Additional tester functionality (with socket no.16) is the ability to test Nixie tube drivers. The tester allows you to connect 16 different sockets for several dozen Nixie tubes and Nixie tube drivers. The sockets (no.1 - 15) presented below are also compatible with Nixie Shield for Arduino and Nixie Hat for Raspberry Pi.
- Perfect quality enclosure (colour: black, red, blue), laser-cut and engraved
- Enclosure dimensions: 1.3 x 2.75 x 4.8 inch (33 x 70 x 122 mm)
- 16 tube sockets compatible
- Power on/off switch
- Power on LED indicator
- Voltage adjustment: 140-200V
- Frequency adjustment: 1-10Hz
- Voltage measurement output
- Auto control
- External power supply: 12V; 1A DC; plug diameter 2.5 x 5.5 mm; center pin positive+
- 16 sockets available for dozen different tubes and Nixie drivers
- Each socket have same form-factor
- Acrylic enclosures
- Easy to assemble and use
- Dedicated carton packaging
Project continuation: https://igg.me/at/pro-nixietester
********************************************************************************** Project update - new sockets for Universal Nixie Tube TesterTotal 22 nixie sockets.
