Nixie Tube Watch Simulated on ESP32 Using the M5Stick

To build a Nixie tube clock is a perpetual project on my mind. But they require high voltage, expensive and not easy to be wereable. So the feeling I wanted to see was made by software.

The perfect opportunity came up to me when I get the M5Stick-C. It is an amazing device based on ESP32 with a small LCD display of 80 × 160 pixel, but bright and clear.

Outcome

The watch has three faces. You can switch betewen them using the M5 switch.

How to

Previously, it is mandatory install the development environment. If you use the Arduino IDE, exists a perfect guide to start up the device : M5StickC Quick Start - Arduino Win.

finally this is the configuration that you need to compile the Arduino sketch of M5StickC_Nixie_tube_Clock that you have here in this repository.

Now only that you need is plug in the M5Stick whith the USB-C adaptor and load the program.

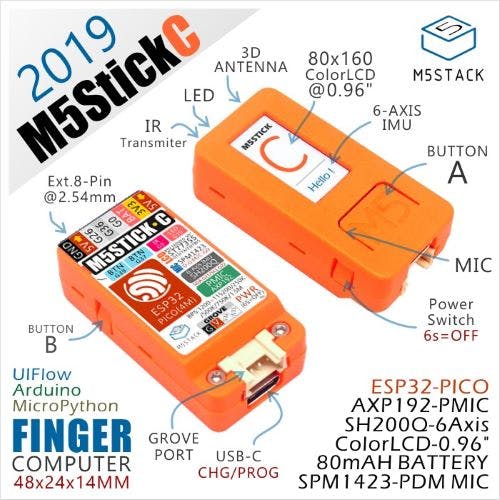

Hardware components

The M5Stick-C is a device with multiple components as processor, sensors, interrupters and LED. The processor features are:

MicrocontrolerESP32 PicoFrequency240MHzFlash4MBRAM320KB

• I2C BM8563 : Realizes the RTC function. Address: 0x15.
• AXP192: power management IC
• ST7735S: LCD IPS display 80 × 160 pixel, 0.96"
• SH200Q: IMU movement and positioning 6-axis inertial sensor.
• SPM1423: PDM microphone
• IR: IR transmitter

Software components

• Arduino IDE
• ICONs files: vfd_18x34.c,vfd_35x67.c

Arduino code:

// M5StickC Nixie tube Clock: 2019.06.06
#include <M5StickC.h>
#include "vfd_18x34.c"
#include "vfd_35x67.c"
RTC_TimeTypeDef RTC_TimeStruct;
RTC_DateTypeDef RTC_DateStruct;
int mode_ = 3; // 3:2Lines 2: 2Lines(YYMM), 1:1Line
const uint8_t*n[] = { // vfd font 18x34
 vfd_18x34_0,vfd_18x34_1,vfd_18x34_2,vfd_18x34_3,vfd_18x34_4,
 vfd_18x34_5,vfd_18x34_6,vfd_18x34_7,vfd_18x34_8,vfd_18x34_9
 };
const uint8_t*m[] = { // vfd font 35x67
 vfd_35x67_0,vfd_35x67_1,vfd_35x67_2,vfd_35x67_3,vfd_35x67_4,
 vfd_35x67_5,vfd_35x67_6,vfd_35x67_7,vfd_35x67_8,vfd_35x67_9
 };
const char *monthName[12] = {
 "Jan", "Feb", "Mar", "Apr", "May", "Jun",
 "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"
};
void setup(void){
 M5.begin();
 pinMode(M5_BUTTON_HOME, INPUT);
 M5.Lcd.fillScreen(BLACK);
 M5.Lcd.setRotation(1);
 M5.Axp.ScreenBreath(10);             // 7-15
 // rtc setup start ---------------------------------------------
 String pt = (__DATE__ " " __TIME__); // PC DATE TIME READ
 //000000000011111111112  Read data
 //012345678901234567890
 //Jun  6 2019 07:20:41
 char m1[3]; int  m2; // Month conversion ( Jun to 6 )
 (pt.substring(0,3)).toCharArray(m1,4);
 for (int mx = 0; mx < 12; mx ++) {
   if (strcmp(m1, monthName[mx]) == 0){m2 = mx + 1; break;}
 }
 RTC_DateTypeDef DateStruct;         // Month, Date, Year
 DateStruct.Month   = m2;
 DateStruct.Date    = (pt.substring(4, 6)).toInt();
 DateStruct.Year    = (pt.substring(7,11)).toInt();
 M5.Rtc.SetData(&DateStruct);
 RTC_TimeTypeDef TimeStruct;         // Hours, Minutes, Seconds
 TimeStruct.Hours   = (pt.substring(12,14)).toInt();
 TimeStruct.Minutes = (pt.substring(15,17)).toInt();
 TimeStruct.Seconds = (pt.substring(18,20)).toInt();
 M5.Rtc.SetTime(&TimeStruct);
 // rtc setup end -----------------------------------------------
}
void loop(void){
 if(digitalRead(M5_BUTTON_HOME) == LOW){
   if (mode_ == 3){mode_ = 1;M5.Lcd.fillScreen(BLACK);return;}
   if (mode_ == 2){mode_ = 3;M5.Lcd.fillScreen(BLACK);return;}
   if (mode_ == 1){mode_ = 2;M5.Lcd.fillScreen(BLACK);return;}
 }
 if ( mode_ == 3 ){ vfd_3_line();}   // hh,mm,ss
 if ( mode_ == 2 ){ vfd_2_line();}   // yyyy,mm,dd,hh,mm,ss
 if ( mode_ == 1 ){ vfd_1_line();}   // mm,ss
 delay(500);
}
void vfd_3_line(){
 M5.Rtc.GetTime(&RTC_TimeStruct);
 M5.Rtc.GetData(&RTC_DateStruct);
 int h1 = int(RTC_TimeStruct.Hours / 10 );
 int h2 = int(RTC_TimeStruct.Hours - h1*10 );
 int i1 = int(RTC_TimeStruct.Minutes / 10 );
 int i2 = int(RTC_TimeStruct.Minutes - i1*10 );
 int s1 = int(RTC_TimeStruct.Seconds / 10 );
 int s2 = int(RTC_TimeStruct.Seconds - s1*10 );
 M5.Lcd.pushImage(  2,0,35,67, (uint16_t *)m[h1]);
 M5.Lcd.pushImage( 41,0,35,67, (uint16_t *)m[h2]);
 M5.Lcd.drawPixel( 79,22, ORANGE); M5.Lcd.drawPixel( 79,48,ORANGE);
 M5.Lcd.drawPixel( 79,21, YELLOW); M5.Lcd.drawPixel( 79,47,YELLOW);
 M5.Lcd.pushImage( 83,0,35,67, (uint16_t *)m[i1]);
 M5.Lcd.pushImage(121,0,35,67, (uint16_t *)m[i2]);
 M5.Lcd.pushImage(120,45,18,34, (uint16_t *)n[s1]);
 M5.Lcd.pushImage(140,45,18,34, (uint16_t *)n[s2]);
 if ( s1 == 0 && s2 == 0 ){ fade();}
}
void vfd_2_line(){
 M5.Rtc.GetTime(&RTC_TimeStruct);
 M5.Rtc.GetData(&RTC_DateStruct);
 //Serial.printf("Data: %04d-%02d-%02d\n",RTC_DateStruct.Year,RTC_DateStruct.Month,RTC_DateStruct.Date);
 //Serial.printf("Week: %d\n",RTC_DateStruct.WeekDay);
 //Serial.printf("Time: %02d : %02d : %02d\n",RTC_TimeStruct.Hours,RTC_TimeStruct.Minutes,RTC_TimeStruct.Seconds);
 // Data: 2019-06-06
 // Week: 0
 // Time: 09 : 55 : 26
 int y1 = int(RTC_DateStruct.Year    / 1000 );
 int y2 = int((RTC_DateStruct.Year   - y1*1000 ) / 100 );
 int y3 = int((RTC_DateStruct.Year   - y1*1000 - y2*100 ) / 10 );
 int y4 = int(RTC_DateStruct.Year    - y1*1000 - y2*100 - y3*10 );
 int j1 = int(RTC_DateStruct.Month   / 10);
 int j2 = int(RTC_DateStruct.Month   - j1*10 );
 int d1 = int(RTC_DateStruct.Date    / 10 );
 int d2 = int(RTC_DateStruct.Date    - d1*10 );
 int h1 = int(RTC_TimeStruct.Hours   / 10) ;
 int h2 = int(RTC_TimeStruct.Hours   - h1*10 );
 int i1 = int(RTC_TimeStruct.Minutes / 10 );
 int i2 = int(RTC_TimeStruct.Minutes - i1*10 );
 int s1 = int(RTC_TimeStruct.Seconds / 10 );
 int s2 = int(RTC_TimeStruct.Seconds - s1*10 );
 M5.Lcd.pushImage(  0, 0,18,34, (uint16_t *)n[y1]);
 M5.Lcd.pushImage( 19, 0,18,34, (uint16_t *)n[y2]);
 M5.Lcd.pushImage( 38, 0,18,34, (uint16_t *)n[y3]);
 M5.Lcd.pushImage( 57, 0,18,34, (uint16_t *)n[y4]);
 M5.Lcd.drawPixel( 77,13, ORANGE); M5.Lcd.drawPixel( 77,23,ORANGE);
 M5.Lcd.pushImage( 80, 0,18,34, (uint16_t *)n[j1]);
 M5.Lcd.pushImage( 99, 0,18,34, (uint16_t *)n[j2]);
 M5.Lcd.drawPixel(118,13, ORANGE); M5.Lcd.drawPixel(119,23,ORANGE);
 M5.Lcd.pushImage(120, 0,18,34, (uint16_t *)n[d1]);
 M5.Lcd.pushImage(140, 0,18,34, (uint16_t *)n[d2]);
 M5.Lcd.pushImage( 00,40,18,34, (uint16_t *)n[h1]);
 M5.Lcd.pushImage( 20,40,18,34, (uint16_t *)n[h2]);
 M5.Lcd.drawPixel( 48,54, ORANGE); M5.Lcd.drawPixel( 48,64,ORANGE);
 M5.Lcd.pushImage( 60,40,18,34, (uint16_t *)n[i1]);
 M5.Lcd.pushImage( 80,40,18,34, (uint16_t *)n[i2]);
 M5.Lcd.drawPixel(108,54, ORANGE); M5.Lcd.drawPixel(108,64,ORANGE);
 M5.Lcd.pushImage(120,40,18,34, (uint16_t *)n[s1]);
 M5.Lcd.pushImage(140,40,18,34, (uint16_t *)n[s2]);
 if ( i1 == 0 && i2 == 0 ){ fade();}
}
void vfd_1_line(){
 M5.Rtc.GetTime(&RTC_TimeStruct);
 M5.Rtc.GetData(&RTC_DateStruct);
 int i1 = int(RTC_TimeStruct.Minutes / 10 );
 int i2 = int(RTC_TimeStruct.Minutes - i1*10 );
 int s1 = int(RTC_TimeStruct.Seconds / 10 );
 int s2 = int(RTC_TimeStruct.Seconds - s1*10 );
 M5.Lcd.pushImage(  2,6,35,67, (uint16_t *)m[i1]);
 M5.Lcd.pushImage( 41,6,35,67, (uint16_t *)m[i2]);
 M5.Lcd.drawPixel( 79,28, ORANGE); M5.Lcd.drawPixel( 79,54,ORANGE);
 M5.Lcd.drawPixel( 79,27, YELLOW); M5.Lcd.drawPixel( 79,53,YELLOW);
 M5.Lcd.pushImage( 83,6,35,67, (uint16_t *)m[s1]);
 M5.Lcd.pushImage(121,6,35,67, (uint16_t *)m[s2]);
 if ( s1 == 0 && s2 == 0 ){ fade();}
}
void fade(){
 for (int i=7;i<16;i++){M5.Axp.ScreenBreath(i);delay(25);}
 for (int i=15;i>7;i--){M5.Axp.ScreenBreath(i);delay(25);}
 M5.Axp.ScreenBreath(12);
}
