Published December 13, 2021 © MIT

Let your Arduino Uno play against itself on VGA Monitor

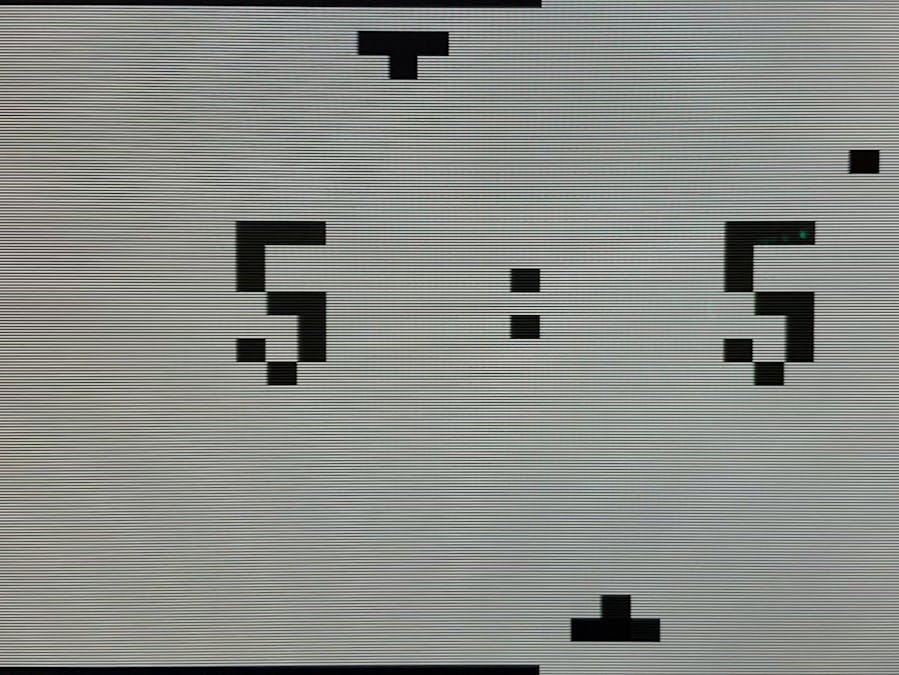

An Arduino Uno plays a kind of shooting game against itself on an old VGA monitor. No additional hardware or library was used.

IntermediateFull instructions provided1 hour471

Let your Arduino Uno play against itself on VGA Monitor

Things used in this project

Hardware components

Arduino UNO

Story

I stumbled over https://www.hackster.io/dhruvw221/arduino-video-game-with-vga-video-output-789f9f where one used the interrupts of an Arduino Uno to drive a VGA display. The resulting 40x30 pixel display even fits into the small dynamic memory of the processor.

I enhanced the project and added a self playing mode. Now you can watch your Arduino play against itself. I even added some text output. Unfortunately there isn't enough dynamic memory for double buffering.

Enjoy.

One side of a VGA cable was cutted and connected to the 4 pins.

Code

Shooting game

/**
 * Pink, Ligh Blue, White (thick core): RGB Pin 2
 * Green (thick core): H-Sync Pin 3
 * Blue (thin core): V-Sync Pin 10
 *
 *
 */




#define nop __asm__("nop \n")


#define SCREEN_W 40
#define SCREEN_H 30

char PXL_DATA [SCREEN_H][SCREEN_W];
int  lineCounter;
char skipLine;
char PXL_OUT;
char colP1 = (SCREEN_W-3) / 2;
char dirP1 = 1;
char rowP1 = 27;
char colP2 = (SCREEN_W-3) / 2;
char dirP2 = -1;
char rowP2 = 3;
bool bulletP1Fired = 0;
char bulletP1X = 0;
char bulletP1Y = 0;
char dyP1;
bool bulletP2Fired = 0;
char bulletP2X = 0;
char bulletP2Y = 0;
char dyP2;

char scoreP1;
char scoreP2;

ISR(TIMER1_OVF_vect)
  {lineCounter = 0;}


ISR(TIMER2_OVF_vect)
  {
    sei();
    __asm__("sleep \n");
  }



ISR(TIMER2_COMPB_vect)
{
  register char  columnCounter;
  register char* rowPtr;

  switch (PXL_OUT){
    case 1:
    rowPtr = &(PXL_DATA[(lineCounter - 35)>>4][0]);
    columnCounter = SCREEN_W;

    while(columnCounter--){
      PORTD = (*(rowPtr++)<<PD2);
      nop;
    }
    nop;
    nop;
    nop;
    PORTD = 0;
    break;
  }

  lineCounter++;
  skipLine = !skipLine;

  if ( skipLine && (lineCounter >= 35) && (lineCounter < 515) ){
    PXL_OUT = 1;
  }
  else{
    PXL_OUT = 0;
  }
}


void setup() {
  cli();                   //DISABLE INTERRUPTS
  PORTD = 0;
  pinMode(10, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(2, OUTPUT);

  //pinMode(A0,INPUT);
  //pinMode(12, INPUT);

  TCCR1A = 0b00100011;     //PIN D10 OUTPUT, FAST PWM MODE
  TCCR1B = 0b00011101;     //FAST PWM, PRESCALER OF 1024
  TIMSK1 = 0b00000001;     //OVERFLOW INTERRUPT ENABLE
  TIFR1  = 0b00000001;     //CLEAR OVERFLOW FLAG
  //TCNT1  = 0;            //rst t1
  TCCR2A = 0b00100011;     //PIN D3 OUTPUT, FAST PWM MODE
  TCCR2B = 0b00001010;     //FAST PWM, PRESCALER OF 8
  TIMSK2 = 0b00000101;     //OVERFLOW INTERRUPT ENABLE
  TIFR2  = 0b00000101;     //CLEAR OVERFLOW FLAG
  //TCNT2  = 0;            //rst t2
  OCR1A  = 259;            //SET FREQ OF T1
  OCR1B  = 0;              //VSYNC PULSE DURATION
  OCR2A  = 63;             //SET FREQ OF T2
  OCR2B  = 7;              //HSYNC PULSE DURATUIN
  SMCR = bit(SE);
  memset(PXL_DATA, 0, sizeof(PXL_DATA));
  lineCounter = 0;
  scoreP1 = 0;
  scoreP2 = 0;
  sei();
}

void gameCode(){
}

void loop()
{
	bool shootP1 = (bulletP1Fired == 0) && (random(0, 100) > 90);
	bool shootP2 = (bulletP2Fired == 0) && (random(0, 100) > 90);

	colP1 = colP1 + dirP1;
	if (colP1 < 0)
	{
		colP1 = 0;
		dirP1 = 1;
	}
	else if (colP1 > (SCREEN_W-3))
	{
		colP1 = SCREEN_W-3;
		dirP1 = -1;
	}
	else
	{
		if (random(0, 10) > 8)
			dirP1 = -1 * dirP1;
	}
	colP2 = colP2 + dirP2;
	if (colP2 < 0)
	{
		colP2 = 0;
		dirP2 = 1;
	}
	else if (colP2 > (SCREEN_W-3))
	{
		colP2 = SCREEN_W-3;
		dirP2 = -1;
	}
	else
	{
		if (random(0, 10) > 8)
			dirP2 = -1 * dirP2;
	}


	if (shootP1 == 1)
	{
		bulletP1Fired = 1;
		dyP1 = 0.0;
		bulletP1X = colP1;
		bulletP1Y = rowP1;
	}
	if ((bulletP1Fired == 1) && (dyP1 < SCREEN_H))
	{
		bulletP1Y = rowP1 - dyP1;
		dyP1 = dyP1 + 1;
	}
	if (dyP1 >= SCREEN_H)
	{
		bulletP1Fired = 0;
		bulletP1Y = SCREEN_H;
	}
	if ((bulletP1Fired == 1) && (bulletP1X >= (colP2-1)) && (bulletP1X <= (colP2+1)) && (bulletP1Y == rowP2))
	{
		colP2 = random(1, 36);
		bulletP1Fired = 0;
		dyP1 = SCREEN_H;
		scoreP1 = scoreP1 + 4;
		if (scoreP1 >= 37)
		{
			scoreP1 = 0;
		}
	}


	if (shootP2 == 1)
	{
		bulletP2Fired = 1;
		dyP2 = 0.0;
		bulletP2X = colP2;
		bulletP2Y = rowP2;
	}
	if ((bulletP2Fired == 1) && (dyP2 < SCREEN_H))
	{
		bulletP2Y = rowP2 + dyP2;
		dyP2 = dyP2 + 1;
	}
	if (dyP2 >= SCREEN_H)
	{
		bulletP2Fired = 0;
		bulletP2Y = SCREEN_H;
	}
	if ((bulletP2Fired == 1) && (bulletP2X >= (colP1-1)) && (bulletP2X <= (colP1+1)) && (bulletP2Y == rowP1))
	{
		colP1 = random(1, 36);
		bulletP2Fired = 0;
		dyP2 = SCREEN_H;
		scoreP2 = scoreP2 + 4;
		if (scoreP2 >= 37)
		{
			scoreP2 = 0;
		}
	}

	screen_refresh();
}

void draw_0(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+0] = 0;
	PXL_DATA[y+3][x+2] = 0;
	PXL_DATA[y+4][x+0] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_1(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+1] = 0;
	PXL_DATA[y+2][x+1] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+4][x+1] = 0;
	PXL_DATA[y+5][x+1] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_2(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+4][x+1] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+6][x+0] = 0;
	PXL_DATA[y+6][x+1] = 0;
	PXL_DATA[y+6][x+2] = 0;
}

void draw_3(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_4(char x, char y)
{
	PXL_DATA[y+0][x+2] = 0;
	PXL_DATA[y+1][x+1] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+0] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+3][x+2] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+2] = 0;
}

void draw_5(char x, char y)
{
	PXL_DATA[y+0][x+0] = 0;
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+0][x+2] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+3][x+2] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_6(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+3][x+0] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+4][x+0] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_7(char x, char y)
{
	PXL_DATA[y+0][x+0] = 0;
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+0][x+2] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+1] = 0;
	PXL_DATA[y+3][x+0] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+3][x+2] = 0;
	PXL_DATA[y+4][x+1] = 0;
	PXL_DATA[y+5][x+1] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_8(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+4][x+0] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_9(char x, char y)
{
	PXL_DATA[y+0][x+1] = 0;
	PXL_DATA[y+1][x+0] = 0;
	PXL_DATA[y+1][x+2] = 0;
	PXL_DATA[y+2][x+0] = 0;
	PXL_DATA[y+2][x+2] = 0;
	PXL_DATA[y+3][x+1] = 0;
	PXL_DATA[y+3][x+2] = 0;
	PXL_DATA[y+4][x+2] = 0;
	PXL_DATA[y+5][x+0] = 0;
	PXL_DATA[y+5][x+2] = 0;
	PXL_DATA[y+6][x+1] = 0;
}

void draw_sep(char x, char y)
{
	PXL_DATA[y+2][x+1] = 0;
	PXL_DATA[y+4][x+1] = 0;
}

void screen_refresh()
{
  char r, c;

  for (r = 0; r < SCREEN_H; r++) {
    for (c = 0; c < SCREEN_W; c++) {
      if ((r == rowP1) &&
        (c >= colP1) &&
        (c < colP1 + 3)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((r == rowP1 - 1) &&
        (c >= colP1 + 1) &&
        (c < colP1 + 2)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((r == rowP2 - 1) &&
        (c >= colP2) &&
        (c < colP2 + 3)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((r == rowP2) &&
        (c >= colP2 + 1) &&
        (c < colP2 + 2)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((bulletP1Fired == 1)&&(r == bulletP1Y) &&
        (c >= bulletP1X + 1) &&
        (c < bulletP1X + 2)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((bulletP2Fired == 1) && (r == bulletP2Y) &&
        (c >= bulletP2X + 1) &&
        (c < bulletP2X + 2)) {
        PXL_DATA[r][c] = 0;
      }
      /*
      else if ((r >= enemyY) &&
        (r < enemyY + 1) &&
        (c >= enemyX) &&
        (c < enemyX + 1)) {
        PXL_DATA[r][c] = 0;
      }
      */
      else if ((r == 0) &&
        (c >= 0) &&
        (c < scoreP1)) {
        PXL_DATA[r][c] = 0;
      }
      else if ((r == 29) &&
        (c >= 0) &&
        (c < scoreP2)) {
        PXL_DATA[r][c] = 0;
      }
      else {
        PXL_DATA[r][c] = 1;
      }
    }
  }

  switch (scoreP1/4)
  {
  case 0:
	draw_0(10, 10);
	break;
  case 1:
	draw_1(10, 10);
	break;
  case 2:
	draw_2(10, 10);
	break;
  case 3:
	draw_3(10, 10);
	break;
  case 4:
	draw_4(10, 10);
	break;
  case 5:
	draw_5(10, 10);
	break;
  case 6:
	draw_6(10, 10);
	break;
  case 7:
	draw_7(10, 10);
	break;
  case 8:
	draw_8(10, 10);
	break;
  case 9:
	draw_9(10, 10);
	break;
  }
  draw_sep(18, 10);
  switch (scoreP2/4)
  {
  case 0:
	draw_0(26, 10);
	break;
  case 1:
	draw_1(26, 10);
	break;
  case 2:
	draw_2(26, 10);
	break;
  case 3:
	draw_3(26, 10);
	break;
  case 4:
	draw_4(26, 10);
	break;
  case 5:
	draw_5(26, 10);
	break;
  case 6:
	draw_6(26, 10);
	break;
  case 7:
	draw_7(26, 10);
	break;
  case 8:
	draw_8(26, 10);
	break;
  case 9:
	draw_9(26, 10);
	break;
  }
}
