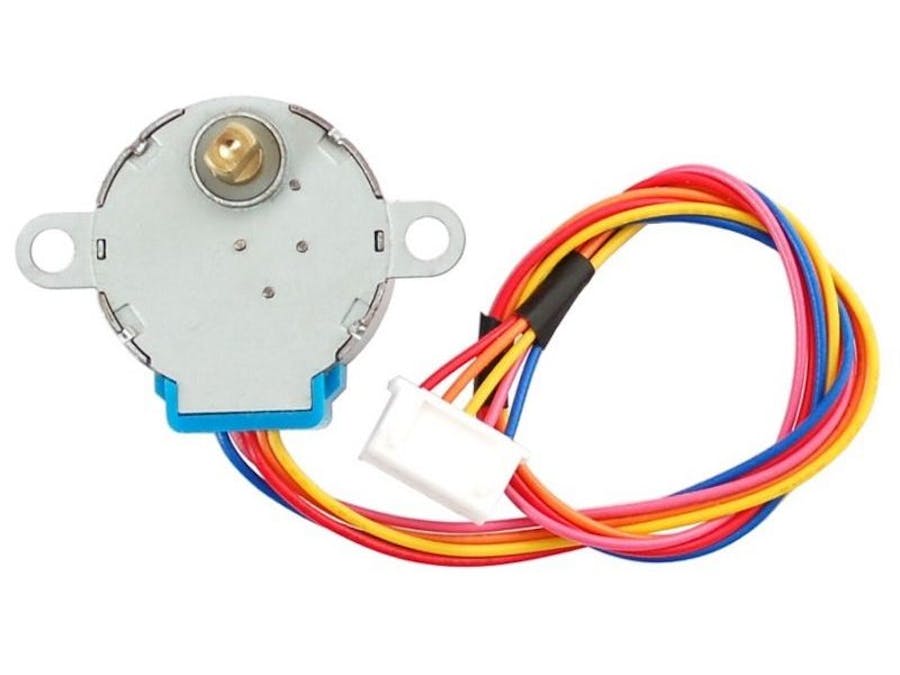

How to Code Step Motor

Applications

In first we must know that Step motor are much more accurate than normal or servo motors.

So they're used in objects which need precision like 3D printers.

But they're slower than other motors.

Operation

The step motor, shown on the right, is made of a magnetic rotor (in grey) with two poles, north and south, as well as a double stator (one part in blue, the other in green): Each of these two parts is associated a winding with a midpoint and two phases.

By feeding either phase, the magnetization can be inverted at the corresponding stator level.

Stator / rotor : The stator is the fixed part of a rotating machine. The rotating part of a machine, called a rotor, rotates normally in the stator. Examples of such machines are pumps and motors.

Definitions sources : Wikipédia

Connections :

9 ( Arduino ) ---> 1N1 ( Motor driver )

11 ( Arduino ) ---> 1N2 ( Motor driver )

10 ( Arduino ) ---> 1N3 ( Motor driver )

6 ( Arduino ) ---> 1N4 ( Motor driver )

12V+ ---> 5V ( Arduino )

5V- ---> GND ( Arduino )

After you have just to set the extremity of the motor wires in the white multipins connector.

For the code, we use the Library <Stepper.h>. Personally, I haven't had to download it, but I you don't have the library : https://github.com/arduino-libraries/Stepper
