Make Solar Powered Inverter

In this video, I’m going to show you how to design a home solar power system by yourself. We will discuss in detail about the things you need, how to calculate the ratings of the components. How to connect them together. You need to design and install a home solar power system for your house or office.

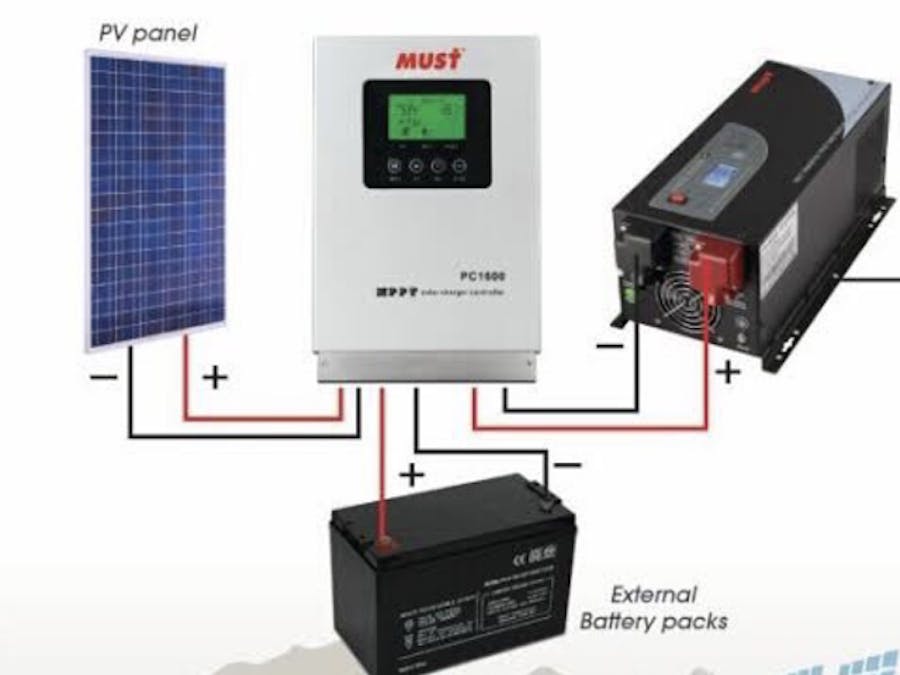

Main Components of a Home Solar Power System

1. Solar Panel 2. Charge controller 3. Battery 4. Inverter

What Is a Solar Panel Module?

A solar panel is a set of solar cells made of silicon to absorb solar energy and convert to electricity. Solar panels can be classified on the basis of structure and wattage. You have to calculate the wattage of the solar-based on the Power consumption Of your property.

What is a Charge Controller?

A charge controller is an electronic device that is used to protect the battery from overcharging, over-discharging thereby increasing battery life. Different types of charge controllers are available in the market.

What is the Battery?

The battery is used to store the solar energy in the chemical form so that we can use it when solar energy is unavailable. Different types of batteries are available in the market. A deep cycle solar battery is best suited because they are affordable. Lithium-Ion batteries are expensive but they are the best performing one.

What is an Inverter?

The battery output is DC (direct current). An Inverter is used to convert that DC to 230 v AC which is the ideal input of the home appliances. We will have to calculate the wattage of the inverter. We will do it later.

How to calculate power Requirements of Your Property?

How to Calculate the Ah of the Battery?

How to calculate the wattage of this the Solar Panel?

How to Connects Them together?

WATCH VIDEO
