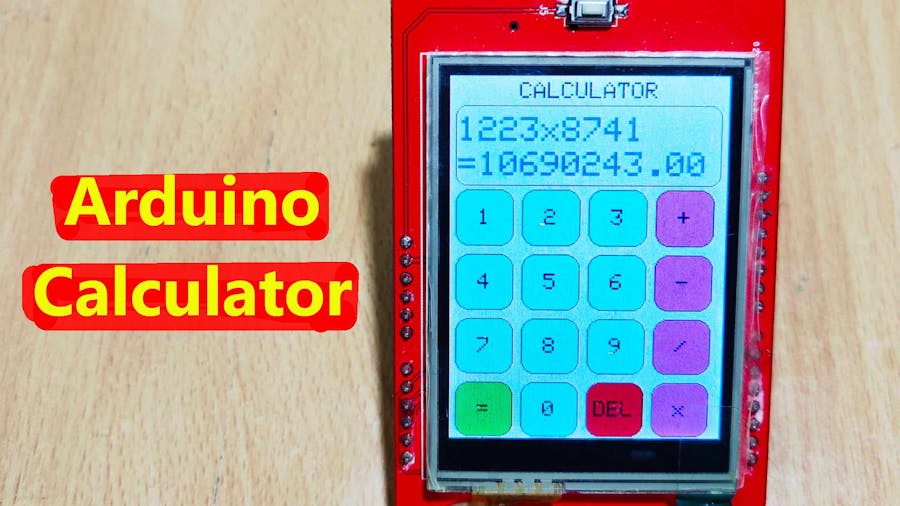

In this tutorial we are going to learn how to make Arduino Calculator with TFT Display. Our calculator’s precision is up to two decimal points and you can add, subtract, multiply or divide up to 4 digit per number. Obviously you can add more number of digits if you want.
You have to just add number by touching on screen, maximum digits per number allowable is 4 and then select operator and add again second number, press on equal. Finally, you got the result on screen, Congratulation you have made your own Arduino Calculator with TFT Display.
Components Required:
Required Libraries:
- mcufriend_kbv
- Adafruit_GFX
- Dependencies Libraries (Touchscreen etc)
Open Arduino IDE. Go to Sketches > include library > Manage Libraries > Type library name > install
Know more about how to add library in Arduino IDE.
Calibrating Touch Screen:
It is very important part of the project, you have to calibrate. if you don’t calibrate touch screen, This project may not work or you will get wrong output when you are pressing touch screen.
Open touch screen calibration code & upload it.
Go to Files → Examples → MCUFRIEND_kbv → TouchScreen_Calibr_native
Follow screen instruction and touch & hold as near as possible to the mark and then release.
After pressing all the mark, you will get the result on screen as well as on serial monitor and I suggest you to open serial monitor, before starting calibration.
Edit this part of code to your screen calibration.
const int TS_LEFT=915,TS_RT=157,TS_TOP=914,TS_BOT=232;Code for Arduino Calculator with TFT Touch Screen Display:
#include <Adafruit_GFX.h>
#include <MCUFRIEND_kbv.h>
MCUFRIEND_kbv tft;
#include <TouchScreen.h>
#define MINPRESSURE 200
#define MAXPRESSURE 1000
//#include <Fonts/FreeSans9pt7b.h>
// ALL Touch panels and wiring is DIFFERENT
// copy-paste results from TouchScreen_Calibr_native.ino
const int XP = 6, XM = A2, YP = A1, YM = 7; //ID=0x9341
const int TS_LEFT=915,TS_RT=157,TS_TOP=914,TS_BOT=232;
TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);
#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
#define BUTTON_X 30
#define BUTTON_Y 123
#define BUTTON_W 51
#define BUTTON_H 50
#define BUTTON_SPACING_X 07
#define BUTTON_SPACING_Y 07
#define BUTTON_TEXTSIZE 2
char buttonlabels[16][5] = { "1", "2", "3","+", "4", "5", "6","-", "7", "8", "9","/","=","0","DEL","x"};
uint16_t buttoncolors[16] = { CYAN,CYAN,CYAN,MAGENTA,CYAN,CYAN,CYAN,MAGENTA,CYAN,CYAN,CYAN,MAGENTA,GREEN,CYAN,RED,MAGENTA };
Adafruit_GFX_Button buttons[16];
int col=0,row=0,z=0, i, j;
#define TEXT_X 5
#define TEXT_Y 25
#define TEXT_W (tft.width()-10)
#define TEXT_H 70
#define TEXT_TSIZE 3
#define TEXT_TCOLOR BLUE
char q;
int presskey;
int pass;
float num1,num2;
int operator_type=0;
#define TEXT_LEN 10
char textfield[TEXT_LEN+1] = "";
uint8_t textfield_i=0;
float result=0;
TSPoint tp;
boolean n=false;
int nc;
float fn; //final number
#define TS_MINX 138
#define TS_MINY 236
#define TS_MAXX 772
#define TS_MAXY 869
void setup() {
Serial.begin(9600);
tft.reset();
uint16_t ID = tft.readID();
Serial.print("TFT ID = 0x");
Serial.println(ID, HEX);
Serial.println("Calibrate for your Touch Panel");
if (ID == 0xD3D3) ID = 0x9486; // write-only shield
tft.begin(ID);
tft.setRotation(0); //PORTRAIT
tft.fillScreen(WHITE);
//welcome screen
uint16_t width = tft.width() - 1;
uint16_t height = tft.height() - 1;
uint8_t border = 10;
tft.fillScreen(YELLOW);
tft.fillRect(border, border, (width - border * 2), (height - border * 2), WHITE);
tft.setTextSize (3);
tft.setTextColor(RED);
tft.setCursor ((tft.width()/2)-85, 85);
tft.println("CALCULATOR");
tft.setCursor ((tft.width()/2)-85, 130);
tft.setTextSize (2);
tft.setTextColor(BLACK);
tft.println("RoboticaDIY.com");
tft.setCursor ((tft.width()/2)-95, 250);
tft.println("Touch to Proceed");
//wait for touch
do {
tp= ts.getPoint();
pinMode(XM, OUTPUT); //Pins configures again for TFT control
pinMode(YP, OUTPUT);
} while((tp.z < MINPRESSURE )|| (tp.z > MAXPRESSURE));
tp.x = map(tp.x, TS_LEFT, TS_RT, 0, tft.width());
tp.y = map(tp.y, TS_TOP, TS_BOT, 0, tft.height());
// round box calculator output screen
tft.fillScreen(WHITE);
tft.setCursor ((tft.width()/2)-60, 5);
tft.setTextSize (2);
tft.setTextColor(BLACK);
tft.println("CALCULATOR");
tft.drawRoundRect(TEXT_X, TEXT_Y, TEXT_W, TEXT_H, 10, BLACK);
// Button initialize
for(int i=0;i<4;i++)
{ for(int j=0;j<4;j++) {
row=i;col=j;
buttons[z].initButton(&tft, BUTTON_X+col*(BUTTON_W+BUTTON_SPACING_X),
BUTTON_Y+row*(BUTTON_H+BUTTON_SPACING_Y), // x, y, w, h, outline, fill, text
BUTTON_W, BUTTON_H, BLACK, buttoncolors[z],BLACK,
buttonlabels[z], BUTTON_TEXTSIZE);
buttons[z].drawButton();
z++; }
}
}
void loop() {
// wait for button press
do {
tp= ts.getPoint();
pinMode(XM, OUTPUT); //Pins configures again for TFT control
pinMode(YP, OUTPUT);
} while((tp.z < MINPRESSURE )|| (tp.z > MAXPRESSURE));
tp.x = map(tp.x, TS_LEFT, TS_RT, 0, tft.width());
tp.y = map(tp.y, TS_TOP, TS_BOT, 0, tft.height());
// clear results
if (n == true){
tft.setCursor(TEXT_X + 2, TEXT_Y+40);
tft.setTextColor(TEXT_TCOLOR, WHITE);
tft.setTextSize(TEXT_TSIZE);
tft.print(" ");
tft.setCursor(TEXT_X + 2, TEXT_Y+10);
tft.print(" ");
n = false;
}
//get the button
for (uint8_t b=0; b<16; b++)
{
if (buttons[b].contains(tp.x, tp.y))
{
buttons[b].press(true); // tell the button it is pressed
q=b;
}
else
{
buttons[b].press(false); // tell the button it is NOT pressed
}
}
Serial.print("value of q: ");
Serial.println(q);
//which button is pressed & what to do
if(q == 3 || q==7 || q==11 || q== 12 || q==14 || q==15 ){
switch (q)
{
case 3: operator_type = 1; pressed_button();animate();display_text(); break;
case 7: operator_type = 2; pressed_button();animate();display_text(); break;
case 11: operator_type = 3; pressed_button();animate();display_text(); break;
case 12: pressed_button();animate(); break;
case 14: pressed_button();animate();clr_button(); break;
case 15: operator_type = 4; pressed_button();animate();display_text(); break;
}
}
else{
switch (q)
{
case 0: nc = 1; pressed_button();animate();display_text(); break;
case 1: nc = 2; pressed_button();animate();display_text(); break;
case 2: nc = 3; pressed_button();animate();display_text(); break;
case 4: nc = 4; pressed_button();animate();display_text(); break;
case 5: nc = 5; pressed_button();animate();display_text(); break;
case 6: nc = 6; pressed_button();animate();display_text(); break;
case 8: nc = 7; pressed_button();animate();display_text(); break;
case 9: nc = 8; pressed_button();animate();display_text(); break;
case 10: nc = 9; pressed_button();animate();display_text(); break;
case 13: nc = 0; pressed_button();animate();display_text(); break;
}
}
if (nc > 0 || q==13){
switch (presskey)
{ // you can add single number (num1/num2) upto 4 digits
case 0: fn = nc; break;
case 1: fn = fn*10 + nc; break;
case 2: fn = fn*10 + nc; break;
case 3: fn = fn*10+ nc; break;
}
Serial.print("presskey: ");
Serial.println (presskey);
nc=0;
presskey++;
delay(200);
}
if(q == 3 || q==7 || q==11 || q== 12 || q==15 ){
if (pass == 0){
presskey=0;
num1 = fn;
pass++;}
else if(pass == 1){
presskey=0;
num2 = fn;
}
}
if (q==12){
switch (operator_type)
{
case 1:result=num1+num2;break;
case 2:result=num1-num2;break;
case 3:result=num1/num2;break;
case 4:result=num1*num2;break;
}
//display result
tft.setCursor(TEXT_X + 2, TEXT_Y+40);
tft.setTextColor(TEXT_TCOLOR, WHITE);
tft.setTextSize(TEXT_TSIZE);
tft.print('=');
tft.print(result);
q=0;
num1 = 0;
num2 = 0;
pass =0;
nc=0;
fn=0;
result=0;
operator_type=0;
char textfield[TEXT_LEN+1] = "";
textfield_i=0;
n=true;
} Serial.print("pass: ");
Serial.println (pass);
Serial.print("fn: ");
Serial.println (fn);
Serial.print("num1: ");
Serial.println (num1);
Serial.print("num2: ");
Serial.println (num2);
Serial.print("operator: ");
Serial.println (operator_type);
Serial.print("result: ");
Serial.println (result);
delay(100);
}
// pressed button
void pressed_button()
{
textfield[textfield_i] = buttonlabels[q][0];
textfield_i++;
textfield[textfield_i] = 0; // zero terminate
}
//Animate
void animate()
{
if (buttons[q].justPressed())
{
buttons[q].drawButton(true); // draw invert!
delay(300);
buttons[q].drawButton();
}
}
//text display
void display_text()
{
tft.setCursor(TEXT_X + 2, TEXT_Y+10);
tft.setTextColor(TEXT_TCOLOR, WHITE);
tft.setTextSize(TEXT_TSIZE);
tft.print(textfield);
}
//clr button
void clr_button()
{
q=0;
num1 = 0;
num2 = 0;
nc=0;
fn=0;
pass =0;
result=0;
char textfield[TEXT_LEN+1] = "";
textfield_i=0;
operator_type=0;
n=true;
}welcome Screen:
When program start, it will show you, welcome screen with some text. Obviously you can change that.
uint16_t width = tft.width() - 1;
uint16_t height = tft.height() - 1;
uint8_t border = 10;
tft.fillScreen(YELLOW);
tft.fillRect(border, border, (width - border * 2), (height - border * 2), WHITE);
tft.setTextSize (3);
tft.setTextColor(RED);
tft.setCursor ((tft.width()/2)-85, 85);
tft.println("CALCULATOR");
tft.setCursor ((tft.width()/2)-85, 130);
tft.setTextSize (2);
tft.setTextColor(BLACK);
tft.println("RoboticaDIY.com");
tft.setCursor ((tft.width()/2)-95, 250);
tft.println("Touch to Proceed");It will wait for touch, As soon as you touch, it will show you Calculator screen.
do {
tp= ts.getPoint();
pinMode(XM, OUTPUT); //Pins configures again for TFT control
pinMode(YP, OUTPUT);
} while((tp.z < MINPRESSURE )|| (tp.z > MAXPRESSURE));
tp.x = map(tp.x, TS_LEFT, TS_RT, 0, tft.width());
tp.y = map(tp.y, TS_TOP, TS_BOT, 0, tft.height());Calculator Screen & Buttons:
Button labels and colors, You can play with this setting.
char buttonlabels[16][5] = { "1", "2", "3","+", "4", "5", "6","-", "7", "8", "9","/","=","0","DEL","x"};
uint16_t buttoncolors[16] = { CYAN,CYAN,CYAN,MAGENTA,CYAN,CYAN,CYAN,MAGENTA,CYAN,CYAN,CYAN,MAGENTA,GREEN,CYAN,RED,MAGENTA };These lines will show calculator output screen with text.
tft.fillScreen(WHITE);
tft.setCursor ((tft.width()/2)-60, 5);
tft.setTextSize (2);
tft.setTextColor(BLACK);
tft.println("CALCULATOR");
tft.drawRoundRect(TEXT_X, TEXT_Y, TEXT_W, TEXT_H, 10, BLACK);Initializing all the buttons using for loop.
for(int i=0;i<4;i++)
{ for(int j=0;j<4;j++) {
row=i;col=j;
buttons[z].initButton(&tft, BUTTON_X+col*(BUTTON_W+BUTTON_SPACING_X),
BUTTON_Y+row*(BUTTON_H+BUTTON_SPACING_Y), // x, y, w, h, outline, fill, text
BUTTON_W, BUTTON_H, BLACK, buttoncolors[z],BLACK,
buttonlabels[z], BUTTON_TEXTSIZE);
buttons[z].drawButton();
z++; }
}Operators:
When you click on equal button, it will present result based on you have selected operator type.
if (q==12){
switch (operator_type)
{
case 1:result=num1+num2;break;
case 2:result=num1-num2;break;
case 3:result=num1/num2;break;
case 4:result=num1*num2;break;
}Adding more number of digit:
By this piece of code you will be able to do calculation maximum four digit per number. What I mean, for example you can click 1378 it is a four digit number, but you can’t 56677. As it contain 5 digit, if you want 5 digits you can add here.
switch (presskey)
{ // you can add single number (num1/num2) upto 4 digits
case 0: fn = nc; break;
case 1: fn = fn*10 + nc; break;
case 2: fn = fn*10 + nc; break;
case 3: fn = fn*10+ nc; break;
}Video:
If you like this kind of content please subscribe to my YouTube Channel for more updates. Till Then Keep Learning Keep Making.
