Arduino Based Piano

I missed playing my piano back home and it has been 2 years since I played it, so I thought of making one with Arduino! Even though it may not look or sound like an actual piano, it does seem to make music.

Setup

Carefully place the buttons on the breadboard. There must be a spacing of one hole between each push-buttons. Due to lack of Digital I/O ports in my Arduino Uno, I have only used keys from C (fourth octave) to F(fifth octave). I have also included F sharp (or G flat) and A sharp (or B flat) in my piano by using two different coloured push-buttons. I have not used the Analog I/O ports because turning on a pullup will affect the values reported by the analogRead( ).

Connections

All push-buttons should be connected to Ground (GND).

Push-buttons

Fourth Octave

• C - D0
• D - D1
• E - D2
• F - D3
• F# - D4
• G - D5
• A - D6
• A# - D7
• B - D8

Fifth Octave

• C - D10
• D - D11
• E - D12
• F - D13

Passive Buzzer Module (KY-006)

• (+) - 5V
• (-) - Ground (GND)
• S - D9

Coding

First of all, create global variables for your push-buttons and your buzzer. Within the void setup( ), call pinMode( ) to configure each of your components' pins as INPUT or OUTPUT. If you have not connected your push-buttons to a 1 kΩ resistor, declare the pins as INPUT_PULLUP. As mentioned in Arduino's tutorial, pressing the push-button will send a LOW signal when its pin is configured as INPUT_PULLUP. Declare the pin of Passive buzzer as OUTPUT because it is a transducer (a component that converts electrical energy into light, heat or sound).

Remember that the push-button is a momentary switch and will only complete the circuit when pressed. If it's released, the circuit will have a gap again. In this case, we will not be debouncing our push-buttons because if you remember quite well, a piano only produces sound when a key is pressed. The keys and momentary switch almost work in the same way, except for the strings that are hammered in the piano when a key is pressed.

Therefore, within the void loop( ), you will be using if( ) and else if( ) to make your piano work. Please refer to this website to get the frequencies of each piano note. Round the values to the nearest whole number before using tone( ) to produce sounds from your passive buzzer. The duration of the sound produced by the buzzer once I press a push-button is 30 milliseconds. You can shorten this duration according to your preferences. For example, if the music is fast, you must shorten the duration as the tone( ) function only works for one pin at a time.

Here is an example of code:

void loop( ){

if ((digitalRead(C4))==LOW){

tone(Buzzer, 262, 30);

}else if ((digitalRead(D4)==LOW){

tone(Buzzer, 294, 30);

}

...

}

If you have any questions with the coding, please feel free to comment below.

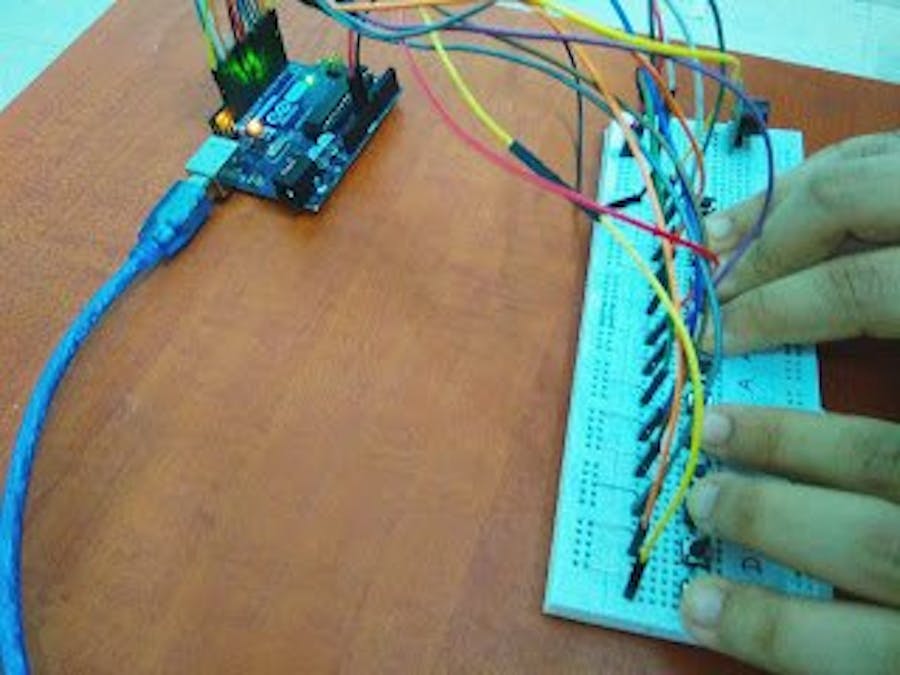

Final Look

If anyone has questions, or suggestions, about this project, please feel free to comment below.
