Automated Lamp with Google Assistant

An automated lamp made with Bolt IoT module. It uses Arduino Nano, HCSR04 and Bolt wifi module.

BeginnerShowcase (no instructions)-60 minutes252

Things used in this project

Hardware components

Arduino Nano R3

Ultrasonic Sensor - HC-SR04 (Generic)

Bolt IoT Bolt WiFi Module

LED (generic)

Software apps and online services

IFTTT Maker service

Google Assistant SDK

Arduino IDE

Story

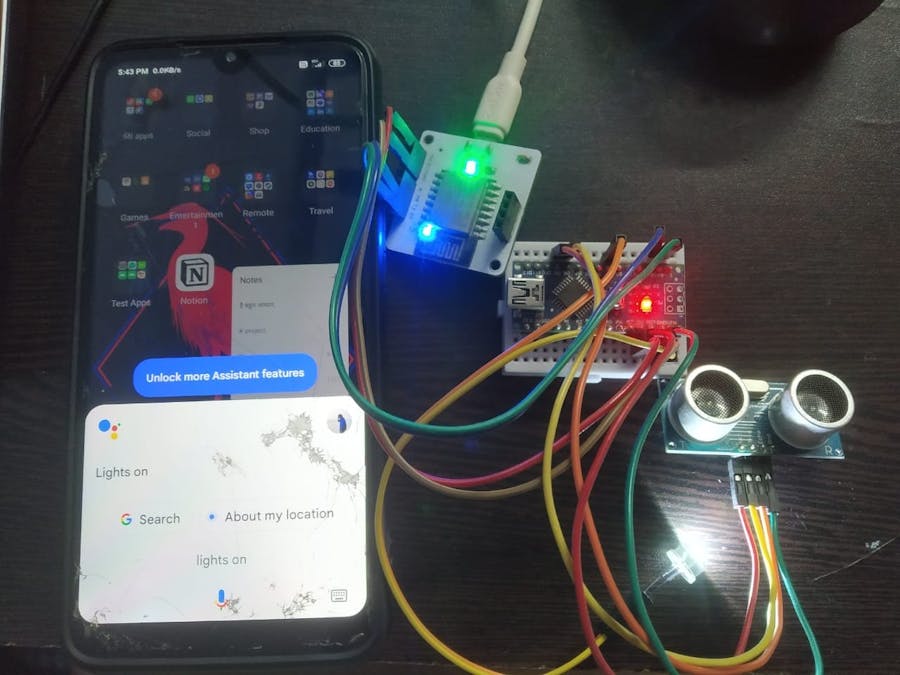

It is a system that turns the lamp on whenever user takes the seat on the table (In front of the Ultrasonic sensor) or requests the google assistance to turn the Light On or Off. The desired location of the device is near the lamp on the table to scan the presence of the user with the ultrasonic sensor. The lamp can also be controlled remotely using the google assistance.

YT Link : https://youtube.com/shorts/cwBZe-hmfFc?feature=share

Hardware Setup

You can set up the circuit from the schematics.

Software Setup

The Arduino code linked below measures the distance using the HC SR04 Ultrasonic distance sensor and receives data from the bolt module to handle the lighting. UART communication has been established between the two modules.

IFTTT applets have been settled up as shown below to control the lights.

The two required applets be:

Lights Off

Lights On

After setting up the ITFFF applet, the google assistant was also settled. After uploading code to the Arduino Nano board you are ready to go.

Conclusion

The project comes in handy in day to day life as the user doesn’t have to bother about switching the lamp on or off as it is all self-controlled or automated using the HCSR04 ultrasonic sensor or using the google assistant. The project turns out to be a success.

Code

Arduino Code

#include <Ultrasonic.h>
Ultrasonic ultrasonic(8, 9);
#define led 4
String status;
const int max_dist=30;
long duration;
int distance;
void setup() {
  pinMode(led, OUTPUT);
  Serial.begin(9600);
}
void loop() {
  distance=ultrasonic.read();
  Serial.println(distance);
  if(distance<max_dist){
    digitalWrite(led, HIGH);
  }else{
    digitalWrite(led, LOW);
  }
  if(Serial.available()!=0){
    status=Serial.readString();
    if (status=="ON"){
      Serial.println("ON");
      digitalWrite(led, HIGH);
      while(Serial.available()==0){}
    }
    if (status=="OFF"){
        digitalWrite(led, LOW);
        Serial.println("OFF");
    }
    }
  delay(1000);
}
