My elderly grandmother has dementia( Alzheimer's ) and is unable to operate her television properly. I developed this universal remote so family members of the elderly can View, in combination with a remote viewing program (Teamviewer) and a webcam, and control a television from home..
This also saves the codes to the EEProm, so if there is a power outage the codes are saved.
We are using it to switch the television between the cable and a laptop (so she can watch videos online).
Use..
Build the 2 circuits.

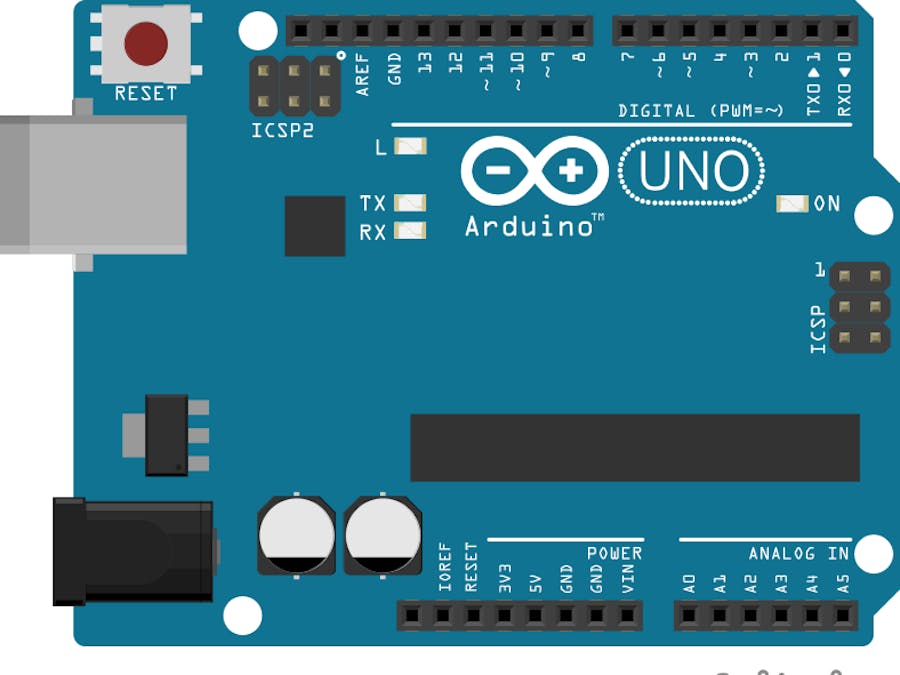

Upload the Sketch to the arduino
Use the serial monitor to see the menu.
press 1 on the menu to configure each button.
Make sure the LED is pointed at the front of the television.
#include <IRremote2.h> // IRremote.h for the Uno IRremote2.h for Due
#include <EEPROM.h>
// IR LED PIN 3
int RECV_PIN = 11; // IR Reciever pin
int KeyInput; // Keyboard Key
unsigned long Code; // Used and Variable Shuttle
unsigned long Address=0; // EEPROM memory Address
IRsend irsend;
IRrecv irrecv(RECV_PIN);
decode_results results;
void setup()
{
Serial.begin(9600);
irrecv.enableIRIn(); // Start the receiver
KeyInput=NULL;
Code=0;
Address=1023;
DisplayMain();
}
void DisplayMain()
{
Serial.println("/======================================\\");
Serial.println("| Main Menu |");
Serial.println("| ----------------- |");
Serial.println("| |");
Serial.println("| 1. Config for IR Button Codes |");
Serial.println("| R. Reload Screen |");
Serial.println("| --------- T.V. Controls ---------- |");
Serial.println("| 2. Power |");
Serial.println("| 3. Input |");
Serial.println("| 4. Menu |");
Serial.println("| 5. Enter |");
Serial.println("| 6. Exit |");
Serial.println("| 7. Caption |");
Serial.println("| 8. Mute |");
Serial.println("| - / +. Volume Down/Up |");
Serial.println("| < / >. Channel Down/Up |");
Serial.println("| W,S,A,D. Up,Down,Left,Right |");
Serial.println("| ------- Cable Box Controls ------- |");
Serial.println("| G. Guide |");
Serial.println("| P,;,L,'. Up,Down,Left,Right |");
Serial.println("| [. Enter |");
Serial.println("| ]. Exit |");
Serial.println("| K. Page Up |");
Serial.println("| ,. Page Down |");
Serial.println("| I. Power |");
Serial.println("\\======================================/");
Serial.print(" >");
}
void DisplayConfig()
{
Serial.println("/======================================\\");
Serial.println("| Button Config Menu |");
Serial.println("| -------------------- |");
Serial.println("| |");
Serial.println("| 1. Return to Main Menu |");
Serial.println("| R. Reload Screen |");
Serial.println("| --------- T.V. Controls ---------- |");
Serial.println("| 2. Power |");
Serial.println("| 3. Input |");
Serial.println("| 4. Menu |");
Serial.println("| 5. Enter |");
Serial.println("| 6. Exit |");
Serial.println("| 7. Caption |");
Serial.println("| 8. Mute |");
Serial.println("| - / +. Volume Down/Up |");
Serial.println("| < / >. Channel Down/Up |");
Serial.println("| W,S,A,D. Up,Down,Left,Right |");
Serial.println("| ------- Cable Box Controls ------- |");
Serial.println("| G. Guide |");
Serial.println("| P,;,L,'. Up,Down,Left,Right |");
Serial.println("| [. Enter |");
Serial.println("| ]. Exit |");
Serial.println("| J,M. Page Up,Down |");
Serial.println("| I. Power |");
Serial.println("\\======================================/");
Serial.print(" >");
}
void loop()
{
KeyInput=NULL;
Code=0;
Address=1023;
if (Serial.available() > 0)
{
KeyInput = Serial.read(); // read the serial input
// Output from Serial is in ASCII
if ((KeyInput == 49) or (KeyInput == 33)) // 1,! Config
{
SubButtonConfig(); // Goto Button Config
}
if ((KeyInput == 50) or (KeyInput == 64)) // 2,@ Power
{
Address=0;
}
if ((KeyInput == 51) or (KeyInput == 35)) // 3,# Input
{
Address=4;
}
if ((KeyInput == 52) or (KeyInput == 36)) // 4,$ Menu
{
Address=8;
}
if ((KeyInput == 53) or (KeyInput == 37)) // 5,% Enter
{
Address=12;
}
if ((KeyInput == 54) or (KeyInput == 94)) // 6,^ Exit
{
Address=16;
}
if ((KeyInput == 55) or (KeyInput == 38)) // 7,& Caption
{
Address=20;
}
if ((KeyInput == 56) or (KeyInput == 42)) // 8,* Mute
{
Address=24;
}
if ((KeyInput == 45) or (KeyInput == 95)) // -,_ Vol down
{
Address=28;
}
if ((KeyInput == 61) or (KeyInput == 43)) // =,+ Vol up
{
Address=32;
}
if ((KeyInput == 60) or (KeyInput == 44)) // <,, Channel down
{
Address=36;
}
if ((KeyInput == 62) or (KeyInput == 46)) // >,. Channel Up
{
Address=40;
}
if ((KeyInput == 119) or (KeyInput == 87)) // W,w Up
{
Address=44;
}
if ((KeyInput == 115) or (KeyInput == 83)) // S,s Down
{
Address=48;
}
if ((KeyInput == 97) or (KeyInput == 65)) //A,a Left
{
Address=52;
}
if ((KeyInput == 100) or (KeyInput == 68)) // d,D Right
{
Address=56;
}
if ((KeyInput == 103) or (KeyInput == 71)) // g,G Guide
{
Address=60;
}
if ((KeyInput == 112) or (KeyInput == 80)) // p,P Up
{
Address=64;
}
if ((KeyInput == 59) or (KeyInput == 58)) // ;,: Down
{
Address=68;
}
if ((KeyInput == 39) or (KeyInput == 34)) // '," Right
{
Address=72;
}
if ((KeyInput == 108) or (KeyInput == 76)) // l,L Left
{
Address=76;
}
if ((KeyInput == 91) or (KeyInput == 123)) // [,{ Enter
{
Address=80;
}
if ((KeyInput == 93) or (KeyInput == 125)) // ],} Exit
{
Address=84;
}
if ((KeyInput == 106) or (KeyInput == 74)) // j,J pageup
{
Address=88;
}
if ((KeyInput == 109) or (KeyInput == 77)) // m,M pagedown
{
Address=92;
}
if ((KeyInput == 105) or (KeyInput == 73)) // i,I Power
{
Address=96; // Next Address 100
}
if ((KeyInput == 114) or (KeyInput == 82)) // r,R Reload
{
DisplayMain();
}
}
if (Address!=1023)
{
irsend.sendNEC(EEPROMReadlong(Address), 32); // Send Power Signal.
}
}
void SubButtonConfig()
{
DisplayConfig();
KeyInput = NULL;
while ((KeyInput!=49) or (KeyInput!=33))
{
Address=1023;
if (Serial.available() > 0)
{
KeyInput = Serial.read(); // read the serial input
// Output from Serial is in ASCII
if ((KeyInput == 49) or (KeyInput == 33)) // 1,! Main Menu
{
DisplayMain();
return;
}
if ((KeyInput == 50) or (KeyInput == 64)) // 2,@ power
{
Address=0;
}
if ((KeyInput == 51) or (KeyInput == 35)) // 3,# input
{
Address=4;
}
if ((KeyInput == 52) or (KeyInput == 36)) // 4,$ menu
{
Address=8;
}
if ((KeyInput == 53) or (KeyInput == 37)) // 5,% enter
{
Address=12;
}
if ((KeyInput == 54) or (KeyInput == 94)) // 6,^ exit
{
Address=16;
}
if ((KeyInput == 55) or (KeyInput == 38)) // 7,& caption
{
Address=20;
}
if ((KeyInput == 56) or (KeyInput == 42)) // 8,* mute
{
Address=24;
}
if ((KeyInput == 45) or (KeyInput == 95)) // -,_ vol down
{
Address=28;
}
if ((KeyInput == 61) or (KeyInput == 43)) // =,+ vol up
{
Address=32;
}
if ((KeyInput == 60) or (KeyInput == 44)) // <,, Channel down
{
Address=36;
}
if ((KeyInput == 62) or (KeyInput == 46)) // >,. Channel Up
{
Address=40;
}
if ((KeyInput == 119) or (KeyInput == 87)) // W,w Up
{
Address=44;
}
if ((KeyInput == 115) or (KeyInput == 83)) // S,s Down
{
Address=48;
}
if ((KeyInput == 97) or (KeyInput == 65)) //A,a Left
{
Address=52;
}
if ((KeyInput == 100) or (KeyInput == 68)) // d,D Right
{
Address=56;
}
if ((KeyInput == 103) or (KeyInput == 71)) // g,G Guide
{
Address=60;
}
if ((KeyInput == 112) or (KeyInput == 80)) // p,P
{
Address=64;
}
if ((KeyInput == 59) or (KeyInput == 58)) // ;,:
{
Address=68;
}
if ((KeyInput == 39) or (KeyInput == 34)) // '," Right
{
Address=72;
}
if ((KeyInput == 108) or (KeyInput == 76)) // l,L Left
{
Address=76;
}
if ((KeyInput == 91) or (KeyInput == 123)) // [,{ Enter
{
Address=80;
}
if ((KeyInput == 93) or (KeyInput == 125)) // ],} Exit
{
Address=84;
}
if ((KeyInput == 106) or (KeyInput == 74)) // j,J pageup
{
Address=88;
}
if ((KeyInput == 109) or (KeyInput == 77)) // m,M pagedown
{
Address=92;
}
if ((KeyInput == 105) or (KeyInput == 73)) // i,I Power
{
Address=96; // Next Address 100
}
if ((KeyInput == 114) or (KeyInput == 82)) // r,R Reload
{
DisplayConfig();
}
}
if (Address != 1023)
{
SubIRrecieve();
EEPROMWritelong(Address, Code);
}
}
DisplayMain(); // Goto Main Menu
return;
}
void SubIRrecieve()
{
irrecv.enableIRIn(); // Start the receiver
Serial.println("Press A button on the remote for the code of that button.");
results.value=0;
irrecv.resume(); // Receive the next value
while (results.value==0)
{
if (irrecv.decode(&results))
{
Serial.println(results.value,HEX); // Print Code
Code = results.value; //Load Signal to Code Shuttle
results.value=0;
irrecv.resume(); // Receive the next value
}
}
}
//This function will write a 4 byte (32bit) long to the eeprom at
//the specified Address to Address + 3.
void EEPROMWritelong(int Address, unsigned long value)
{
//Decomposition from a long to 4 bytes by using bitshift.
//One = Most significant -> Four = Least significant byte
byte four = (value & 0xFF);
byte three = ((value >> 8) & 0xFF);
byte two = ((value >> 16) & 0xFF);
byte one = ((value >> 24) & 0xFF);
//Write the 4 bytes into the eeprom memory.
EEPROM.write(Address, four);
EEPROM.write(Address + 1, three);
EEPROM.write(Address + 2, two);
EEPROM.write(Address + 3, one);
Serial.println("EEPROM write, Successful.");
}
unsigned long EEPROMReadlong(unsigned long Address)
{
//Read the 4 bytes from the eeprom memory.
long four = EEPROM.read(Address);
long three = EEPROM.read(Address + 1);
long two = EEPROM.read(Address + 2);
long one = EEPROM.read(Address + 3);
//Return the recomposed long by using bitshift.
return ((four << 0) & 0xFF) + ((three << 8) & 0xFFFF) + ((two << 16) & 0xFFFFFF) + ((one << 24) & 0xFFFFFFFF);
}
Thanks to z3t0 and enternoescape.
