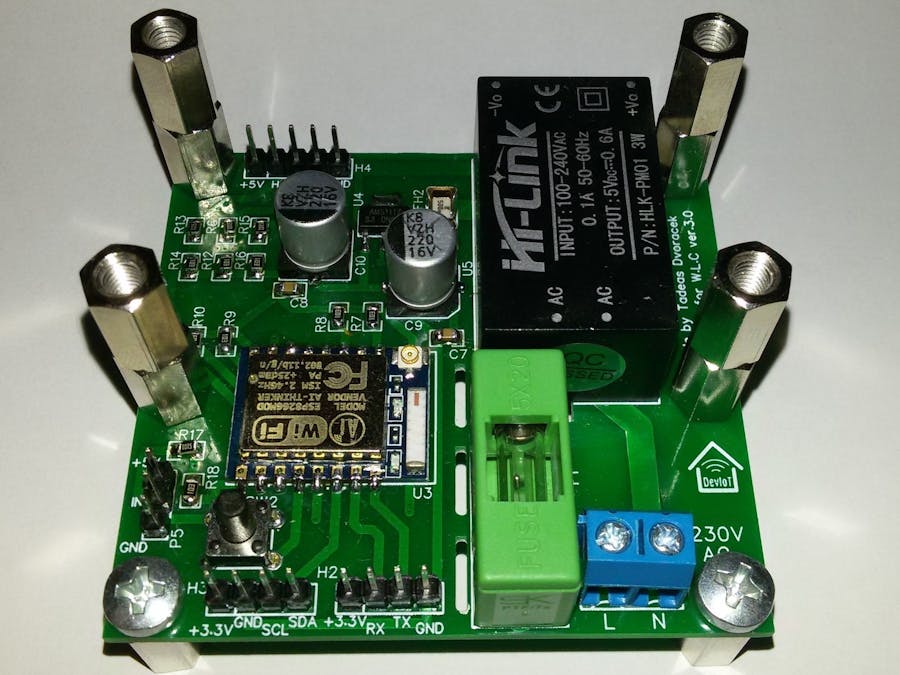

This board is an extension for the water level controller and adds a 230V power supply and ESP8266 for remote monitoring.
Both plates are mechanically connected using M4 screws and nuts. The boards are also connected by 5 wires or jumpers.
Both boards are connected here.
There is an I2C bus output on the board. You can connect HTU21D (temperature and humidity sensor) to it.
There are also pins for programming ESP266 and a reset button on the board.
The board is programmed as SONOFF - press the button, connect the programmer, (ESP8266 is in programming mode) release the button, load the program.
The ESP8266 program sends data to the MQTT server.
The board have also an input for flow sensor.
For overload and short-circuit protection, there is a fuse at the input and output of the power supply.
PCB design. There are cutouts on the PCB to separate the mains voltage lines from the low voltage lines. It's for safety reasons.
You connect mains voltage to the board. Mains voltage is dangerous!!! Be careful!!!
Thank you for reading, please like and write comments.
This project is sponsored by LCSC component.
