Published August 25, 2017 © GPL3+

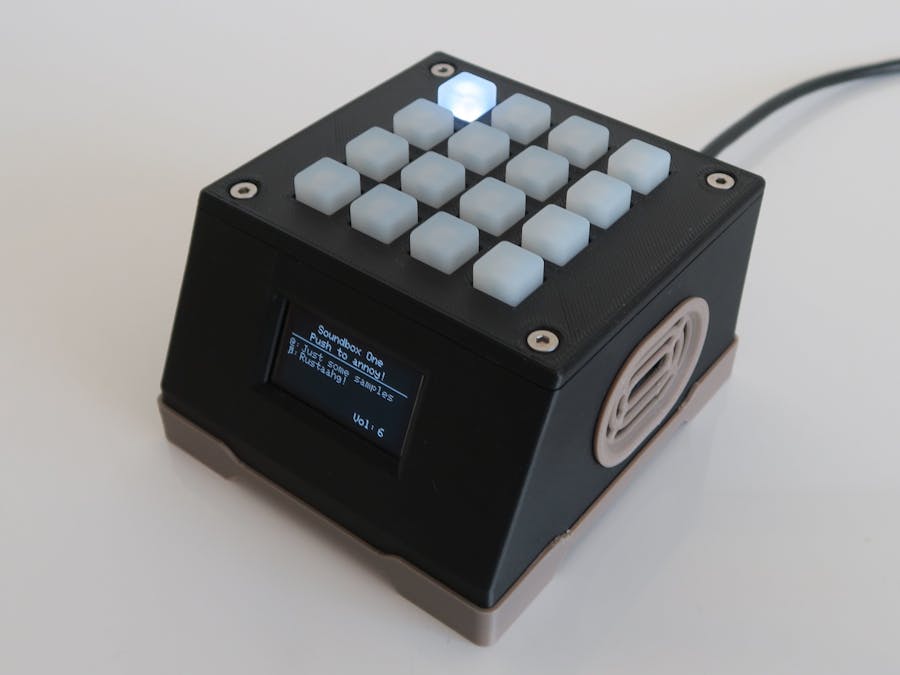

Annoying Soundbox

Sometimes you need to break the silence.

IntermediateFull instructions provided8 hours1,360

Things used in this project

Hardware components

Adafruit Feather M0 Basic Proto

Adafruit Audio FX - 16MB

Adafruit USB Micro-B Breakout Board

Adafruit Trellis

Adafruit Mono 2.5W Class D Audio Amplifier - PAM8302

Adafruit SSD1306 128x64 OLED Display

Adafruit Stereo Enclosed Speaker Set - 3W 4 Ohm

wire, several colors

custom enclosure

Custom PCB

several m3 screws and nuts

LED (choose your color)

Female headers

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)

Soldering iron (generic)

Story

Overview

Playing funny sounds at random times always amused me. With a smartphone this is an easy task. But what's better than an app? Time to create some hardware to play annoying sounds!

This device is easy to operate and holds place for 16 soundboards, each containing 16 sounds. The soundboard can be choosen by pressing button 1 and 16 simultaneously. Now it's in soundboard selection mode. Simply press the desired soundboard button (1-16) and confirm with the same button.

Also the volume can be adjusted, simply by pressing button 1 and 16 simultaneously. Now it's in volume set mode. Simply press the desired volume button (1-16) and confirm with the same button.

Fabrication time!

Step 1

First, start by printing all the enclosure parts.

While the printer creates all the parts, start assembling the custom PCB and solder the 16 led's for the trellis board.

Custom PCB

First solder the headers on. Then start connecting the Trellis pad, OLED and Amp.

Assembled PCB

please note, this version of the pcb has some wrong text. This is corrected in the supplied design.

Take the enclosure mid part and slide 8 nuts into the nut holders.

Step 2

Now take the enclosure mid and put in the PCB holder. After that you can slide in the speakers and the Oled.

PCB holder, speakers and oled into place

Attach the PCB on the PCB holder using 3 screws and nuts. Then attach the speakers to the amp (in series). After uploading all your sounds to the Audio FX board, you can put this board on the PCB.

Attached PCB and connected Audio FX board

Step 3

Now you can attach the Micro USB connector + cable to the bottom of the enclosure. Also screw the bottom to the mid part of the enclosure. Attach the USB to the feather and slide it into place on the PCB.

Now put the trellis holder on top of the speakers.

Trellis holder

Put the trellis board on top of the trellis holder.

Trellis board

Step 4

Now put the silicone buttons on top of the trellis board. After that you can put the top cover on the enclosure. Secure with 4 screws.

Silicone buttons

Top cover

At the end, put the speaker covers and the feet into place.

Speaker covers and feet

Last but not least, insert the soundboard and audio file names in the code and upload it through the USB connector on the rear side.

Have fun!

Schematics

Code

Arduino Code

/*********************************************************************
/*
Soundbox V2 code by WT040
Some snpippets of code are copied from the Adafruit library examples

History:
v2.0.0	25/08/2017 release version
*/
/*********************************************************************/
#include <Wire.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Adafruit_Trellis.h>
#include "Adafruit_Soundboard.h"
#include "Arduino.h"
#include "wiring_private.h"

#define OLED_RESET 19
Adafruit_SSD1306 display(OLED_RESET);

#define NUMFLAKES 10
#define XPOS 0
#define YPOS 1
#define DELTAY 2

#define LOGO16_GLCD_HEIGHT 16
#define LOGO16_GLCD_WIDTH  16

Adafruit_Trellis matrix0 = Adafruit_Trellis();
Adafruit_TrellisSet trellis = Adafruit_TrellisSet(&matrix0);
#define NUMTRELLIS 1

#define numKeys (NUMTRELLIS * 16)
#define INTPIN A2

#define SFX_RST 9
Uart Serial2(&sercom1, 11, 10, SERCOM_RX_PAD_0, UART_TX_PAD_2);
Adafruit_Soundboard sfx = Adafruit_Soundboard(&Serial2, NULL, SFX_RST);

boolean trackPlaying = false;
int trackToPlay = -1;

word volume = 10;

char* trackName = "";
char subTrackName[15] = "";

//edit this code to give the soundboards a name
char* soundBoards[] = {
	"Soundboard 1",
	"Soundboard 2",
	"Soundboard 3",
	"Soundboard 4",
	"Soundboard 5",
	"Soundboard 6",
	"Soundboard 7",
	"Soundboard 8",
	"Soundboard 9",
	"Soundboard 10",
	"Soundboard 11",
	"Soundboard 12",
	"Soundboard 13",
	"Soundboard 14",
	"Soundboard 15",
	"Soundboard 16"
};

//edit this code to give the sounda a (file) name
char* trellisPad1[16][16][2] = {
	{	//Soundboard 1
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 2
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 3
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 4
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 5
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 6
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 7
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 8
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 9
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 10
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 11
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 12
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 13
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 14
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 15
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},

	{	//Soundboard 16
		{ "T01RAND4WAV","test track" },
		{ "T01RAND4WAV","test track 2" },
		{ "00000003WAV","3" },
		{ "00000004WAV","4" },
		{ "00000005WAV","5" },
		{ "00000006WAV","6" },
		{ "00000007WAV","7" },
		{ "00000008WAV","8" },
		{ "00000009WAV","9" },
		{ "00000010WAV","10" },
		{ "00000011WAV","11" },
		{ "00000012WAV","12" },
		{ "00000013WAV","13" },
		{ "00000014WAV","14" },
		{ "00000015WAV","15" },
		{ "00000016WAV","16" }
	},


};

int amountOfKeysPressed = 0;
int trellisKeysPressed[16] = { false,false,false,false,false,false,false,false,false,false,false,false,false,false,false,false };
int volumeModeBtns[16] = { 1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0 };
word currentSoundboard = 0;
#define modePlay 1
#define modeSetVolume 2
#define modeSetSoundboard 3
int mode = modePlay;

void SERCOM1_Handler(){
	Serial2.IrqHandler();
}

void setup() {
	Serial.begin(9600);
	display.begin(SSD1306_SWITCHCAPVCC, 0x3D);

	pinMode(INTPIN, INPUT);
	digitalWrite(INTPIN, HIGH);
	trellis.begin(0x70);

	display.clearDisplay();
	display.display();
	display.setTextSize(1);
	display.setTextColor(WHITE);
	display.setCursor(0, 0);
	display.setTextWrap(false);
	display.println("Soundbox v2");
	display.display();

	Serial2.begin(9600);
	pinPeripheral(10, PIO_SERCOM);
	pinPeripheral(11, PIO_SERCOM);

	if (!sfx.reset()) {
		Serial.println("Not found");
		display.println(F("Couldn't find soundboard"));
		display.display();
		while (1);
	}
	else {
		display.println(F("soundboard found"));
		display.display();
	}

	delay(2000);
	volume = sfx.volDown();
	while (volume != 0) {
		if (volume > 0) {
			volume = sfx.volDown();
		}
	}

	while (volume < 120) {
		volume = sfx.volUp();
	}
	volume = 10;

	showTrellisStartSequence();
	showIdleDisplay();
}


void loop() {
	if (!trackPlaying) {
		readTrellis();
		delay(250);
		readTrellis();
	}
	delay(30);

	checkInput();
	if (trackPlaying && (trackToPlay > -1)) {
		playTrack(trackToPlay);
	}
}

void readTrellis() {
	if (trellis.readSwitches()) {
		// go through every button
		for (uint8_t i = 0; i < numKeys; i++) {
			if (trellis.justPressed(i)) {
				trellisKeysPressed[i] = true;
			}
			if (trellis.justReleased(i)) {
				trellisKeysPressed[i] = false;
			}
		}
	}
}

void checkInput() {
	amountOfKeysPressed = 0;
	for (uint8_t i = 0; i < numKeys; i++) {
		// if it was pressed...
		if (trellisKeysPressed[i] == true) {
			amountOfKeysPressed++;
		}
	}

	if (amountOfKeysPressed == 1) {
		for (uint8_t i = 0; i < numKeys; i++) {
			if ((trellisKeysPressed[i] == true) && (mode == modePlay)) {
				trackToPlay = i;
				playTrack(trackToPlay);
			}

			if ((trellisKeysPressed[i] == true) && (mode == modeSetVolume)) {
				if (i == volume) {
					mode = modePlay;
					for (uint8_t i = 0; i < numKeys; i++) {
						trellis.clrLED(i);
					}
					trellis.blinkRate(0);
					trellis.writeDisplay();
				}

				else if (i < 16) {
					clearVolume();

					while (i > volume) {
						for (int t = 1; t < 12; t++) {
							sfx.volUp();
						}
						volume++;
					}

					while (i < volume) {
						for (int t = 1; t < 12; t++) {
							sfx.volDown();
						}
						volume--;
					}
					printVolume();

					for (uint8_t i = 0; i < numKeys; i++) {
						if (i <= volume) {
							trellis.setLED(i);
						}
						else {
							trellis.clrLED(i);
						}
					}

					trellis.writeDisplay();
				}
			}

			if ((trellisKeysPressed[i] == true) && (mode == modeSetSoundboard)) {
				if (i == currentSoundboard) {
					mode = modePlay;
					for (uint8_t i = 0; i < numKeys; i++) {
						trellis.clrLED(i);
					}
					trellis.blinkRate(0);
					trellis.writeDisplay();
				}
				else {
					trellis.clrLED(currentSoundboard);
					clearSoundboardName();
					currentSoundboard = i;
					printSoundboardName();
					trellis.setLED(currentSoundboard);
					trellis.writeDisplay();
				}
			}
		}
	}
	if (amountOfKeysPressed == 2) {
		Serial.println("2 buttons!");
		if (trellisKeysPressed[0] && trellisKeysPressed[15]) {
			mode = modeSetVolume;
			trellis.blinkRate(1);
			for (uint8_t i = 0; i < numKeys; i++) {
				if (i <= volume) {
					trellis.setLED(i);
				}
				else {
					trellis.clrLED(i);
				}
			}
			trellis.writeDisplay();
		}

		if (trellisKeysPressed[0] && trellisKeysPressed[1]) {
			mode = modeSetSoundboard;
			trellis.blinkRate(1);
			trellis.setLED(currentSoundboard);
			trellis.writeDisplay();
		}
	}

	for (uint8_t i = 0; i < numKeys; i++) {
		trellisKeysPressed[i] = false;
	}
}

void playTrack(int key) {
	uint32_t current, total;
	trackPlaying = true;
	trackName = trellisPad1[currentSoundboard][key][1];
	display.setCursor(14, 31);

	if (strlen(trackName) > 18) {
		strncpy(subTrackName, trackName, 15);
		display.print(subTrackName);
		display.print("...");
	}
	else {
		display.print(trackName);
	}


	display.display();
	trellis.setLED(key);
	trellis.writeDisplay();
	Serial.println(trellisPad1[currentSoundboard][key][0]);
	sfx.playTrack(trellisPad1[currentSoundboard][key][0]);

	delay(1000);
	if (!sfx.trackTime(&current, &total))
		Serial.println("Failed to query");
	Serial.print(current); Serial.println(" seconds");

	delay ((total*1000)+2000);

	trellis.clrLED(key);
	trellis.writeDisplay();
	trackPlaying = false;
	trackToPlay = -1;
	display.setCursor(14, 31);
	display.setTextColor(BLACK);
	if (strlen(trackName) > 18) {
		strncpy(subTrackName, trackName, 15);
		display.print(subTrackName);
		display.print("...");
	}
	else {
		display.print(trackName);
	}
	display.display();
	display.setTextColor(WHITE);
}

uint32_t trackLength(char trackName) {
	uint32_t trash, length;

	sfx.trackTime(&trash, &length);
	Serial.println(length);
	return length;
}

void showTrellisStartSequence() {
	for (uint8_t i = 0; i<numKeys; i++) {
		trellis.setLED(i);
		trellis.writeDisplay();
		delay(50);
	}
	for (uint8_t i = 0; i<numKeys; i++) {
		trellis.clrLED(i);
		trellis.writeDisplay();
		delay(50);
	}
}

void showIdleDisplay() {
	display.setTextSize(1);
	display.clearDisplay();
	display.setCursor(30, 0);
	display.print("Soundbox 2");
	display.setTextSize(1);
	display.setCursor(20, 10);
	display.print("Push to annoy!");
	display.drawLine(0, 19, 128, 19, WHITE);
	display.setCursor(0, 31);
	display.write(14);
	display.print(": ");
	display.setCursor(83, 56);
	display.print("Vol: ");
	display.display();
	printSoundboardName();
	printVolume();
}

void printSoundboardName() {
	display.setTextSize(1);
	display.setTextColor(WHITE);
	display.setCursor(0, 23);
	display.write(64);
	display.print(": ");
	display.setCursor(14, 23);
	display.print(soundBoards[currentSoundboard]);
	display.display();
}

void clearSoundboardName() {
	display.setTextSize(1);
	display.setCursor(14, 23);
	display.setTextColor(BLACK);
	display.print(soundBoards[currentSoundboard]);
	display.display();
}


void printVolume() {
	display.setCursor(110, 56);
	display.setTextColor(WHITE);
	display.print(volume, DEC);
	display.display();
}

void clearVolume() {
	display.setCursor(110, 56);
	display.setTextColor(BLACK);
	display.print(volume, DEC);
	display.display();
}

Annoying Soundbox

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Overview

Step 1

Step 2

Step 3

Step 4

Custom parts and enclosures

Enclosure bottom

Enclosure mid

Enclosure top

Feather PCB holder

Feet

Speaker cover (print 2x)

Trellis holder

Schematics

PCB

Code

Arduino Code

Credits

WT040

Comments

Embed the widget on your own site

Annoying Soundbox

Annoying Soundbox

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Overview

Step 1

Step 2

Step 3

Step 4

Custom parts and enclosures

Enclosure bottom

Enclosure mid

Enclosure top

Feather PCB holder

Feet

Speaker cover (print 2x)

Trellis holder

Schematics

PCB

Code

Arduino Code

Credits

WT040

Comments

Related channels and tags
