Star Trek (LCARS) Home Automation Control Panel

When 2 classic sci-fi franchises collide. We build a Star Trek style control panel for our 2001 Space Odyssey style home automation system.

IntermediateFull instructions provided6 hours28,902
Star Trek (LCARS) Home Automation Control Panel

Things used in this project

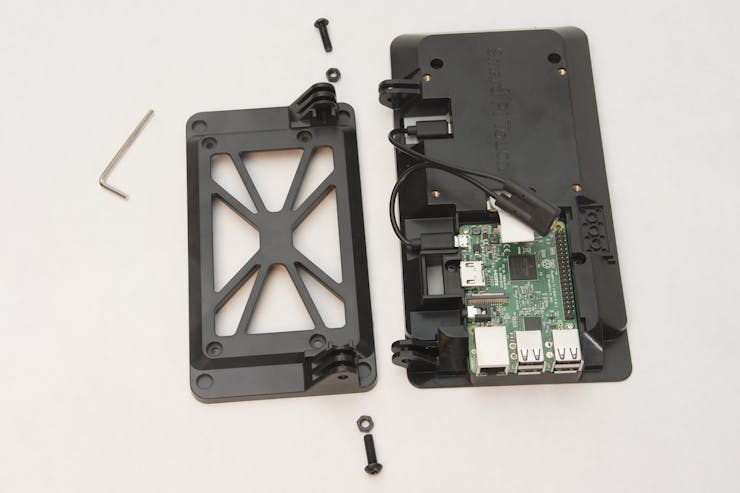

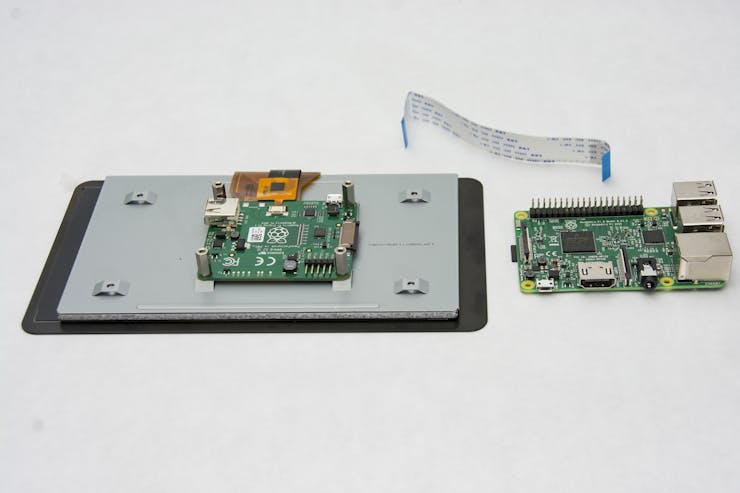

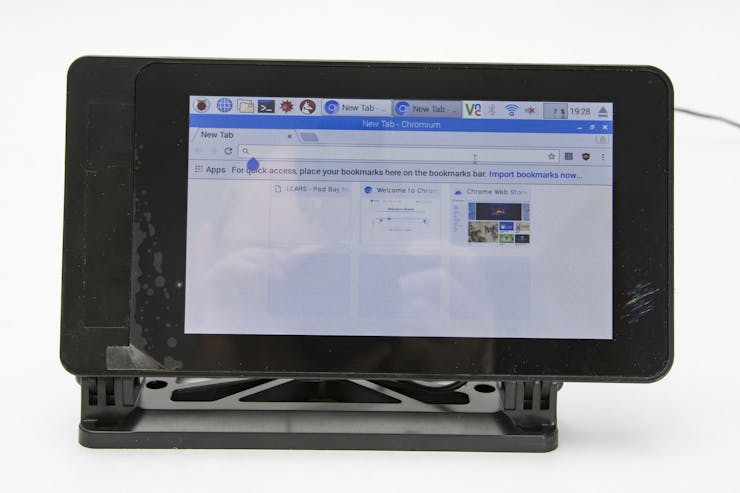

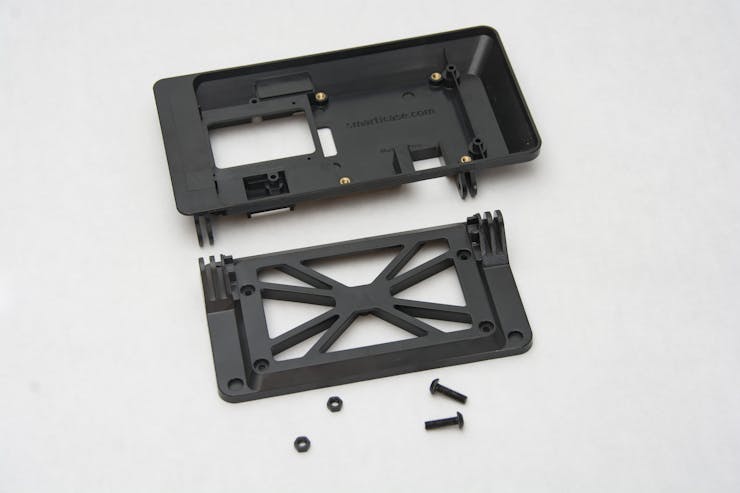

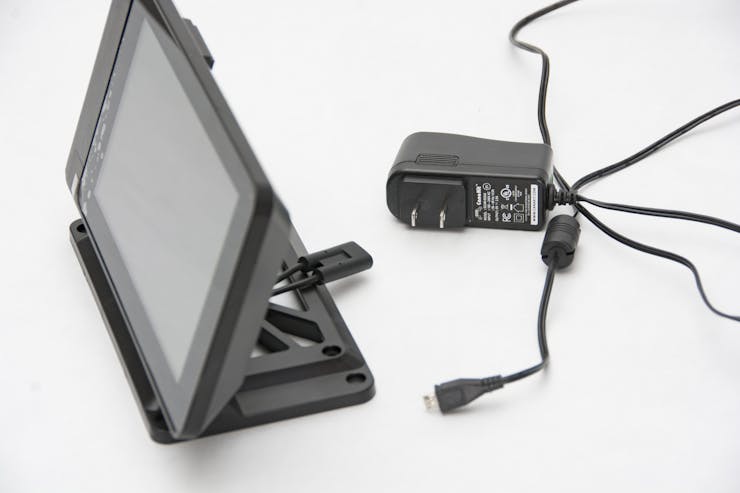

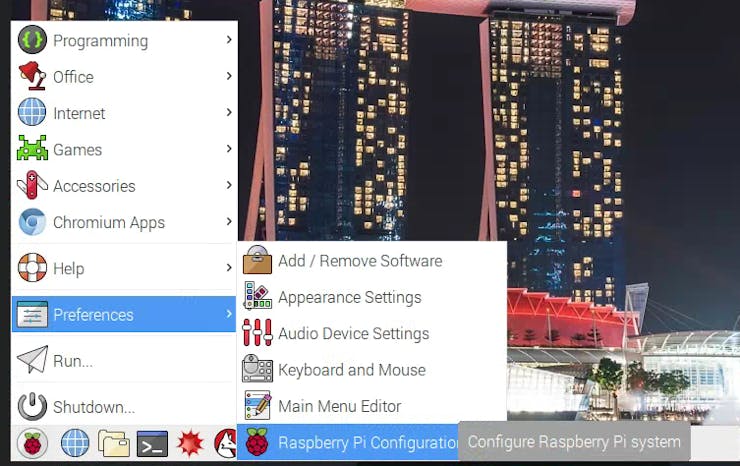

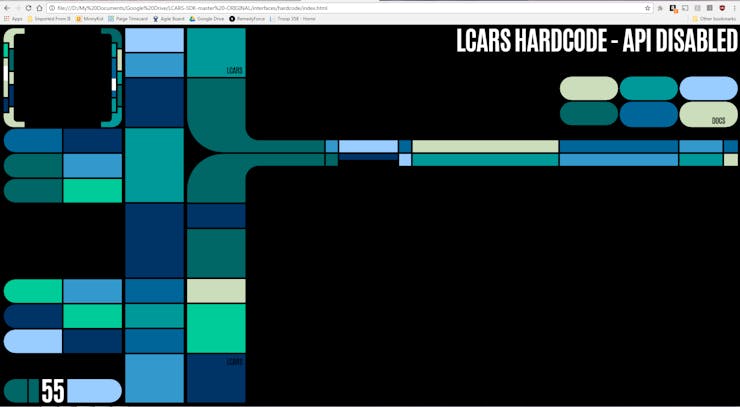

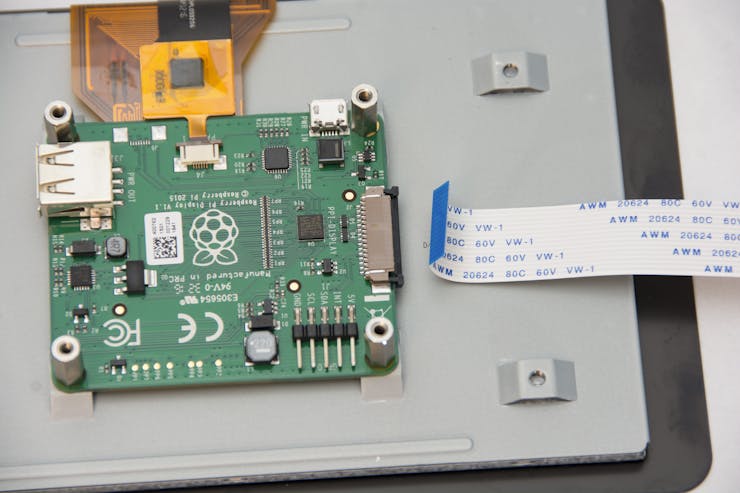

Story

Read more

Schematics

High-Level Architecture

Here are the major components that our LCARS panel will interact with.

Code

The HTML page

HTML
Here is index.html. The heart and soul of our interface
<!-- IRRIGATION -->

<!-- LCARS SDK 16323.311
- This file is a part of the LCARS SDK.
- https://github.com/AricwithanA/LCARS-SDK/blob/master/LICENSE.md
- For more information please go to http://www.lcarssdk.org.
-->

<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
    <meta name="format-detection" content="telephone=no" />
    <meta name="viewport" content="user-scalable=no, initial-scale=1, maximum-scale=1, minimum-scale=1, width=1600, height=960" />

    <title>LCARS | Irrigation Sub-System</title>

    <!--<base href="/">-->

    <link rel="stylesheet" type="text/css" href="../lcarssdk/css/lcarssdk.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/addons/scrollbutton/scrollbutton.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/addons/levelbar/levelbar.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/templates/bracket/bracket.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/templates/dialog/dialog.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/templates/framing/framing.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/templates/button/button.css">
    <link rel="stylesheet" type="text/css" href="../lcarssdk/themes/theme_ussNotAffiliated.css">

    <link rel="stylesheet" type="text/css" href="module.css"></head>

</head>

<body ontouchstart="" onload="">


<div class="wrapper row flexh" id="wpr_viewport">

    <!--Main Frame-->
    <div class="wrapper column flexv flexch" id="wpr_mainView">
        <!--Header-->
        <div class="row header flexh">
            <!--Header Column-->
            <div class="column flexv">
                <a class="button bg-green-3"  data-label="LCARS - 7102" href="../garage"></a>
                <div class="elbow bottom-left bg-green-4 flexcv default horizontal">
                    <div class="bar">
                        <div class="block"></div>
                    </div>
                </div>
            </div>
            <div class="wrapper flexch flexv">
                <!--Header Content-->
                <div class="wrapper content flexcv">
			<div class="title">Pod Bay - Irrigation Sub-System</div>
 			<div class="subtitle">Star Date:&nbsp; <span id="StarDate"></span></div>
                </div>
                <!--Header Bar Row-->
                <div class="row frame flexh">
                    <div class="bar bg-blue-2"></div>
                    <div class="bar bg-blue-1"></div>
                    <div class="bar bg-blue-3"></div>
                    <div class="bar bg-green-1 flexch"></div>
                    <div class="bar bg-blue-3"></div>
                    <div class="bar bg-blue-2"></div>
                    <div class="bar bg-blue-3"></div>
                </div>
            </div>
        </div>
        <!--Body-->
        <div class="wrapper main flexh flexcv">
            <!--Body Button Column-->
            <div class="wrapper column flexv">
                <div class="elbow top-left bg-green-4 step-two default horizontal">
                    <div class="bar">
                        <div class="block"></div>
                    </div>
                </div>
                <div class="block bg-blue-4 step-two" data-label="Zone 1"></div>
                <div class="block bg-green-4 step-two" data-label="Zone 2"></div>
                <div class="block bg-green-1 step-two" data-label="Zone 3"></div>
                <div class="block bg-green-2 step-two" data-label="Zone 4"></div>
		<div class="block bg-green-1 step-two" data-label="Zone 5"></div>
		<div class="block bg-green-4 step-two" data-label="Zone 6"></div>
                <div class="block bg-blue-4 step-two" data-label="Zone 7"></div>
               <div class="elbow bottom-left bg-green-4 flexcv default horizontal">
                    <div class="bar">
                        <div class="block"></div>
                    </div>
                </div>

            </div>

            <!--Body Bar Row-->
            <div class="column flexch flexv">
                <div class="row flexh frame">
                    <div class="bar bg-green-4"></div>
                    <div class="bar bg-blue-4 small"></div>
                    <div class="bar bg-blue-1"></div>
                    <div class="bar bg-green-3 flexch"></div>
                    <div class="bar bg-blue-2"></div>
                    <div class="bar bg-green-3"></div>
                    <div class="bar bg-green-1"></div>
                </div>
<!-- **** Body Content ********************************************** -->

		<!-- ZONE 1 -->
		<div class="row BodyHeader"><div class="column BodyHeader"></div></div>
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_1_status"></div>
			<div class="column Timer" id="zone_1_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z1_on" data-altlabel="On" href="javascript:ZoneSwitch('1','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z1_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('1','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z1_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 2 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_2_status"></div>
			<div class="column Timer" id="zone_2_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z2_on" data-altlabel="On" href="javascript:ZoneSwitch('2','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z2_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('2','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z2_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 3 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_3_status">Off</div>
			<div class="column Timer" id="zone_3_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z3_on" data-altlabel="On" href="javascript:ZoneSwitch('3','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z3_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('3','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z3_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 4 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_4_status">Off</div>
			<div class="column Timer" id="zone_4_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z4_on" data-altlabel="On" href="javascript:ZoneSwitch('4','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z4_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('4','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z4_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 5 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_5_status">Off</div>
			<div class="column Timer" id="zone_5_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z5_on" data-altlabel="On" href="javascript:ZoneSwitch('5','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z5_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('5','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z5_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 6 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_6_status">Off</div>
			<div class="column Timer" id="zone_6_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z6_on" data-altlabel="On" href="javascript:ZoneSwitch('6','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z6_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('6','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z6_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>

		<!-- ZONE 7 -->
		<div class="row Zone">
			<div class="column ZoneStatus" id="zone_7_status">Off</div>
			<div class="column Timer" id="zone_7_timer"></div>
			<div class="column On"><a class="button left bg-blue-3" id="button_z7_on" data-altlabel="On" href="javascript:ZoneSwitch('7','ON')"></a></div>
			<div class="column Off"><a class="button right bg-green-3" id="button_z7_off" data-altlabel="Off" style="text-align:right;" href="javascript:ZoneSwitch('7','OFF')"></a></div>
			<div class="column Schedule"><div class="button pill bg-green-1" id="button_z7_sched" data-altlabel="Schedule" style="text-align:center;"></div></div>
		</div>


<!-- **** End Body Content ********************************************** -->
		<!-- Body Footer -->
                <div class="wrapper content flexcv" style=" overflow:auto;"></div>
                <div class="row frame flexh">
                    <div class="bar bg-blue-2"></div>
                    <div class="bar bg-blue-1"></div>
                    <div class="bar bg-blue-3"></div>
                    <div class="bar bg-green-1 flexch"></div>
                    <div class="bar bg-blue-3" data-label="A Hobbs Squad Joint"></div>
                    <div class="bar bg-blue-2"></div>
                    <div class="bar bg-blue-3"></div>
                </div>


            </div>
        </div>
    </div>
</div>

<!-- JS -->
<script language="javascript">
	var sd = new Worker("../scripts/StarDate.js");
        sd.onmessage = function(event)
        {
            document.getElementById("StarDate").textContent = event.data;
        };

	function ZoneSwitch(zone, command)
	{
		var req = new XMLHttpRequest();
		req.open("POST", "http://192.168.1.169:8080/rest/items/sprinkler_z" + zone + "_switch", true);
		req.setRequestHeader("Content-Type", "text/plain");
		req.setRequestHeader("Accept", "application/json");
		req.send(command);
	}
</script>

<!-- Web Workers -->
<script  type="text/javascript">
	<!-- Zone 1 -->
	var ws1 = new Worker("workers/poll_zone_1_status.js");
        ws1.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_1_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_1_status").style.color = 'red';
            }
            document.getElementById("zone_1_status").textContent = event.data;
        };
	var wt1 = new Worker("workers/poll_zone_1_time.js");
        wt1.onmessage = function(event)
        {
            document.getElementById("zone_1_timer").textContent = event.data;
        };

	<!-- Zone 2 -->
	var ws2 = new Worker("workers/poll_zone_2_status.js");
        ws2.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_2_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_2_status").style.color = 'red';
            }
            document.getElementById("zone_2_status").textContent = event.data;
        };
	var wt2 = new Worker("workers/poll_zone_2_time.js");
        wt2.onmessage = function(event)
        {
            document.getElementById("zone_2_timer").textContent = event.data;
        };

       	<!-- Zone 3 -->
	var ws3 = new Worker("workers/poll_zone_3_status.js");
        ws3.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_3_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_3_status").style.color = 'red';
            }
            document.getElementById("zone_3_status").textContent = event.data;
        };
	var wt3 = new Worker("workers/poll_zone_3_time.js");
        wt3.onmessage = function(event)
        {
            document.getElementById("zone_3_timer").textContent = event.data;
        };

       	<!-- Zone 4 -->
	var ws4 = new Worker("workers/poll_zone_4_status.js");
        ws4.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_4_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_4_status").style.color = 'red';
            }
            document.getElementById("zone_4_status").textContent = event.data;
        };
	var wt4 = new Worker("workers/poll_zone_4_time.js");
        wt4.onmessage = function(event)
        {
            document.getElementById("zone_4_timer").textContent = event.data;
        };

       	<!-- Zone 5 -->
	var ws5 = new Worker("workers/poll_zone_5_status.js");
        ws5.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_5_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_5_status").style.color = 'red';
            }
            document.getElementById("zone_5_status").textContent = event.data;
        };
	var wt5 = new Worker("workers/poll_zone_5_time.js");
        wt5.onmessage = function(event)
        {
            document.getElementById("zone_5_timer").textContent = event.data;
        };

       	<!-- Zone 6 -->
	var ws6 = new Worker("workers/poll_zone_6_status.js");
        ws6.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_6_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_6_status").style.color = 'red';
            }
            document.getElementById("zone_6_status").textContent = event.data;
        };
	var wt6 = new Worker("workers/poll_zone_6_time.js");
        wt6.onmessage = function(event)
        {
            document.getElementById("zone_6_timer").textContent = event.data;
        };

       	<!-- Zone 7 -->
	var ws7 = new Worker("workers/poll_zone_7_status.js");
        ws7.onmessage = function(event)
        {
            if (event.data == 'ON')
            {
                document.getElementById("zone_7_status").style.color = 'green';
            }
            else
            {
                document.getElementById("zone_7_status").style.color = 'red';
            }
            document.getElementById("zone_7_status").textContent = event.data;
        };
	var wt7 = new Worker("workers/poll_zone_7_time.js");
        wt7.onmessage = function(event)
        {
            document.getElementById("zone_7_timer").textContent = event.data;
        };
</script>
</body>
</html>

The primary CSS file

CSS
Here is module.css. Most of our CSS tweaks happened here.
/** LCARS SDK 16323.311
* This file is a part of the LCARS SDK.
* https://github.com/AricwithanA/LCARS-SDK/blob/master/LICENSE.md
* For more information please go to http://www.lcarssdk.org.
**/

#wpr_viewport{
	width:100%;
	height:100%;
	padding:10px;
	text-align:left;
	width:1600px;
	height:960px;
}

#wpr_viewport > .column:first-child{
	width:305px;
	margin-right:5px;
}

#wpr_viewport > .column:first-child .button-wrap:last-child{margin-top:195px;}

.bracket{
	width:305px;
	height:255px;
}

.button-wrap{
	flex-wrap:wrap;
	width:100%;
	margin-top:0;
	padding-top:5px;
}

.button-wrap .button{
	margin-bottom:5px;
	margin-left:5px;
}

.button-wrap .button:nth-last-child(2),
.button-wrap .button:nth-last-child(2) ~ .button{margin-bottom:0px;}
.button-wrap .button:nth-child(odd){margin-left:0px !important;}

.header .title{
	width: auto;
#	margin-left:15px;
	overflow: hidden;
	text-overflow: clip;
	white-space: normal;
#	font-size:25px;
#	letter-spacing: -1px;
}

.header .subtitle{
	padding-top:10px;
	padding-left:5px;
	font-size:32px;
	color:yellow;
}

#wpr_mainView{margin-left:10px;}
#wpr_mainView > .header{height:170px;}

#wpr_mainView > .header .column{
	width:150px;
	overflow:visible;
}

#wpr_mainView > .header .column .elbow .bar{
	width:209px;
#	height:15px;
	right:-204px;
}

.header .row.frame{padding-left:204px;}

.main .column{
	left:0px;
	top:0px;
	bottom:0px;
	width:150px;
	overflow:visible;
}

.main .column:first-child .elbow .bar{
	width:209px;
#	height:15px;
}


.main .column .BodyHeader {
	height:59px;
}

.main .column .ZoneStatus {
	padding-top:20px;
	padding-left:45px;
	max-width:150px;
	height:77px;
	text-align:left;
	vertical-align:middle;
	font-size:42px;
}

.main .column .Timer {
	padding-top:20px;
	padding-left:15px;
	width:250px;
	height:77px;
	text-align:left;
	vertical-align:middle;
	text-align:left;
	color:blue;
	font-size:42px;
}

.main .column .On {
	padding-top:20px;
	width:175px;
	height:77px;
#	text-align:left;
#	color:green;
}

.main .column .Off {
	padding-top:20px;
	width:175px;
	height:77px;
}

.main .column .Schedule {
	padding-top:20px;
	padding-left:200px;
	width:375px;
	height:77px;
}

.main .row.frame {
	padding-left:209px;
	height:15;
}

.main .content{
	padding-top:35px;
	padding-left:35px;
}

.frame .bar:nth-child(2){
	width:100%;
	max-width:150px;
}

.frame .bar:nth-child(5){
	width:100%;
	max-width:305px;
}

.frame .bar:nth-child(6){
	width:100%;
	max-width:110px;
}

.frame .bar:nth-child(7){
	width:100%;
	max-width:35px;
}

.header .button-wrap{
	position:absolute;
	bottom:35px;
	right:0px;
	width:460px;
}

.header .button-wrap .button{margin-left:5px !important;}
.header .button-wrap .button:first-child:nth-last-child(2),
.header .button-wrap .button:first-child:nth-last-child(2) ~ .button{margin-bottom:0px;}
.header .button-wrap .button:nth-child(3n+1),
.header .button-wrap .button:first-child{margin-left:0px !important;}

.titlebar_col1 {
	width:555px;
}

.titlebar_col2 {
	width:100px;
}


/* Static Pattern Heights */
.step-two{flex:1; max-height:125px;}
.step-three{flex:2; max-height:190px; min-height:125px}
.step-four{flex:3; max-height:255px;}

@media (max-width:1150px), (max-height:745px){
	body{zoom:.75;}
}

@media (max-width:860px), (max-height:558px){
	body{zoom:.5;}
}


Star Date Web Worker

JavaScript
This is the javascript file that provides the star date for the page's sub-title
function StarDate() {
  var today = new Date();
  var rawYear = today.getFullYear().toString();
  var year = rawYear.substr(3,1) + rawYear.substr(2,1) + rawYear.substr(1,1) + rawYear.substr(0,1);
  var day = today.getDate().toString();
  if (day.length < 2)
  {
    day = '0' + day;
  }
  var month = (today.getMonth()+1).toString();
  if (month.length < 2)
  {
    month = '0' + month;
  }
  var StarDate = year + day + '.' + month;
  var hour = today.getHours();
  var ampm = 'am'
  if (hour > 12)
  {
    hour = (hour - 12).toString();
    ampm = 'pm'
  }
  else
  {
    hour = hour.toString();
  }
  var minutes = today.getMinutes().toString();
  if (minutes.length < 2)
  {
    minutes = '0' + minutes;
  }
  var seconds = today.getSeconds().toString();
  if (seconds.length < 2)
  {
    seconds = '0' + seconds;
  }
  StarDate = StarDate + '   ' + hour + ':' + minutes + ':' + seconds + ' ' + ampm;
  postMessage(StarDate);
  setTimeout("StarDate()",1000);
}

StarDate();

Web worker to poll status for a zone

JavaScript
Here is the javascript file that polls HAL for zone 1's status. Additional files exist, 1 for each zone. The only difference being, the zone numberj
function poll_zone_1_status() {
    var theUrl = "http://192.168.1.169:8080/rest/items/sprinkler_z1_switch/state";
    var xmlHttp = new XMLHttpRequest();
    xmlHttp.open( "GET", theUrl, false ); // false for synchronous request
    xmlHttp.send( null );
    postMessage(xmlHttp.responseText);
    setTimeout("poll_zone_1_status()",1000);
}

poll_zone_1_status();

Web worker to poll time remaining for a zone

JavaScript
Here is the javascript code that polls for the time remaining for zone 1. Additional files exist, 1 for each zone. The only difference being the zone number.
function poll_zone_1_time() {
    var theUrl = "http://192.168.1.169:8080/rest/items/sprinkler_z1_time/state";
    var xmlHttp = new XMLHttpRequest();
    xmlHttp.open( "GET", theUrl, false ); // false for synchronous request
    xmlHttp.send( null );
    postMessage(xmlHttp.responseText);
    setTimeout("poll_zone_1_time()",1000);
}

poll_zone_1_time();

Credits

Jon Hobbs

Jon Hobbs

9 projects • 27 followers
Just a Minnesota kid hanging out in Kansas

Comments
