Analog Read-speaker

Play and change the pitches using potentiometer

BeginnerFull instructions provided495

Things used in this project

Hardware components

Arduino UNO

Speaker: 0.25W, 8 ohms

Rotary potentiometer (generic)

Jumper wires (generic)

Software apps and online services

Arduino IDE

Story

a potentiometer to port A0

a speaker to port 2

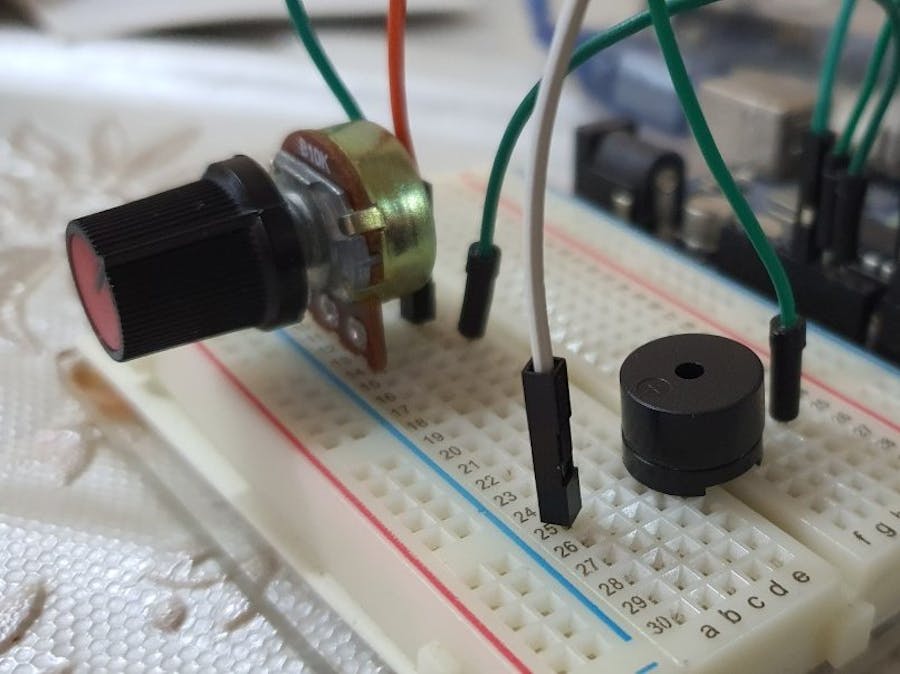

the circuit

the code:

#include "pitches.h"

int speakerPin = 2;
int notes[] = {
 0, NOTE_AS1,NOTE_A2,NOTE_GS3,NOTE_G4,NOTE_FS5,NOTE_F6,NOTE_E7,NOTE_DS8
};
void setup() {
pinMode(A0,INPUT);
pinMode(speakerPin,OUTPUT);
}
void loop() {
 int sensor = analogRead(A0);
 int S = map(sensor,0,1023,0,9);
 int P = notes[S];
tone(speakerPin,P,100);
}

------------------------------

how to use this project:

download the following code, then do the circuit and use the project!

------------------------------

the explanation for the code:

 #include "pitches.h"

"pitches.h" is a C Header file, it should be in the same folder with the project.

int notes[] = {
 0, NOTE_AS1,NOTE_A2,NOTE_GS3,NOTE_G4,NOTE_FS5,NOTE_F6,NOTE_E7,NOTE_DS8
};

"notes[]" is an array that contains the notes to be played.

int sensor = analogRead(A0);

"sensor" is an integer contains the reading of the sensor.

int S = map(sensor,0,1023,0,9);

"S" is an integer contains "map()" function to make fewer cases for sensor reading.

 int P = notes[S];

"p" is an integers shows which note should be played.

tone(speakerPin,P,100);

play the tone "int P" repeatedly.
