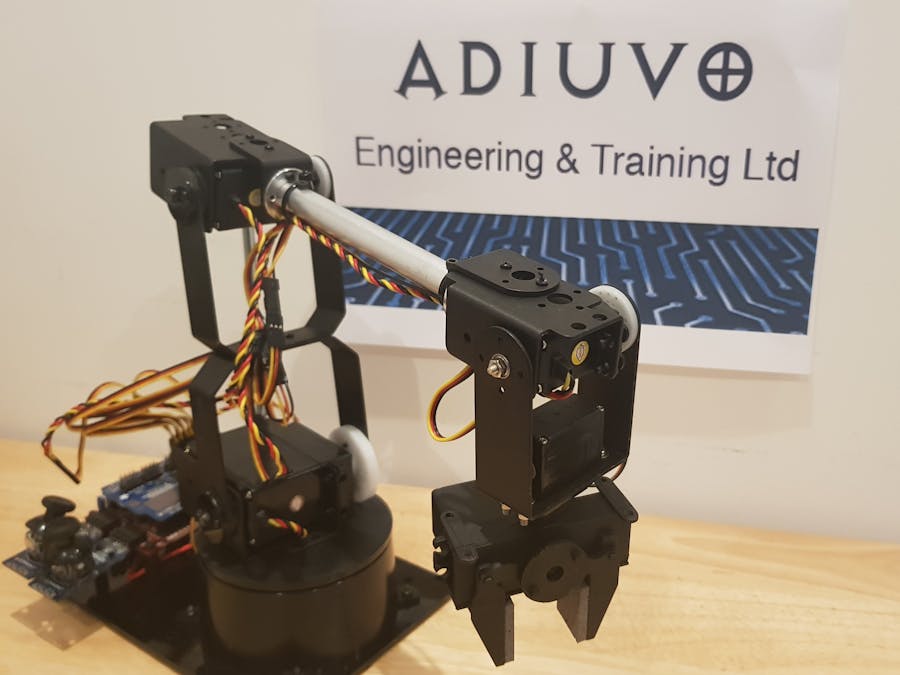

FPGA/SoC Controlled Robot Arm

Introduction

Robotics are at the forefront of the Industry 4.0 and edge revolution along with artificial intelligence and machine learning.

As such I thought it would be fun to create a base robot arm project we can come back to and add in several features such as:

• Inverse kinematics - determine the position of the end-effector.
• AI / ML - object classification during operation.
• Networked control - enabling remote control at the edge.

This example will use a robot arm which uses six servos under the control of a Zynq SoC. It will be controllable using either a simple software interface or using two Pmod joysticks to enable direct control.

Servo Control

The first thing we need to do is work out how we are going to control the Servo Position. Servos are one of the simplest motors to drive, and idea for robotics as they also hold position provided we maintain the same drive signal.

So what is the drive signal for a servo? Most Servos in the class we are using, use a 60Hz PWM waveform. In the 16.66 ms period of the 60Hz waveform, the signal will be high between 0.5 ms and 2, 5 ms. The duration of the signal will drive the servo in a range of motion between 0 and 180 degrees.

Driving a 0.5 ms pulse drives the 0 degree position while 2.5 ms will result in the 180 degrees. 90 Degrees therefore is maintained by driving the signal high for 1.5 ms.

Therefore increasing of decreasing the pulse width by 13.9 us moves the servo by 1 degree.

While we have the triple timer counters which are capable of providing the PWM signals necessary. We would also need to supply servo power at 6 volts in this application, therefore the simplest manner to make use of the Adafruit PWM Shield. This not only provides 6v power but also performs the level conversion on the PWM signal.

The next thing to work out is how to drive the signals, the PWM shield uses four 8-bit registers to drive each PWM signal.

The device on the shield the PCA9685 uses a 4096 bit counter. The on registers define the count at which the signal goes high and the off the count at which the signal goes low.

As such we can always set the on time to 0 and then define the count at which we turn the signal off, to give us the width of signal required.

Vivado Build

To be able to interface with the Pmod Joysticks and the PWM shield we need to first create a design in Vivado. This design will contain the following IP blocks

• Zynq PS - This is the Zynq Processing System
• Pmod Joystick 2 - Interface to the Pmod
• AXI IIC - I2C interface implemented in the PL

To use the Pmod IP cores we need to have the Digilent Vivado library mapped in as a IP repository. If you do not have it you can obtain the repository here, you also need the Cora board definition installed, if you are missing these you can download them here.

Once we have the block diagram complete we can build the design and export it to software.

Software Design

It is in the software that we are going to be developing most of the application. As we want to use this in several modes and come back to it in the future for upgrades we need a modular approach.

As such I developed a function for each joint which can be called and used as desired. Each joint is capable of taking in a unsigned 8 bit value, this 8 bit value is then either added or subtracted from a the 90 degree (1.5 ms) pulse width to obtain the angle desired.

I did this for several reasons:

• A single RS232 byte can contain the desired motor position.
• Values read in from the joysticks are also 8 bits.

How we use the joysticks is interesting they give direct control over the arm. As such we need to ensure the movement between the joystick and arm aligns.

Of the two joysticks the first one is connected to JA and the second the JB.

JA when moved in the X direction will move the arm forwards or backwards, when moved in the Y direction it will move the arm up and down.

JB when moved in the X direction will rotate the wrist, while moved in the Y direction it will move the wrist up and down.

If you are paying close attention you will be thinking that we have not addressed the rotation of the arm around its base or the operation of the gripper.

We control these by using the triggers however, when the Pmods are connected to the Arm it is difficult to reach the triggers below.

Instead we will be using pushing down on the joystick itself. If we press down on JB then the end gripper will close and stay closed until we release it.

To rotate around the base we use the same trick pressing down on JA and the rotating in the Y direction will rotate the Arm around its base.

The code for each of these movement functions is very similar and available on my GitHub however, for reference the up down function is provided below

void up_dwn(u8 YData){
	SendBuffer[0] = 0x0A;
	SendBuffer[1] = 0x00;
	XIic_Send(iic.BaseAddress,IIC_SLAVE_ADDR,(u8 *)&SendBuffer, sizeof(SendBuffer),XIIC_STOP);
	SendBuffer[0] = 0x0B;
	SendBuffer[1] = 0x00;
	XIic_Send(iic.BaseAddress,IIC_SLAVE_ADDR,(u8 *)&SendBuffer, sizeof(SendBuffer),XIIC_STOP);
	SendBuffer[0] = 0x0C;
	u16 signal;
	if( YData < 128 ){
		signal = 122 + (YData * 1.91);
	}
	else if (YData == 128){
		signal = 369;
	}
	else{
		signal = 369 + ((YData - 128) * 1.91);
	}
	u8 cent_l_off, cent_h_off;
	cent_l_off = (u8)signal;
	cent_h_off = (u8) (signal>>8);
	SendBuffer[1] = cent_l_off;
	XIic_Send(iic.BaseAddress,IIC_SLAVE_ADDR,(u8 *)&SendBuffer, sizeof(SendBuffer),XIIC_STOP);
	SendBuffer[0] = 0x0D;
	SendBuffer[1] = cent_h_off;
	XIic_Send(iic.BaseAddress,IIC_SLAVE_ADDR,(u8 *)&SendBuffer, sizeof(SendBuffer),XIIC_STOP);
	}

The remainder of the software application structure is:

• Initialize the PWM shield and Pmod joysticks.
• Perform a self test of the Arm and position all servos at 90 degrees.
• Enter a look to receive commands via RS232 or commands from the joystick.

Of course we can also if we desire hard code in commands to perform a repetitive tasks.

Initial Testing

Once the Vivado build and initial software are available the next step is to ensure the software is capable of moving the servo correctly. I did this before I connected the servos to the PWM shield just in case I had something incorrect.

Using a oscilloscope I was able to measure the PWM signal as I moved the joystick about.

The pulse width moved from 0.5 ms to 2.5 ms gradually as the joystick was moved.

When I put this together the arm worked as expected and we can control it however desired within the envelope of movement.

As can be seen below in the video the Arm is moving about quite happily under control of the Zynq SoC.

Future Work

We will come back to this arm in future projects to add to the functionality such as inverse kinematics. I will also consider taking it to the conferences I am at if anyone wants to see it in action or drive it using the joysticks.

You can find the files associated with this project here:

https://github.com/ATaylorCEngFIET/Hackster
