Hardware components | ||||||
 |
| × | 1 | |||
 |
| × | 1 | |||
Software apps and online services | ||||||
 |
| |||||

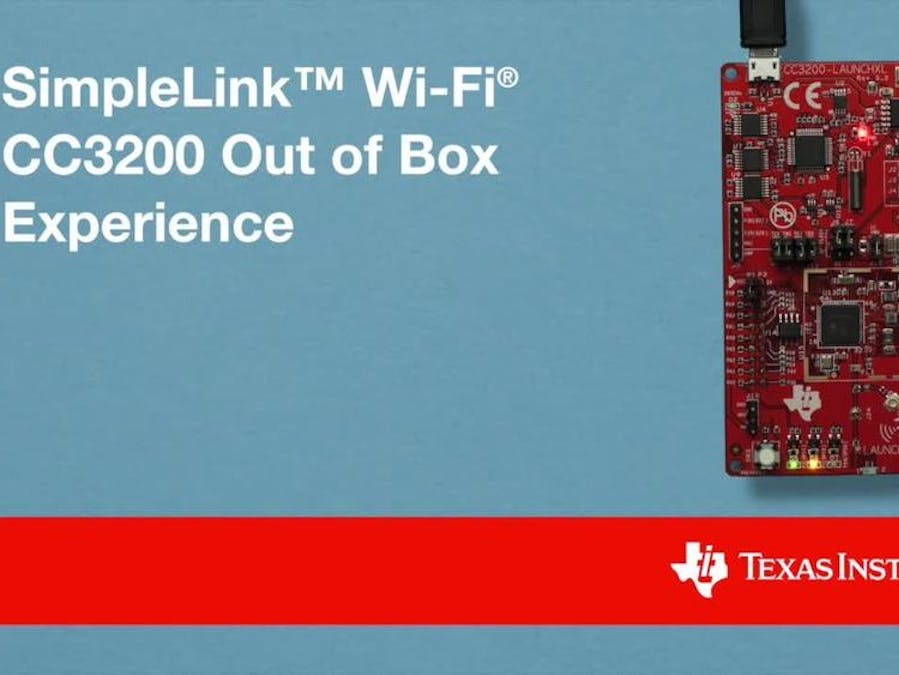

The SimpleLink™ Wi-Fi® CC3200 LaunchPad™ development kit (with QFN-packaged device) is an evaluation development platform for the CC3200 wireless microcontroller (MCU), the industry’s first single-chip programmable MCU with built-in Wi-Fi connectivity Know more about CC3200 from TI's website
Let's start with setting up the CC3200 LaunchPad™
Part I: Installation and settings of CCS:- If you have not already done, follow the installation and settings of CC3200 through this link https://www.youtube.com/watch?v=xbh9I8waq5g
- To create the temperature sensor project, go in options file-> New-> CCS
- Write the name of the project, select the option Empty project (with main.c) and click on Finish option.
- You can download the all.h and.c files from https://github.com/things-cloud/temperature-sesnor-node-cc3200
- Add the.h and.c files to your project: Right click on the project and go in option add files.
- Navigate to download folder “temperature-sesnor-node-cc3200” and select the.h and.c files to add into the project. Click on open option.
- Select the option “copy files” and click on “Ok”.
- Go on project explorer-> file name and right click from mouse and go in properties.
- Go on project explorer-> file name and right click from mouse and go in properties. Include the file path in ARM compiler-> include options (#include search path)
- Include the file path in ARM linker-> file search ->Include library file or command file: "libc.a"
- For wi-fi settings, go in project explorer->your_file->/example/common->common.h Change SSID_NAME, SECURITY_KEY and SECURITY_TYPE = “SL_SEC_TYPE_WPA” or WPA2
CCS side of the setup is now done. We will park it here for few minutes and setup cloud account, which will give you sample code to paste it back. Cloud account will be setup on Thingsio.ai, which enables the CC3200 to send, store and vizualize your sensor data
Part II: Setting up Cloud Account on Thingsio.AIThingsIO.AI is a IoT Platform for developers. As a developer we understood the pain of not having a seamless place to connect, analyze and process device data. Many pure analytics platforms does not offer device management, which is core for the iot. That is the reason of ThingsIO.AI
- Register the account via this link http://thingsio.ai/#/register
- Create a project:
- Write the name of the project:
- Now, you will be on the project dashboard of your account. Click on the new project option
- Click on the add a new device option
- Enter the device name and click on the create and configure device
- Click on the add a new device option
- Track your device’s special parameters here. This can be set in device configuration (default to null).
- You can see your real time and special parameter’s graph.
- You can see your all data points.
- You can see here your last 5 data points.
- You can see here all the list of created graphs.
- Go in sample device code options and click on the CC3200. You will get the sample code from there and paste into your CCS.
Click on the “Send trial data” to send a trial data to the server
Part III: Setting up CC3200 LaunchPad™Now switch back to your CCS Project. The new few steps you have to do it you CCS project and is related to CC3200 Launchpad.
- Copy and paste the sample code from the previous step into your CCS in “main.c”
- Go in view option-> target configuration and click on it
- Select user defined option->right click on it->click on the New Target Configuration. Click on it
- Browse and select the file.ccxml and click on finish
- You can attach the temperature sensor on PIN 58 on CC3200
- Plug in the CC3200 through USB cable. Check in device manager the port name and number.
- Check the pin configuration and shorting of pins in CC3200.
- Select the project, go in view option ->debug option and click on it
- Open the Hercules or tera-term application to see the output/procedure of the CC3200.
- Go in serial and set the Name: according to your port number, Baud rate: 19200, Data size: 8 and Parity: none and open it
- Go in CCS. Now, you will on debug page. Press F8 or click on resume option
- You can see all the response from the server, connection with the wi-fi etc. in Hercules or tera-term.
Now your CC3200 LaunchPad™ is configured and it is sending data to the cloud, thingsio.ai. Last part is to visualize the data
Part IV: Charting and Vizualtions on Thingsio.AI- Now, click on the configuration device option
- You can set the special parameters (this is tracked on the device dashboard) & transform it accordingly and add new parameters (Parameters are updated automatically as you send them from your device).
- Click on the update device option:
- You can also set your device geographical location
- To create a graph for your device click on the “create graph option”
- Click on the preview option. You will see your created graph and click save changes
#include <string.h>
// SimpleLink includes
#include "simplelink.h"
// driverlib includes
#include "hw_memmap.h"
#include "hw_common_reg.h"
#include "hw_ints.h"
#include "hw_types.h"
#include "hw_uart.h"
#include "hw_wdt.h"
#include "rom.h"
#include "wdt.h"
#include "rom_map.h"
#include "pin.h"
#include "prcm.h"
#include "gpio.h"
#include "utils.h"
#include "interrupt.h"
#include "udma.h"
#include "json.h"
#include "timer.h"
// common interface includes
#include "uart_if.h"
#include "udma_if.h"
#include "timer_if.h"
#include "WDT_if.h"
#include "uart.h"
#include "common.h"
#include "pinmux.h"
#include "gpio_if.h"
#include <math.h>
#include "i2c_if.h"
#include "smartconfig.h"
#include "adc.h"
// HTTP Client lib
#include <http/client/httpcli.h>
#include <http/client/common.h>
//pnarasim
#include "netcfg.h"
// JSON Parser
#include "jsmn.h"
//#define WATCHDOG
#define APPLICATION_VERSION "1.1.1"
#define APP_NAME "The ThingsCloud Temperature"
#define WD_PERIOD_MS 20000
#define MAP_SysCtlClockGet 80000000
#define MILLISECONDS_TO_TICKS(ms) ((MAP_SysCtlClockGet / 1000) * (ms))
#define BAUD_RATE 19200
#define NO_OF_SAMPLES 128
unsigned long pulAdcSamples[4096];
#define SH_GPIO_3 3
#define POST_REQUEST_URI_AC "/devices/deviceData"
#define POST_REQUEST_URI_DC "/devices/deviceData"
#define POST_HEADER "{"
#define POST_timestamp "\n\"dts\":"
#define POST_DEVICEID ",\n\"device_id\":201873,"
#define POST_SLAVE "\n\"slave_id\":1"
#define POST_HEADER1 ",\n\"data\":"
#define POST_BEGIN "{"
#define POST_END "\n}"
#define POST_TAIL1 "\n}"
#define LOGIN 1
#define TIME 2
#define POST 3
#define Debug 1
#define Slave 2
#define PUT_REQUEST_URI "/put"
#define PUT_DATA "PUT request."
#define GET_REQUEST_URI "/api/timestamp"
#define HOST_PORT 80
#define TIME_PORT 80
#define PROXY_IP <proxy_ip>
#define PROXY_PORT <proxy_port>
#define READ_SIZE 1450
#define MAX_BUFF_SIZE 1460
#define TX_EN MAP_GPIOPinWrite(GPIOA2_BASE,GPIO_PIN_6,GPIO_PIN_6)
#define TX_DIS MAP_GPIOPinWrite(GPIOA2_BASE,GPIO_PIN_6,0)
#define RX_DIS MAP_GPIOPinWrite(GPIOA1_BASE,GPIO_PIN_6,GPIO_PIN_6)
#define RX_EN MAP_GPIOPinWrite(GPIOA1_BASE,GPIO_PIN_6,0)
// Application specific status/error codes
typedef enum{
/* Choosing this number to avoid overlap with host-driver's error codes */
DEVICE_NOT_IN_STATION_MODE = -0x7D0,
DEVICE_START_FAILED = DEVICE_NOT_IN_STATION_MODE - 1,
INVALID_HEX_STRING = DEVICE_START_FAILED - 1,
TCP_RECV_ERROR = INVALID_HEX_STRING - 1,
TCP_SEND_ERROR = TCP_RECV_ERROR - 1,
FILE_NOT_FOUND_ERROR = TCP_SEND_ERROR - 1,
INVALID_SERVER_RESPONSE = FILE_NOT_FOUND_ERROR - 1,
FORMAT_NOT_SUPPORTED = INVALID_SERVER_RESPONSE - 1,
FILE_OPEN_FAILED = FORMAT_NOT_SUPPORTED - 1,
FILE_WRITE_ERROR = FILE_OPEN_FAILED - 1,
INVALID_FILE = FILE_WRITE_ERROR - 1,
SERVER_CONNECTION_FAILED = INVALID_FILE - 1,
GET_HOST_IP_FAILED = SERVER_CONNECTION_FAILED - 1,
STATUS_CODE_MAX = -0xBB8
}e_AppStatusCodes;
//*****************************************************************************
// GLOBAL VARIABLES -- Start
//*****************************************************************************
volatile unsigned long g_ulStatus = 0;//SimpleLink Status
unsigned long g_ulDestinationIP; // IP address of destination server
unsigned long g_ulGatewayIP = 0; //Network Gateway IP address
unsigned char g_ucConnectionSSID[SSID_LEN_MAX+1]; //Connection SSID
unsigned char g_ucConnectionBSSID[BSSID_LEN_MAX]; //Connection BSSID
static unsigned int g_uiDeviceModeConfig;
unsigned long g_ulStaIp = 0;
unsigned char g_buff[MAX_BUFF_SIZE+1];
const char *soft_layer = "api.thingsio.ai"; //"<host name>"
//const char *soft_layer = "netracollab.ntpc.co.in";
const char *Time_server = "baas.thethingscloud.com"; //"<host name>"
char slave_str[4];
bool g_logged_in = false,proceed = false;
bool critiacl_section = false;
#if defined(ccs)
extern void (* const g_pfnVectors[])(void);
#endif
#if defined(ewarm)
extern uVectorEntry __vector_table;
#endif
int temp_index;
const char*name_list[2] = {
"temp"
};
char Query_set[8];
long bytesReceived = 0; // variable to store the file size
char ses_id[500],recv_buffer[20];
char post_data[1000];
char timestamp[10];
char no_of_slaves;
char Post_string_size[4];
int uartRxLength,s=0;
int result;
char slave_list[256];
char instance=0;
long uint_count;
#if defined(ccs) || defined(gcc)
extern void (* const g_pfnVectors[])(void);
#endif
#if defined(ewarm)
extern uVectorEntry __vector_table;
#endif
static void BoardInit(void);
static void DisplayBanner(char * AppName);
//*****************************************************************************
// GLOBAL VARIABLES -- End
//*****************************************************************************
void uart_init();
void WlanAPMode();
//*****************************************************************************
// SimpleLink Asynchronous Event Handlers -- Start
//*****************************************************************************
static Mesage(unsigned char *m)
{
UDMASetupTransfer(UDMA_CH9_UARTA0_TX,
UDMA_MODE_BASIC,
8,
UDMA_SIZE_8,
UDMA_ARB_8,
(void *)m,
UDMA_SRC_INC_8,
(void *)(UARTA0_BASE+UART_O_DR),
UDMA_DST_INC_NONE);
//
// Enable TX DMA request
//
MAP_UARTDMAEnable(UARTA0_BASE,UART_DMA_TX);
}
static inline void HIBEntrePreamble()
{
HWREG(0x400F70B8) = 1;
UtilsDelay(800000/5);
HWREG(0x400F70B0) = 1;
UtilsDelay(800000/5);
HWREG(0x4402E16C) |= 0x2;
UtilsDelay(800);
HWREG(0x4402F024) &= 0xF7FFFFFF;
}
//*****************************************************************************
//
//! \brief The Function Handles WLAN Events
//!
//! \param[in] pWlanEvent - Pointer to WLAN Event Info
//!
//! \return None
//!
//*****************************************************************************
void SimpleLinkWlanEventHandler(SlWlanEvent_t *pWlanEvent)
{
switch(pWlanEvent->Event)
{
case SL_WLAN_CONNECT_EVENT:
{
SET_STATUS_BIT(g_ulStatus, STATUS_BIT_CONNECTION);
//
// Information about the connected AP (like name, MAC etc) will be
// available in 'slWlanConnectAsyncResponse_t'-Applications
// can use it if required
// Copy new connection SSID and BSSID to global parameters
memcpy(g_ucConnectionSSID,pWlanEvent->EventData.
STAandP2PModeWlanConnected.ssid_name,
pWlanEvent->EventData.STAandP2PModeWlanConnected.ssid_len);
memcpy(g_ucConnectionBSSID,
pWlanEvent->EventData.STAandP2PModeWlanConnected.bssid,
SL_BSSID_LENGTH);
}
break;
case SL_WLAN_DISCONNECT_EVENT:
{
slWlanConnectAsyncResponse_t* pEventData = NULL;
CLR_STATUS_BIT(g_ulStatus, STATUS_BIT_CONNECTION);
CLR_STATUS_BIT(g_ulStatus, STATUS_BIT_IP_AQUIRED);
pEventData = &pWlanEvent->EventData.STAandP2PModeDisconnected;
// If the user has initiated 'Disconnect' request,
//'reason_code' is SL_USER_INITIATED_DISCONNECTION
if(SL_USER_INITIATED_DISCONNECTION == pEventData->reason_code)
{
}
else
{
}
memset(g_ucConnectionSSID,0,sizeof(g_ucConnectionSSID));
memset(g_ucConnectionBSSID,0,sizeof(g_ucConnectionBSSID));
}
break;
case SL_WLAN_STA_CONNECTED_EVENT:
{
// when device is in AP mode and any client connects to device cc3xxx
SET_STATUS_BIT(g_ulStatus, STATUS_BIT_CONNECTION);
//
// Information about the connected client (like SSID, MAC etc) will be
// available in 'slPeerInfoAsyncResponse_t' - Applications
// can use it if required
//
}
break;
case SL_WLAN_STA_DISCONNECTED_EVENT:
{
// when client disconnects from device (AP)
CLR_STATUS_BIT(g_ulStatus, STATUS_BIT_CONNECTION);
CLR_STATUS_BIT(g_ulStatus, STATUS_BIT_IP_LEASED);
//
// Information about the connected client (like SSID, MAC etc) will
// be available in 'slPeerInfoAsyncResponse_t' - Applications
// can use it if required
//
//
}
break;
default:
{
}
break;
}
}
//*****************************************************************************
//
//! \brief This function handles network events such as IP acquisition, IP
//! leased, IP released etc.
//!
//! \param[in] pNetAppEvent - Pointer to NetApp Event Info
//!
//! \return None
//!
//*****************************************************************************
void SimpleLinkNetAppEventHandler(SlNetAppEvent_t *pNetAppEvent)
{
switch(pNetAppEvent->Event)
{
case SL_NETAPP_IPV4_IPACQUIRED_EVENT:
{
SlIpV4AcquiredAsync_t *pEventData = NULL;
SET_STATUS_BIT(g_ulStatus, STATUS_BIT_IP_AQUIRED);
//Ip Acquired Event Data
pEventData = &pNetAppEvent->EventData.ipAcquiredV4;
//Gateway IP address
g_ulGatewayIP = pEventData->gateway;
break;
case SL_NETAPP_IP_LEASED_EVENT:
{
SET_STATUS_BIT(g_ulStatus, STATUS_BIT_IP_LEASED);
g_ulStaIp = (pNetAppEvent)->EventData.ipLeased.ip_address;
}
break;
case SL_NETAPP_IP_RELEASED_EVENT:
{
CLR_STATUS_BIT(g_ulStatus, STATUS_BIT_IP_LEASED);
}
break;
default:
{
}
break;
}
}
}
//*****************************************************************************
//
//! \brief This function handles HTTP server events
//!
//! \param[in] pServerEvent - Contains the relevant event information
//! \param[in] pServerResponse - Should be filled by the user with the
//! relevant response information
//!
//! \return None
//!
//****************************************************************************
void SimpleLinkHttpServerCallback(SlHttpServerEvent_t *pHttpEvent,
SlHttpServerResponse_t *pHttpResponse)
{
// Unused in this application
}
//*****************************************************************************
//
//! \brief This function handles General Events
//!
//! \param[in] pDevEvent - Pointer to General Event Info
//!
//! \return None
//!
//*****************************************************************************
void SimpleLinkGeneralEventHandler(SlDeviceEvent_t *pDevEvent)
{
//
// Most of the general errors are not FATAL are are to be handled
// appropriately by the application
//
UART_PRINT("[GENERAL EVENT] - ID=[%d] Sender=[%d]\n\n",
pDevEvent->EventData.deviceEvent.status,
pDevEvent->EventData.deviceEvent.sender);
}
//*****************************************************************************
//
//! This function handles socket events indication
//!
//! \param[in] pSock - Pointer to Socket Event Info
//!
//! \return None
//!
//*****************************************************************************
void SimpleLinkSockEventHandler(SlSockEvent_t *pSock)
{
//
// This application doesn't work w/ socket - Events are not expected
//
switch( pSock->Event )
{
case SL_SOCKET_TX_FAILED_EVENT:
switch( pSock->socketAsyncEvent.SockTxFailData.status )
{
case SL_ECLOSE:
UART_PRINT("[SOCK ERROR] - close socket (%d) operation "
"failed to transmit all queued packets\n\n",
pSock->socketAsyncEvent.SockAsyncData.sd);
break;
default:
UART_PRINT("[SOCK ERROR] - TX FAILED : socket %d , reason"
"(%d) \n\n",
pSock->socketAsyncEvent.SockAsyncData.sd,
pSock->socketAsyncEvent.SockTxFailData.status);
}
break;
default:
UART_PRINT("[SOCK EVENT] - Unexpected Event [%x0x]\n\n",pSock->Event);
}
}
//*****************************************************************************
// SimpleLink Asynchronous Event Handlers -- End
/*****************************************************************************/
#ifdef WATCHDOG
void watchdogIntHandler(void)
{
GPIO_IF_LedOn(MCU_ALL_LED_IND);
MAP_UtilsDelay(50);
GPIO_IF_LedOff(MCU_ALL_LED_IND);
}
/*******************************************************************************************************/
static watchdogack()
{
MAP_WatchdogIntClear(WDT_BASE);
}
#endif
/*****************************************************************************/
//
//! \brief This function initializes the application variables
//!
//! \param None
//!
//! \return None
//!
//*****************************************************************************
static void InitializeAppVariables()
{
g_ulStatus = 0;
g_ulStaIp = 0;
g_ulGatewayIP = 0;
memset(g_ucConnectionSSID,0,sizeof(g_ucConnectionSSID));
memset(g_ucConnectionBSSID,0,sizeof(g_ucConnectionBSSID));
}
static void delay(unsigned int d)
{
unsigned int i;
for (i=0;i<d*100;i++){}
}
//*****************************************************************************//
static int ConfigureMode(int iMode)
{
long lRetVal = -1;
lRetVal = sl_WlanSetMode(iMode);
ASSERT_ON_ERROR(lRetVal);
//Mesage("Device is configured in AP mode\n\r");
/* Restart Network processor */
lRetVal = sl_Stop(SL_STOP_TIMEOUT);
// reset status bits
CLR_STATUS_BIT_ALL(g_ulStatus);
return sl_Start(NULL,NULL,NULL);
}
//*******************************************************************************//
//*****************************************************************************
//! \brief This function puts the device in its default state. It:
//! - Set the mode to STATION
//! - Configures connection policy to Auto and AutoSmartConfig
//! - Deletes all the stored profiles
//! - Enables DHCP
//! - Disables Scan policy
//! - Sets Tx power to maximum
//! - Sets power policy to normal
//! - Unregister mDNS services
//! - Remove all filters
//!
//! \param none
//! \return On success, zero is returned. On error, negative is returned
//*****************************************************************************
static long ConfigureSimpleLinkToDefaultState()
{
SlVersionFull ver = {0};
_WlanRxFilterOperationCommandBuff_t RxFilterIdMask = {0};
unsigned char ucVal = 1;
unsigned char ucConfigOpt = 0;
unsigned char ucConfigLen = 0;
unsigned char ucPower = 0;
long lRetVal = -1;
long lMode = -1;
lMode = sl_Start(0, 0, 0);
ASSERT_ON_ERROR(lMode);
sl_WlanPolicySet(SL_POLICY_CONNECTION,SL_CONNECTION_POLICY(1,0,0,0,1),NULL,0);
if(ROLE_STA != lRetVal && g_uiDeviceModeConfig == ROLE_STA )
{
if (ROLE_AP == lRetVal)
{
// If the device is in AP mode, we need to wait for this event
// before doing anything
while(!IS_IP_ACQUIRED(g_ulStatus))
{
#ifndef SL_PLATFORM_MULTI_THREADED
_SlNonOsMainLoopTask();
#endif
}
}
//Switch to STA Mode
lRetVal = ConfigureMode(ROLE_STA);
ASSERT_ON_ERROR( lRetVal);
}
GPIO_IF_LedToggle(MCU_RED_LED_GPIO);
//Device is in STA Mode and Force AP Jumper is Connected
if(ROLE_AP != lRetVal && g_uiDeviceModeConfig == ROLE_AP )
{
//Switch to AP Mode
lRetVal = ConfigureMode(ROLE_AP);
ASSERT_ON_ERROR( lRetVal);
}
// If the device is not in station-mode, try configuring it in station-mode
// Get the device's version-information
ucConfigOpt = SL_DEVICE_GENERAL_VERSION;
ucConfigLen = sizeof(ver);
lRetVal = sl_DevGet(SL_DEVICE_GENERAL_CONFIGURATION, &ucConfigOpt,
&ucConfigLen, (unsigned char *)(&ver));
ASSERT_ON_ERROR(lRetVal);
UART_PRINT("Host Driver Version: %s\n\r",SL_DRIVER_VERSION);
UART_PRINT("Build Version %d.%d.%d.%d.31.%d.%d.%d.%d.%d.%d.%d.%d\n\r",
ver.NwpVersion[0],ver.NwpVersion[1],ver.NwpVersion[2],ver.NwpVersion[3],
ver.ChipFwAndPhyVersion.FwVersion[0],ver.ChipFwAndPhyVersion.FwVersion[1],
ver.ChipFwAndPhyVersion.FwVersion[2],ver.ChipFwAndPhyVersion.FwVersion[3],
ver.ChipFwAndPhyVersion.PhyVersion[0],ver.ChipFwAndPhyVersion.PhyVersion[1],
ver.ChipFwAndPhyVersion.PhyVersion[2],ver.ChipFwAndPhyVersion.PhyVersion[3]);
//
// Device in station-mode. Disconnect previous connection if any
// The function returns 0 if 'Disconnected done', negative number if already
// disconnected Wait for 'disconnection' event if 0 is returned, Ignore
// other return-codes
//
GPIO_IF_LedToggle(MCU_RED_LED_GPIO);
if (g_uiDeviceModeConfig != ROLE_AP)
{
lRetVal = sl_WlanDisconnect();
if(0 == lRetVal)
{
// Wait
while(IS_CONNECTED(g_ulStatus))
{
#ifndef SL_PLATFORM_MULTI_THREADED
_SlNonOsMainLoopTask();
#endif
}
}
}
// Enable DHCP client
lRetVal = sl_NetCfgSet(SL_IPV4_STA_P2P_CL_DHCP_ENABLE,1,1,&ucVal);
ASSERT_ON_ERROR(lRetVal);
if (g_uiDeviceModeConfig != ROLE_AP)
{
// Disable scan
ucConfigOpt = SL_SCAN_POLICY(0);
lRetVal = sl_WlanPolicySet(SL_POLICY_SCAN , ucConfigOpt, NULL, 0);
ASSERT_ON_ERROR(lRetVal);
}
// Set Tx power level for station mode
// Number between 0-15, as dB offset from max power - 0 will set max power
ucPower = 0;
lRetVal = sl_WlanSet(SL_WLAN_CFG_GENERAL_PARAM_ID,
WLAN_GENERAL_PARAM_OPT_STA_TX_POWER, 1, (unsigned char *)&ucPower);
ASSERT_ON_ERROR(lRetVal);
// Set PM policy to normal
lRetVal = sl_WlanPolicySet(SL_POLICY_PM , SL_NORMAL_POLICY, NULL, 0);
ASSERT_ON_ERROR(lRetVal);
// Unregister mDNS services
lRetVal = sl_NetAppMDNSUnRegisterService(0, 0);
ASSERT_ON_ERROR(lRetVal);
// Remove all 64 filters (8*8)
memset(RxFilterIdMask.FilterIdMask, 0xFF, 8);
lRetVal = sl_WlanRxFilterSet(SL_REMOVE_RX_FILTER, (_u8 *)&RxFilterIdMask,
sizeof(_WlanRxFilterOperationCommandBuff_t));
ASSERT_ON_ERROR(lRetVal);
GPIO_IF_LedToggle(MCU_RED_LED_GPIO);
lRetVal = sl_Stop(0);
ASSERT_ON_ERROR(lRetVal);
if (lRetVal!=0)
{
lRetVal = sl_Stop(0);
ASSERT_ON_ERROR(lRetVal);
}
InitializeAppVariables();
lMode = sl_Start(0, 0, 0);
ASSERT_ON_ERROR(lMode);
return SUCCESS;
}
//****************************************************************************
//
//! \brief Connecting to a WLAN Accesspoint
//!
//! This function connects to the required AP (SSID_NAME) with Security
//! parameters specified in te form of macros at the top of this file
//!
//! \param Status value
//!
//! \return None
//!
//! \warning If the WLAN connection fails or we don't aquire an IP
//! address, It will be stuck in this function forever.
//
//****************************************************************************
static long WlanConnect()
{
// Wait for WLAN Event
UART_PRINT("Awaiting an AP connection...");
while((!IS_CONNECTED(g_ulStatus)) || (!IS_IP_ACQUIRED(g_ulStatus)))
{
// wait till connects to an AP
GPIO_IF_LedToggle(MCU_RED_LED_GPIO);
_SlNonOsMainLoopTask();
delay(5000);
}
GPIO_IF_LedOn(MCU_RED_LED_GPIO);
UART_PRINT("connected to an AP\n");
return SUCCESS;
}
void WlanAPMode( )
{
unsigned char ucDHCP;
long lRetVal = -1;
InitializeAppVariables();
//
// Following function configure the device to default state by cleaning
// the persistent settings stored in NVMEM (viz. connection profiles &
// policies, power policy etc)
//
// Applications may choose to skip this step if the developer is sure
// that the device is in its default state at start of applicaton
//
// Note that all profiles and persistent settings that were done on the
// device will be lost
//
lRetVal = ConfigureSimpleLinkToDefaultState();
if(lRetVal < 0)
{
if (DEVICE_NOT_IN_STATION_MODE == lRetVal)
UART_PRINT("Failed to configure the device in its default state \n\r");
LOOP_FOREVER();
}
// UART_PRINT("Device is configured in default state \n\r");
//
// Asumption is that the device is configured in station mode already
// and it is in its default state
//
lRetVal = sl_Start(NULL,NULL,NULL);
if (lRetVal < 0)
{
UART_PRINT("Failed to start the device \n\r");
LOOP_FOREVER();
}
//
// Configure the networking mode and ssid name(for AP mode)
//
if(lRetVal != ROLE_AP)
{
if(ConfigureMode(lRetVal) != ROLE_AP)
{
UART_PRINT("Unable to set AP mode, exiting Application...\n\r");
sl_Stop(SL_STOP_TIMEOUT);
LOOP_FOREVER();
}
}
while(!IS_IP_ACQUIRED(g_ulStatus))
{
//looping till ip is acquired
}
unsigned char len = sizeof(SlNetCfgIpV4Args_t);
SlNetCfgIpV4Args_t ipV4 = {0};
// get network configuration
lRetVal = sl_NetCfgGet(SL_IPV4_AP_P2P_GO_GET_INFO,&ucDHCP,&len,
(unsigned char *)&ipV4);
if (lRetVal < 0)
{
UART_PRINT("Failed to get network configuration \n\r");
LOOP_FOREVER();
}
UART_PRINT("Connect a client to Device\n\r");
while(!IS_IP_LEASED(g_ulStatus))
{
//wating for the client to connect
}
UART_PRINT("Client is connected to Device\n\r");
// Switch off Network processor
lRetVal = sl_Stop(SL_STOP_TIMEOUT);
UART_PRINT("WLAN AP example executed successfully");
while(1);
}
//*****************************************************************************
//
//! \brief Handler for parsing JSON data
//!
//! \param[in] ptr - Pointer to http response body data
//!
//! \return 0 on success else error code on failure
//!
//*****************************************************************************
int ParseJSONData(char *ptr)
{
long lRetVal = 0;
int noOfToken;
jsmn_parser parser;
jsmntok_t *tokenList;
/* Initialize JSON PArser */
jsmn_init(&parser);
/* Get number of JSON token in stream as we we dont know how many tokens need to pass */
noOfToken = jsmn_parse(&parser, (const char *)ptr, strlen((const char *)ptr), NULL, 10);
if(noOfToken <= 0)
{
UART_PRINT("Failed to initialize JSON parser\n\r");
return -1;
}
/* Allocate memory to store token */
tokenList = (jsmntok_t *) malloc(noOfToken*sizeof(jsmntok_t));
if(tokenList == NULL)
{
UART_PRINT("Failed to allocate memory\n\r");
return -1;
}
/* Initialize JSON Parser again */
jsmn_init(&parser);
noOfToken = jsmn_parse(&parser, (const char *)ptr, strlen((const char *)ptr), tokenList, noOfToken);
if(noOfToken < 0)
{
UART_PRINT("Failed to parse JSON tokens\n\r");
lRetVal = noOfToken;
}
else
{
UART_PRINT("Successfully parsed %ld JSON tokens\n\r", noOfToken);
}
free(tokenList);
return lRetVal;
}
/*!
\brief This function read respose from server and dump on console
\param[in] httpClient - HTTP Client object
\return 0 on success else -ve
\note
\warning
*/
static int FlushHTTPResponse(HTTPCli_Handle httpClient)
{
int lRetVal = -1,status;
char error[15];
status = HTTPCli_getResponseStatus(httpClient);
sprintf(error,"post status %d",status);
UART_PRINT(error);
UART_PRINT("\n");
char *respFields[2] = {
HTTPCli_FIELD_NAME_CONTENT_LENGTH,
NULL
};
char buf[356];
int len;
bool moreFlag = 0;
/* Store previosly store array if any */
HTTPCli_setResponseFields(httpClient, respFields);
do {
// Filter the response headers and get the set response field
//
// ...
// Content-type: text/xml; charset=utf-8\r\n
// Content-length: 34
// ...
lRetVal = HTTPCli_getResponseField(httpClient, buf, sizeof(buf), &moreFlag);
// process data in buf if field is content length
// Zero is the index of Content length in respFields array
if (lRetVal == 0) {
len = (int)strtoul(buf, NULL, 0);
}
//loop till the end of the response fields
} while (lRetVal != HTTPCli_FIELD_ID_END);
//UART_PRINT(buf);
while (len > 0) {
len -= HTTPCli_readRawResponseBody(httpClient, buf, sizeof(buf));
// process buf data and save
}
UART_PRINT(buf);
GPIO_IF_LedOn(MCU_ORANGE_LED_GPIO);
return 0;
}
/************************************************************************************************/
/***********************************************************************************************************/
static int readResponse(HTTPCli_Handle httpClient)
{
long lRetVal = 0;
int bytesRead = 0;
int i,j;
char error[15];
unsigned long len;
char *S_id,*P;
char *dataBuffer = NULL;
const char *ids[4] = {
HTTPCli_FIELD_NAME_CONTENT_LENGTH,
HTTPCli_FIELD_NAME_CONNECTION,
HTTPCli_FIELD_NAME_CONTENT_TYPE,
NULL
};
//JsonNode *jn,*jns;
/* Read HTTP POST request status code */
j=0;
HTTPCli_setResponseFields(httpClient, (const char **)ids);
switch (instance)
{
case TIME:
delay(4000);
lRetVal = HTTPCli_getResponseStatus(httpClient);
if(lRetVal==200)
{
UART_PRINT("Time status 200\n");
// GPIO_IF_LedOn(MCU_GREEN_LED_GPIO);
}
else
{
sprintf(error,"Time status %d",lRetVal);
UART_PRINT(error);
UART_PRINT("\n");
}
len = 2500;
dataBuffer = calloc(len,sizeof(char));
bytesRead = HTTPCli_readRawResponseBody(httpClient, (char *)dataBuffer, len);
dataBuffer[bytesRead] = '\0';
P = strstr(dataBuffer,"\"timestamp\"");
for (i=0;i<10;i++)
{
timestamp[i]=*(P+12+i);
}
UART_PRINT(timestamp);
break;
case POST:
FlushHTTPResponse(httpClient);
break;
}
/* treating data as a plain text */
lRetVal = 0;
if(len > sizeof(g_buff) && (dataBuffer != NULL))
{
UART_PRINT("Freeing allocated databuffer\r\n");
free(dataBuffer);
}
return lRetVal;
}
//*****************************************************************************
//
//! \brief HTTP POST Demonstration
//!
//! \param[in] httpClient - Pointer to http client
//!
//! \return 0 on success else error code on failure
//!
//*****************************************************************************
static int HTTPPostMethod(HTTPCli_Handle httpClient, char*post_uri)
{
bool moreFlags = 1;
bool lastFlag = 1;
long lRetVal = 0;
HTTPCli_Field fields[5] = {
{HTTPCli_FIELD_NAME_HOST, soft_layer},
{HTTPCli_FIELD_NAME_CONTENT_TYPE, "application/json"},
{HTTPCli_FIELD_NAME_AUTHORIZATION,"Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.IjViNjJiNWM3NTVkMWIwNWVlNzBmY2VkYSI.L_XS9MtsZyQRfsC3N2GqXdpgrrdb2f-hQbNf81dNPx0"},
{NULL, NULL}
};
/* Set request header fields to be send for HTTP request. */
HTTPCli_setRequestFields(httpClient, fields);
/* Send POST method request. */
/* Here we are setting moreFlags = 1 as there are some more header fields need to send
other than setted in previous call HTTPCli_setRequestFields() at later stage.
Please refer HTTP Library API documentaion @ref HTTPCli_sendRequest for more information.
*/
moreFlags = 1;
lRetVal = HTTPCli_sendRequest(httpClient, HTTPCli_METHOD_POST,POST_REQUEST_URI_DC , moreFlags);
if(lRetVal < 0)
{
UART_PRINT("Failed to send HTTP POST request header.\n\r");
...
This file has been truncated, please download it to see its full contents.
6 projects • 20 followers
pursuing masters degree in electronics,
things cloud technologies pvt ltd,
internshala students partner
Comments
Please log in or sign up to comment.
