maximal linearity for temperature sensing with NTC (LTspice)
I got a request recently about the following statement; an NTC curve variation of resistance in function of the temperature is roughly exponential. If you want to build a switching application where you compare the NTC resistance to a linear potentiometer, it will be hard to calibrate a linear switching over an extended temperature range. Then I thought of this good old amplifier type which is called a logarithmic amplifier. After a long search on the web (what can still be new today?), I didn't find many illustrations of such a concept, only one obscure circuit, made with outdated devices (you will find the reference in the simulation sheet self). I decided to undust the circuit in the following application simulation.
Although we want to see the Vout variation in function of the temperature, it seems impossible to obtain this straightforward without performing a transient simulation, because the Capacitance C2 must be first charged at its steady state voltage. We thus perform a 1s transient simulation, and Vout has reached the steady state at the tested temperatures.

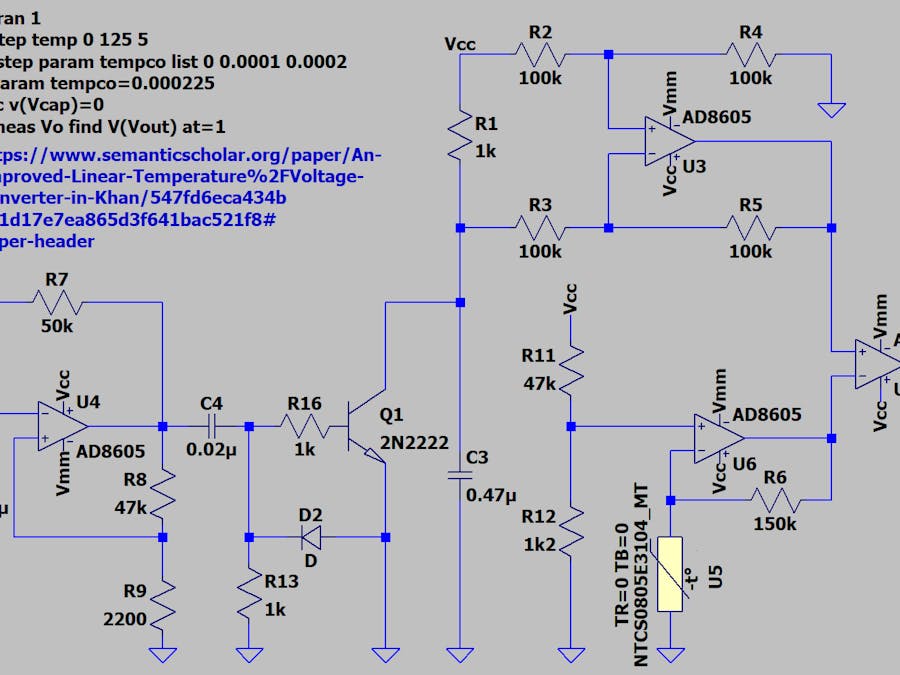

schematics
illustration of C2 charging at beginning of the simulation
transient variation of Vout (with TEMP sweep)
measurement of Vout in function of TEMP after 1s
linear regression of Vout in function of TEMP
We have thus produced a linear voltage over a very wide temperature range and this voltage can thus be compared to a voltage produced by a linear potentiometer.
