PWM temperature control in Qspice with Verilog counter

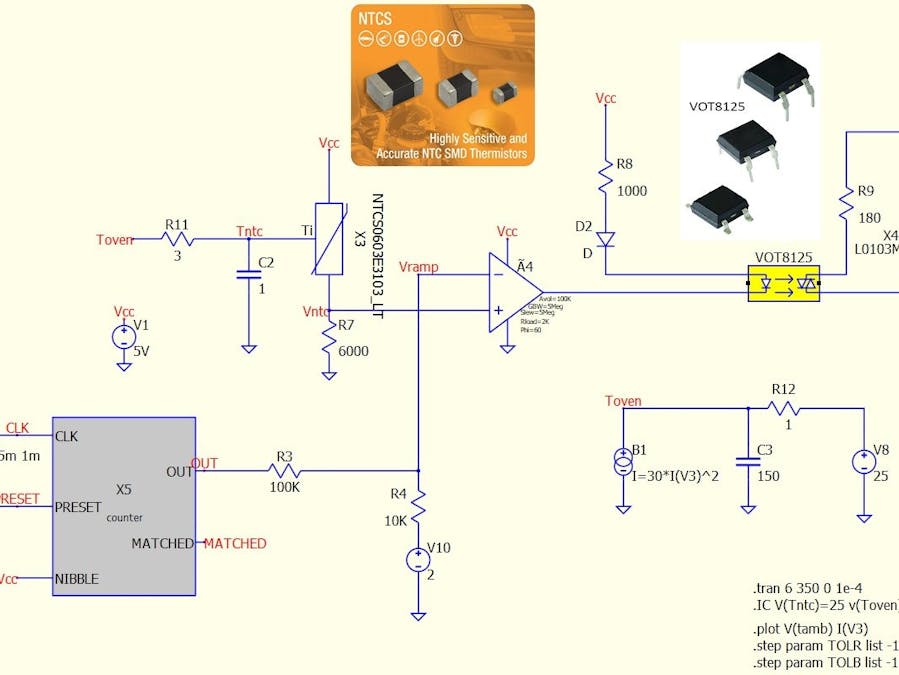

This Qspice simulation is based on a Pulse Width Modulation NTC thermistor temperature control with the Ramp Voltage modelled in VERILOG

BeginnerProtip2 hours167
PWM temperature control in Qspice with Verilog counter

Things used in this project

Hardware components

NTCS0603 SMD thermistor 10 Kohms +/-1%
Vishay NTCS0603 SMD thermistor 10 Kohms +/-1%
×1
Vishay VOT8125
×1
L0103M
×1

Software apps and online services

Qspice

Story

Read more

Custom parts and enclosures

Qspice simulation for PWM temperature control

unzip and open in Qspice

Schematics

pwm_heating2_J9QumnXzne.zip

Code

netlist for thermistor NTCS0603 10K and VOT8125 from Vishay + triac littelfuse

Plain text
use it in Qspice
* Voltage_driven_thermistor
* $Revision History :correction <> introduced
* subckt for Qspice 21/08/2023
.SUBCKT NTCS0603E3103_LT RN Rp Ti Params:
* TOLR=0 TOLB=0
+ w=-10.510144466257
+ x=2816.74879403825
+ y=172444.245970535
+ z=-23248305.132252
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-10.4528701153889
+ r25=10000
+ b=1363.9319167994
+ c=1013209.19138484
+ d=-146294479.644505
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
R_RTR    0  TR  {TR}
I_ITR    0 TR 1
R_RTB    0 TB  {TB}
I_ITB    0 TB  1
G_G1         AOUT 0 VALUE { if(V(Ti)>25,V(AOUT,
+  0)/(R25*V(TR)*exp(((D*V(TB)/(T0+abs(V(H))+V(Ti))+C*V(TB))/(T0+abs(V(H))+V(Ti))+B*V(TB))/(T0+V(Ti)+abs(V(H)))+A*V(TB))),0)
+  }
G_G2         AOUT 0 VALUE { IF(V(Ti)>25,0,V(AOUT,
+  0)/(R25*V(TR)*exp(((Z*V(TB)/(T0+abs(V(H))+V(Ti))+Y*V(TB))/(T0+abs(V(H))+V(Ti))+X*V(TB))/(T0+abs(V(H))+V(Ti))+W*V(TB))))
+  }
G_G3         H 0 VALUE {
+  if(V(Ti)>25,-V(RP,RN)*V(RP,RN)/(R25*V(TR)*exp(((D*V(TB)/(T0+abs(V(H))+V(Ti))+C*V(TB))/(T0+abs(V(H))+V(Ti))+B*V(TB))/
+  (T0+V(Ti)+abs(V(H)))+A*V(TB))),0)}
G_G4         H 0 VALUE {
+  if(V(Ti)>25,0,-V(RP,RN)*V(RP,RN)/(R25*V(TR)*exp(((Z*TB/(T0+abs(V(H))+V(Ti))+Y*V(TB))/(T0+abs(V(H))+V(Ti))+X*V(TB))/
+  (T0+V(Ti)+abs(V(H)))+W*V(TB))))}
G_G5         RP RN VALUE { V(RP, RN)/V(AOUT) }
G_G6         H 0 VALUE { V(H)*(Gth + Gth1*(V(Ti)-25)) }
I_I1         0 AOUT DC 1Adc
R_R1         0 AOUT  1T TC=0,0
R_R2         0 H  1T TC=0,0
C_C1         0 H  {Cth}
R_R99        0 Ti 1T
.IC V(H) =0
.ENDS
*
* Library of Phototriac Optocoupler VOT8125
* Copyright VISHAY, Inc. 2018 All Rights Reserved.

.SUBCKT VOT8125 A C NC MT2 NC MT1
X1         MT1 GATE MT2 VOT8125_tr
D1         10 C Demit
V3         11 10 0Vdc ; emitter current probe
R3         A 11  1u TC=0,0
R4	   0 NC 1MEG
C1	   0 NC 1u
G1         0 GATE VALUE { I(v3) * 1.05 }
.MODEL Demit d
+IS=5.60248e-15 RS=1.43261 N=1.58216 EG=1.3
+XTI=3.75582 BV=6 IBV=5e-6 CJO=1e-11
+VJ=0.7 M=0.5 FC=0.5 TT=1e-09
+KF=0 AF=1
.ENDS
**************
.SUBCKT VOT8125_tr  3 2 1
*     TERMINALS: MT1 G MT2
QN1  5 4 3  NOUT OFF
QN2 11 6 7  NOUT OFF
QP1 6 11 3  POUT OFF
QP2  4 5 7  POUT OFF
DF  4  5  DZ
DR  6 11  DZ
RF  4 6  60.0G
RT2 1 7  0.45
RH  7 6  18.75k
RGP 8 3  102
RG  2 8  998
RS  8 4  3.65k
DN  9 2  DIN
RN  9 3  855k
GNN  6 7 9 3 24.3u
GNP  4 5 9 3 26.5u
DP 2 10  DIP
RP 10 3  110k
GP  7 6 10 3 20.5u
.MODEL DIP D ( IS=1.07f N=1.50 )
.MODEL DIN D ( IS=1.07f )
.MODEL DZ D ( IS=1.07f N=1.5 IBV=10.0n BV=800 )
.MODEL POUT PNP ( IS=1.07f BF=5 BR=.1 CJE=35f TF=1.8u )
.MODEL NOUT NPN  ( IS=1.07f BF=20 BR=.1 CJE=35f CJC=67.0f TF=1.080u )
.ENDS

**************
**==================================================================*
* Note:                                                             *
* Although models can be a useful tool in evaluating device         *
* performance, they cannot model exact device performance           *
* under all conditions, nor are they intended to replace            *
* breadboarding for final verification!                             *
*                                                                   *
* Models provided by VISHAY Semiconductors GmbH are not             *
* as fully representing all of the specifications and operating     *
* characteristics of the semiconductor product to which the         *
* model relates.                                                    *
* The models describe the characteristics of typical devices.       *
* In all cases, the current data sheet information for a given      *
* device is the final design guideline and the only actual          *
* performance specification.                                        *
* VISHAY Semiconductors does not assume any liability arising       *
* from the model use. VISHAY Semiconductors reserves the right to   *
* change models without prior notice.				                *
**==================================================================*
|.SUBCKT L0103ME 1 2 3\nQnpn1 5 4 3 NoutF OFF\nQpnp1 4 5 7 PoutF OFF\nQnpn2 11 6 7 NoutR OFF\nQpnp2 6 11 3 PoutR OFF\nDfor 4 5 DZ OFF\nDrev 6 11 DZ OFF\nRfor 4 6 12MEG\nRon 1 7 300m\nRhold 7 6 250\nRGP 8 3 350\nRG 2 8 150\nRS 8 4 250\nDN 9 2 DIN OFF\nRN 9 3 6.0\nGNN 6 7 9 3 0.2\nGNP 4 5 9 3 2.0\nDP 2 10 DIP OFF\nRP 10 3 4.0\nGP 7 6 10 3 0.5\n.MODEL DIN D (IS=382F)\n.MODEL DIP D (IS=382F N=1.19)\n.MODEL DZ D (IS=382F N=1.5 IBV=50U BV=600)\n.MODEL PoutF PNP (IS=382F BF=1 CJE=190p TF=0.3U)\n.MODEL NoutF NPN (IS=382F BF=3 CJE=190p CJC=38p TF=0.3U)\n.MODEL PoutR PNP (IS=382F BF=5 CJE=190p TF=0.3U)\n.MODEL NoutR NPN (IS=382F BF=0.5 CJE=190p CJC=38p TF=0.3U)\n.ENDS
