Temperature controller system with TC621 and TC4469 + thermistor NTCLE213
The following circuit simulation is inspired by the application note AN773 from Microchip( Application Circuits of the TC620/TC621 Solid-State Temperature Sensors (microchip.com)) and attempts to describe a temperature controller, which heats if the temperature is under a threshold, and cools by ventilation when the temperature is above a high threshold. The most problematic points here were that: 1) there is no spice model for the TC621 and 2) the spice model of the TC4469 is much too detailed for what we intend to do here. So both had to be (re)written from scratch. No special problem though : the TC621 is decomposed in its parts and the second is a simple logical circuit which can be reproduced withe the logical elements of LTspice.
From the reading of the application note, there is now one difference and that is that when the switch S3 is open, the thermo-control is shut off, and once closed, the circuit heats up and can activate the cooling.
The cooling action of a fan is here represented by a vakue of thermal resistanceR6 dpending upon a current passing in L1 or not. The temperature of object to heat or cool is tsyst and is brought back to an accurate NTCLE213 100 Kohms from Vishay.The following graph of the temperature waveforms show that the closed loop of the thermal-electronic circuit is working perfectly: the temperature of the system swings between the two imposed limits and the diode D1 to D3 light up accordingly ( D1 system ON, D2 cooling fan on when Tsyst above high limit, D3 when Tsyst is bewteen the two limits). One advantage of this simulation is that teh ambient temperature can be changed at will (here some sinusoidal variation between 0 and 50°C).

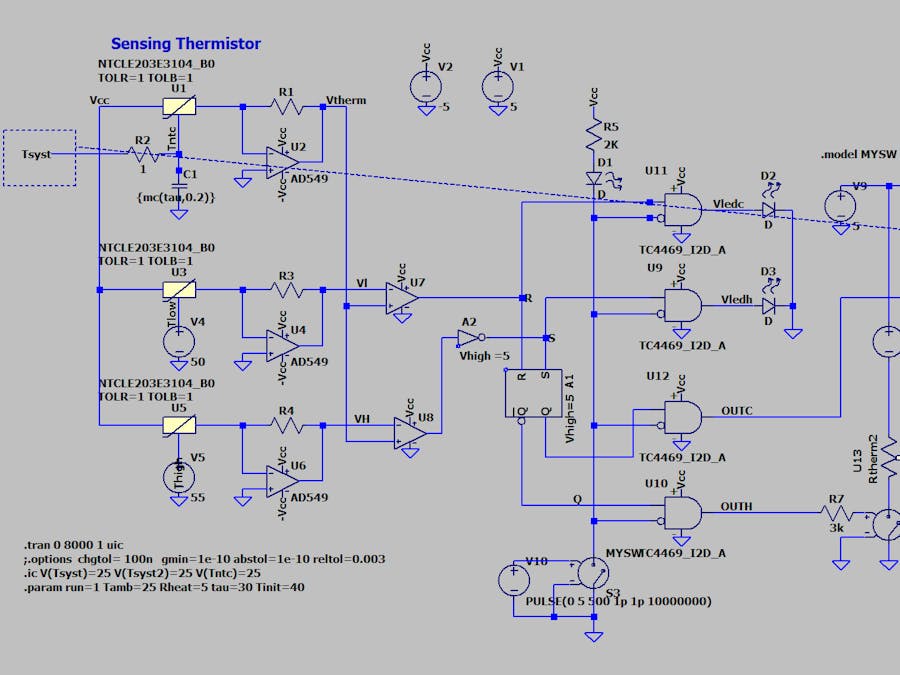

electrical schematics
waveforms
* Voltage_driven_thermistor
*
* customer : microchip
* $Revision: 1.0 $
* $Author: Alain Stas $
* $Date: 17 July 2016 $
* $Revision History :correction <> introduced
*---------------------------------------------------------------
*
*
*$
.SUBCKT NTC_BASE RN Rp Ti Params: W=1 X=1 Y=1 Z=1 GTH=1 GTH1=1 CTH=1 A=1 R25=1 B=1 C=1 D=1 T0=273.15 TRmc=5 TBmc=1
R_RTR 0 TR {mc(1,TR-1)}
I_ITR 0 TR 1
R_RTB 0 TB {mc(1,TB-1)}
I_ITB 0 TB 1
G_G1 AOUT 0 VALUE { if(V(Ti)>25,V(AOUT,
+ 0)/(R25*V(TR)*exp(((D*V(TB)/(T0+abs(V(H))+V(Ti))+C*V(TB))/(T0+abs(V(H))+V(Ti))+B*V(TB))/(T0+V(Ti)+abs(V(H)))+A*V(TB))),0)
+ }
G_G2 AOUT 0 VALUE { IF(V(Ti)>25,0,V(AOUT,
+ 0)/(R25*V(TR)*exp(((Z*V(TB)/(T0+abs(V(H))+V(Ti))+Y*V(TB))/(T0+abs(V(H))+V(Ti))+X*V(TB))/(T0+abs(V(H))+V(Ti))+W*V(TB))))
+ }
G_G3 H 0 VALUE {
+ if(V(Ti)>25,-V(RP,RN)*V(RP,RN)/(R25*V(TR)*exp(((D*V(TB)/(T0+abs(V(H))+V(Ti))+C*V(TB))/(T0+abs(V(H))+V(Ti))+B*V(TB))/
+ (T0+V(Ti)+abs(V(H)))+A*V(TB))),0)}
G_G4 H 0 VALUE {
+ if(V(Ti)>25,0,-V(RP,RN)*V(RP,RN)/(R25*V(TR)*exp(((Z*TB/(T0+abs(V(H))+V(Ti))+Y*V(TB))/(T0+abs(V(H))+V(Ti))+X*V(TB))/
+ (T0+V(Ti)+abs(V(H)))+W*V(TB))))}
G_G5 RP RN VALUE { V(RP, RN)/V(AOUT) }
G_G6 H 0 VALUE { V(H)*(Gth + Gth1*(V(Ti)-25)) }
I_I1 0 AOUT DC 1Adc
R_R1 0 AOUT 1T TC=0,0
R_R2 0 H 1T TC=0,0
C_C1 0 H {Cth}
R_R99 0 Ti 1T
.IC V(H) =0
.ENDS
*$
.SUBCKT NTCS0805E3684_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X1 RN Rp Ti NTC_BASE Params:
+ w=-15.960492581963
+ x=5523.15364280883
+ y=-229163.669949468
+ z=363212.812557817
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-15.9604925819634
+ r25=680000
+ b=5523.15364280883
+ c=-229163.669949468
+ d=363212.812557817
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3683_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X2 RN Rp Ti NTC_BASE Params:
+ w=-14.864567961533
+ x=4791.5065960973
+ y=-93249.887887675
+ z=-4166790.45148179
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-14.8645679615339
+ r25=68000
+ b=4791.5065960973
+ c=-93249.887887675
+ d=-4166790.45148179
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3474_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X3 RN Rp Ti NTC_BASE Params:
+ w=-14.794712363821
+ x=4839.842
+ y=-115334
+ z=-3730535
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-14.7947123638219
+ r25=470000
+ b=4839.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3473_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X4 RN Rp Ti NTC_BASE Params:
+ w=-15.032300388762
+ x=5179.93432510098
+ y=-233607.120677708
+ z=7597557.06340118
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-15.0323003887629
+ r25=47000
+ b=5179.93432510098
+ c=-233607.120677708
+ d=7597557.06340118
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3472_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X5 RN Rp Ti NTC_BASE Params:
+ w=-12.407107004141
+ x=3778.38608505299
+ y=33708.0168743401
+ z=-17091038.2603767
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-12.4071070041412
+ r25=4700
+ b=3778.38608505299
+ c=33708.0168743401
+ d=-17091038.2603767
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3334_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X6 RN Rp Ti NTC_BASE Params:
+ w=-14.476080802527
+ x=4744.842
+ y=-115334
+ z=-3730535
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-14.4760808025273
+ r25=330000
+ b=4744.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3333_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X7 RN Rp Ti NTC_BASE Params:
+ w=-14.610948767717
+ x=4997.48896697033
+ y=-231003.837768469
+ z=11872256.7334812
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-14.6109487677176
+ r25=33000
+ b=4997.48896697033
+ c=-231003.837768469
+ d=11872256.7334812
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3223_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X8 RN Rp Ti NTC_BASE Params:
+ w=-13.810061704584
+ x=4464.33989162779
+ y=-91067.4624952509
+ z=-3682697.02233691
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-13.8100617045846
+ r25=22000
+ b=4464.33989162779
+ c=-91067.4624952509
+ d=-3682697.02233691
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3222_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X9 RN Rp Ti NTC_BASE Params:
+ w=-12.022147939918
+ x=3397.22810533551
+ y=116133.116092231
+ z=-17986435.276086
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-12.0221479399188
+ r25=2200
+ b=3397.22810533551
+ c=116133.116092231
+ d=-17986435.276086
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3153_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X10 RN Rp Ti NTC_BASE Params:
+ w=-13.283039163800
+ x=4167.09302924605
+ y=-23689.4127954143
+ z=-11316152.4821544
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-13.2830391638009
+ r25=15000
+ b=4167.09302924605
+ c=-23689.4127954143
+ d=-11316152.4821544
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3104_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X11 RN Rp Ti NTC_BASE Params:
+ w=-15.258198494082
+ x=5147.89965225205
+ y=-199635.115218401
+ z=6303582.47627097
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-15.2581984940823
+ r25=100000
+ b=5147.89965225205
+ c=-199635.115218401
+ d=6303582.47627097
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3104_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X12 RN Rp Ti NTC_BASE Params:
+ w=-13.633890559134
+ x=4624.07407976041
+ y=-162624.034923012
+ z=-1216588.60209115
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-13.6338905591344
+ r25=100000
+ b=4624.07407976041
+ c=-162624.034923012
+ d=-1216588.60209115
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3103_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X13 RN Rp Ti NTC_BASE Params:
+ w=-13.40885683108
+ x=4547.96149408261
+ y=-176965.917057285
+ z=3861153.74690121
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.08216
+ a=-13.408856831082
+ r25=10000
+ b=4547.96149408261
+ c=-176965.917057285
+ d=3861153.74690121
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3103_LT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X14 RN Rp Ti NTC_BASE Params:
+ w=-15.407851685736
+ x=6432.86844226693
+ y=-706230.001955726
+ z=47085918.8340211
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-15.4078516857364
+ r25=10000
+ b=6432.86844226693
+ c=-706230.001955726
+ d=47085918.8340211
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0805E3103_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X15 RN Rp Ti NTC_BASE Params:
+ w=-12.760931023421
+ x=3271.30574915945
+ y=291826.403510391
+ z=-39595327.6468017
+ gth=0.0048 gth1 = 0.0000267
+ cth=0.03216
+ a=-12.7609310234213
+ r25=10000
+ b=3271.30574915945
+ c=291826.403510391
+ d=-39595327.6468017
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3683_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X16 RN Rp Ti NTC_BASE Params:
+ w=-15.631687995314
+ x=5696.9706158521
+ y=-389523.672461065
+ z=24008865.2720328
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-15.6316879953145
+ r25=68000
+ b=5696.9706158521
+ c=-389523.672461065
+ d=24008865.2720328
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3473_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X17 RN Rp Ti NTC_BASE Params:
+ w=-14.853753305122
+ x=5126.73027409285
+ y=-256529.141866533
+ z=14429112.0366482
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-14.8537533051224
+ r25=47000
+ b=5126.73027409285
+ c=-256529.141866533
+ d=14429112.0366482
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3472_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X18 RN Rp Ti NTC_BASE Params:
+ w=-12.466755245940
+ x=3337.52734699875
+ y=200392.420077018
+ z=-26017659.4249521
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-12.4667552459405
+ r25=4700
+ b=3337.52734699875
+ c=200392.420077018
+ d=-26017659.4249521
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3333_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X19 RN Rp Ti NTC_BASE Params:
+ w=-14.518924355323
+ x=5042.19238100273
+ y=-266491.400082211
+ z=16040058.1503681
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-14.5189243553236
+ r25=33000
+ b=5042.19238100273
+ c=-266491.400082211
+ d=16040058.1503681
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3272_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X20 RN Rp Ti NTC_BASE Params:
+ w=-12.022147939918
+ x=3397.22810533551
+ y=116133.116092231
+ z=-17986435.276086
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-12.0221479399188
+ r25=2700
+ b=3397.22810533551
+ c=116133.116092231
+ d=-17986435.276086
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3223_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X21 RN Rp Ti NTC_BASE Params:
+ w=-13.436446712828
+ x=4278.16605968043
+ y=-59797.420122998
+ z=-6358363.60489759
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-13.4364467128288
+ r25=22000
+ b=4278.16605968043
+ c=-59797.420122998
+ d=-6358363.60489759
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3222_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X22 RN Rp Ti NTC_BASE Params:
+ w=-11.753826625144
+ x=3317.22810533551
+ y=116133.116092231
+ z=-17986435.276086
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-11.7538266251443
+ r25=2200
+ b=3317.22810533551
+ c=116133.116092231
+ d=-17986435.276086
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3202_LT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X23 RN Rp Ti NTC_BASE Params:
+ w=-11.418451094150
+ x=3217.25238428639
+ y=116125.772409905
+ z=-17985711.922342
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-11.4184510941507
+ r25=2000
+ b=3217.25238428639
+ c=116125.772409905
+ d=-17985711.922342
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3153_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X24 RN Rp Ti NTC_BASE Params:
+ w=-13.692171596331
+ x=4756.05357621921
+ y=-234664.440293618
+ z=10074804.8964881
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-13.6921715963311
+ r25=15000
+ b=4756.05357621921
+ c=-234664.440293618
+ d=10074804.8964881
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3124_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X25 RN Rp Ti NTC_BASE Params:
+ w=-13.633890559134
+ x=4624.07407976041
+ y=-162624.034923012
+ z=-1216588.60209115
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-13.6338905591344
+ r25=122000
+ b=4624.07407976041
+ c=-162624.034923012
+ d=-1216588.60209115
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3104_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X26 RN Rp Ti NTC_BASE Params:
+ w=-15.431309395743
+ x=5337.10027599483
+ y=-267728.681013195
+ z=14375045.7126114
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-15.4313093957435
+ r25=100000
+ b=5337.10027599483
+ c=-267728.681013195
+ d=14375045.7126114
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3103_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X27 RN Rp Ti NTC_BASE Params:
+ w=-13.409568891799
+ x=4481.79886463418
+ y=-150521.691593129
+ z=1877102.65189547
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-13.4095688917995
+ r25=10000
+ b=4481.79886463418
+ c=-150521.691593129
+ d=1877102.65189547
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3103_LT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X28 RN Rp Ti NTC_BASE Params:
+ w=-10.510144466257
+ x=2816.74879403825
+ y=172444.245970535
+ z=-23248305.132252
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-10.4528701153889
+ r25=10000
+ b=1363.9319167994
+ c=1013209.19138484
+ d=-146294479.644505
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0603E3103_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X29 RN Rp Ti NTC_BASE Params:
+ w=-12.34230403172
+ x=2881.2571585212
+ y=403597.734300555
+ z=-49342307.1774576
+ gth=0.0031 gth1 = 0.00002
+ cth=0.0081
+ a=-12.342304031723
+ r25=10000
+ b=2881.2571585212
+ c=403597.734300555
+ d=-49342307.1774576
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3683_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X30 RN Rp Ti NTC_BASE Params:
+ w=-15.267183107948
+ x=5530.5904679316
+ y=-366141.909196042
+ z=22167011.1133658
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-15.2671831079486
+ r25=68000
+ b=5530.5904679316
+ c=-366141.909196042
+ d=22167011.1133658
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3474_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X31 RN Rp Ti NTC_BASE Params:
+ w=-14.122042041123
+ x=4624.725
+ y=-98275
+ z=-7522357
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-14.1220420411236
+ r25=470000
+ b=4624.725
+ c=-98275
+ d=-7522357
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3473_XT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X32 RN Rp Ti NTC_BASE Params:
+ w=-12.34830154520
+ x=2375.04150212332
+ y=688294.134893528
+ z=-89066341.2521688
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-12.348301545201
+ r25=47000
+ b=2375.04150212332
+ c=688294.134893528
+ d=-89066341.2521688
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3472_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X33 RN Rp Ti NTC_BASE Params:
+ w=-11.68386745134
+ x=3044.58586381301
+ y=240138.301577552
+ z=-32576647.4955603
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.015
+ a=-11.683867451346
+ r25=4700
+ b=3044.58586381301
+ c=240138.301577552
+ d=-32576647.4955603
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3333_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X34 RN Rp Ti NTC_BASE Params:
+ w=-14.324933144520
+ x=5143.94984985209
+ y=-314375.102305495
+ z=16129553.9022413
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-14.3249331445202
+ r25=33000
+ b=5143.94984985209
+ c=-314375.102305495
+ d=16129553.9022413
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3223_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X35 RN Rp Ti NTC_BASE Params:
+ w=-13.142378763615
+ x=4210.13465565959
+ y=-50179.4939878696
+ z=-10972255.5701807
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-13.1423787636159
+ r25=22000
+ b=4210.13465565959
+ c=-50179.4939878696
+ d=-10972255.5701807
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3214_MT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X36 RN Rp Ti NTC_BASE Params:
+ w=-13.633890559134
+ x=4624.07407976041
+ y=-162624.034923012
+ z=-1216588.60209115
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-13.6338905591344
+ r25=210000
+ b=4624.07407976041
+ c=-162624.034923012
+ d=-1216588.60209115
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3153_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X37 RN Rp Ti NTC_BASE Params:
+ w=-11.92142256195
+ x=2506.80663963102
+ y=510855.08547963
+ z=-59189761.3953198
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-11.921422561955
+ r25=15000
+ b=2506.80663963102
+ c=510855.08547963
+ d=-59189761.3953198
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3104_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X38 RN Rp Ti NTC_BASE Params:
+ w=-14.543162756715
+ x=4764.8434748393
+ y=-115334.436689962
+ z=-3730492.72657145
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-14.5431627567158
+ r25=100000
+ b=4764.8434748393
+ c=-115334.436689962
+ d=-3730492.72657145
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3103_LT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X39 RN Rp Ti NTC_BASE Params:
+ w=-12.071363419787
+ x=3503.9022352597
+ y=109390.795353269
+ z=-24154454.7403073
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-12.0713634197875
+ r25=10000
+ b=3503.9022352597
+ c=109390.795353269
+ d=-24154454.7403073
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCS0402E3103_HT RN Rp Ti PARAMS: TOLR=0 TOLB=0
X40 RN Rp Ti NTC_BASE Params:
+ w=-11.816831376457
+ x=2488.92228440514
+ y=495163.925955402
+ z=-55693680.8539762
+ gth=0.0023 gth1 = 0.0000133
+ cth=0.0042
+ a=-11.8168313764576
+ r25=10000
+ b=2488.92228440514
+ c=495163.925955402
+ d=-55693680.8539762
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3303_HB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X41 RN Rp Ti NTC_BASE Params:
+ w=-14.5513561
+ x=4752.725
+ y=-98275
+ z=-7522357
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-14.55135614
+ r25=30000
+ b=4752.725
+ c=-98275
+ d=-7522357
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3212_MB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X42 RN Rp Ti NTC_BASE Params:
+ w=-12.002581720610
+ x=3670.667
+ y=-7617.13
+ z=-5914730
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-21.0133817206104
+ r25=2100
+ b=11886.95
+ c=-2504699
+ d=247033800
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3123_MB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X43 RN Rp Ti NTC_BASE Params:
+ w=-13.8973229
+ x=4557.725
+ y=-98275
+ z=-7522357
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-13.89732294
+ r25=12000
+ b=4557.725
+ c=-98275
+ d=-7522357
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3104_XB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X44 RN Rp Ti NTC_BASE Params:
+ w=-16.0349060
+ x=5459.339
+ y=-191141
+ z=-3328322
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-16.03490603
+ r25=100000
+ b=5459.339
+ c=-191141
+ d=-3328322
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3103_LB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X45 RN Rp Ti NTC_BASE Params:
+ w=-12.8922832
+ x=4245.148
+ y=-87493
+ z=-9588114
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-12.89228328
+ r25=10000
+ b=4245.148
+ c=-87493
+ d=-9588114
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE213E3103_HB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X46 RN Rp Ti NTC_BASE Params:
+ w=-14.6571976
+ x=4798.842
+ y=-115334
+ z=-3730535
+ gth=0.0022 gth1 = 0.0000033
+ cth=0.018
+ a=-14.65719769
+ r25=10000
+ b=4798.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3683_B0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X47 RN Rp Ti NTC_BASE Params:
+ w=-16.0349060
+ x=5459.339
+ y=-191141
+ z=-3328322
+ gth=0.0025 gth1 = 0.0000033
+ cth=0.028
+ a=-16.03490603
+ r25=68000
+ b=5459.339
+ c=-191141
+ d=-3328322
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3502SB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X48 RN Rp Ti NTC_BASE Params:
+ w=-14.6571976
+ x=4798.842
+ y=-115334
+ z=-3730535
+ gth=0.0032 gth1 = 0.0000167
+ cth=0.032
+ a=-14.65719769
+ r25=5000
+ b=4798.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3502_B0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X49 RN Rp Ti NTC_BASE Params:
+ w=-14.633719574957
+ x=4791.842
+ y=-115334
+ z=-3730535
+ gth=0.0025 gth1 = 0.0000167
+ cth=0.028
+ a=-14.6337195749572
+ r25=5000
+ b=4791.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3474_B0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X50 RN Rp Ti NTC_BASE Params:
+ w=-17.643882
+ x=6022.726
+ y=-203157
+ z=-7183526
+ gth=0.0025 gth1 = 0.0000167
+ cth=0.028
+ a=-17.6438824
+ r25=470000
+ b=6022.726
+ c=-203157
+ d=-7183526
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3473_B0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X51 RN Rp Ti NTC_BASE Params:
+ w=-15.5321559
+ x=5229.973
+ y=-160451
+ z=-5414091
+ gth=0.0025 gth1 = 0.0000167
+ cth=0.028
+ a=-15.53215593
+ r25=47000
+ b=5229.973
+ c=-160451
+ d=-5414091
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3472_B0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X52 RN Rp Ti NTC_BASE Params:
+ w=-14.633719574957
+ x=4791.842
+ y=-115334
+ z=-3730535
+ gth=0.0025 gth1 = 0.0000167
+ cth=0.028
+ a=-14.6337195749572
+ r25=4700
+ b=4791.842
+ c=-115334
+ d=-3730535
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3303SB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X53 RN Rp Ti NTC_BASE Params:
+ w=-14.5513561
+ x=4752.725
+ y=-98275
+ z=-7522357
+ gth=0.0032 gth1 = 0.0000167
+ cth=0.032
+ a=-14.55135614
+ r25=30000
+ b=4752.725
+ c=-98275
+ d=-7522357
+ T0=273.15
+ TR={1+TOLR/100}
+ TB={1+TOLB/100}
.ENDS
*$
.SUBCKT NTCLE203E3302SB0 RN Rp Ti PARAMS: TOLR=0 TOLB=0
X54 RN Rp Ti NTC_BASE Params:
+ w=-14.6571976
+ x=4798.842
+ y=-115334
+ z=-3730535
+ gth=0.0032 gth1 = 0.0000167
+ cth=0.032
...
This file has been truncated, please download it to see its full contents.
Comments
Please log in or sign up to comment.
