New product testing of APM32F411

APM32F411 is an industrial-grade microprocessor based on 32-bit Arm® Cortex®-M4 core, with its high-speed computing ability, a variety of work Mode, supported by high-precision peripheral equipment, integrated SPI, UART, bxCAN, I2C, I2S, USB, SDIO, QSPI, FSMC and other communication interfaces, built-in CRC32 Computing unit, can provide users with high integration, high reliability of SOC solutions, applied to power, instrumentation, industrial control, home appliances, Internet of things, new energy

Source, intelligent building and many other fields, has high applicability and cost performance.

Application Areas:

 Power: power control, power integrated protector, power meter, etc.

 Instrumentation: gas detector, portable instruments, adjustable digital power supply, etc.

 Industrial control: PLC, motor control, terminal industrial control equipment, etc.

 Household appliances: white goods, intelligent voice assistant, sweeping robot, etc.;

 Internet of things: gateway devices, data set total devices, etc.;

 New energy: photovoltaic inverter, BMS, charging pile, base station power supply, etc.

 Intelligent building: fire alarm, environmental quality testing, intelligent air switch;

 Other: 3D printing, micro printer, robot, model plane, stage lighting, etc.

Development support

 Hardware development tools

Epipolar Semiconductor can provide functional learning boards and development boards for basic solutions, which can be used with Geehy-LINK or J_Link

APM32F411 function development, performance debugging and application development scenarios of related schemes.

 Software development environment

Software development can be based on Eclipse IDE, MDK or IAR, etc.

Testing process：

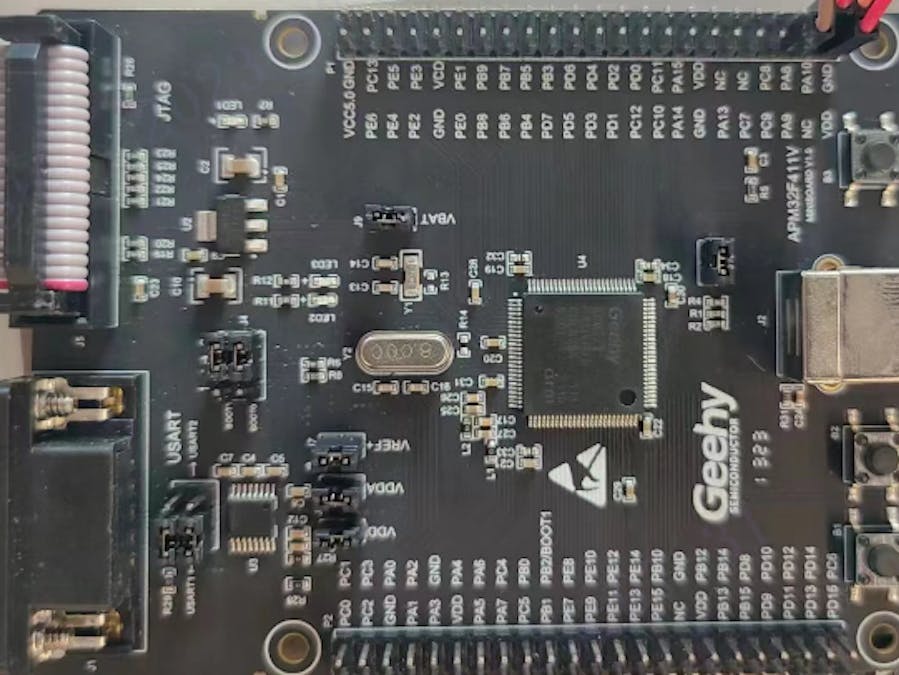

1、APM32F411 development boards.

2、Download the APM32F4xx SDK from the website of Geehy.

3、Open the project using Keil IAR Eclipse.
