Aquaponic System Monitor

Monitors temperature, PH, and Cl. levels and notifies you if anything is out of range.

IntermediateWork in progress20 hours3,786

Things used in this project

Hardware components

Phidgets 3555_0 - ASR2803-3-1M-BNC ORP Lab Electrode

Phidgets 3550_0 - ASP200-2-1M-BNC pH Lab Electrode

Phydgets 1130_0 - pH/ORP Adapter

Software apps and online services

Intel XDK

Twilio

Story

This project started out as a swimming pool monitoring system that was re-purposed to monitor an aquaponic system. It measures the water temperature, PH, and Chlorine levels in the water. The output is displayed on a web page. If any of the readings exceed set limits it sends a text to notify you that the situation needs looking into.

Hardware:

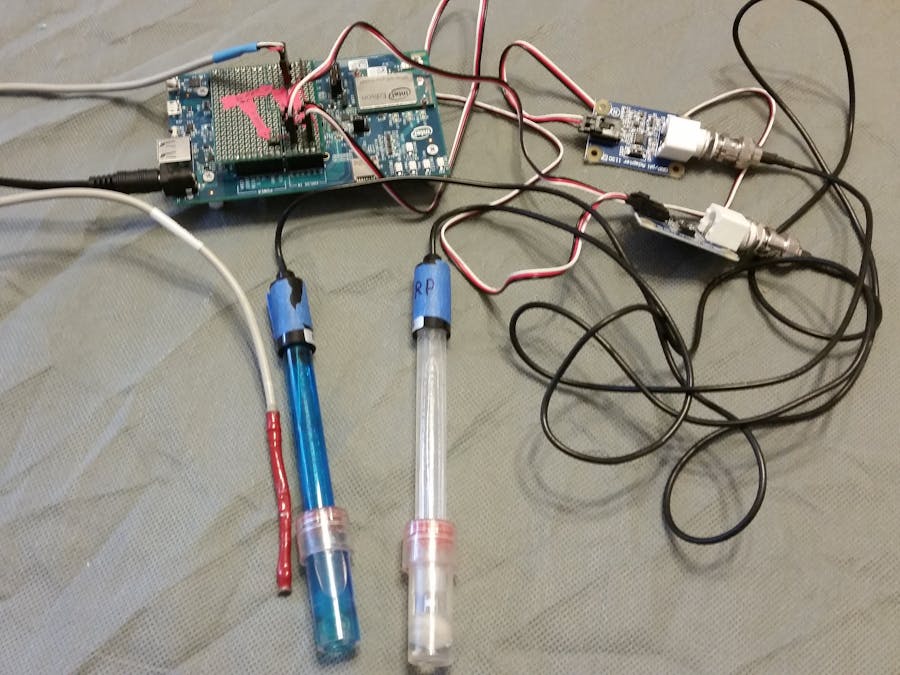

The system runs on the Intel Edison Arduino board with a custom shield that simply makes connects to the sensors. The hardware has the capability of being powered by a 12V solar panel and backup battery that was used in the original swimming pool application but that isn’t used in the aquaponic application.

The PH and ORP (Oxygen Reduction Potential) sensors are from Phidgets.com. For a temperature sensor we simply used a thermistor.

Software:

The application is written in Node JS. It uses Twillio to send text notification messages. To enable that feature you need to open a Twillio account (www.twillio.com) and update the file config_generic.js with your account information and rename it to config.js.
