Light Intensity Control Using Bolt

The light intensity can be changed and controlled according to the needs. By using bolt Wi-Fi module we can control the intensity of light.

BeginnerFull instructions provided3 hours170

Things used in this project

Hardware components

Bolt IoT Bolt WiFi Module

LED (generic)

Jumper wires (generic)

Breadboard (generic)

USB-A to Mini-USB Cable

Software apps and online services

Bolt IoT Bolt Cloud

Story

INTRODUCTION

This project basically aims to show, how to control the intensity on light source using Bolt Wi-Fi module.

So we will go step by step, how to develop this DIY project.

Steps to build the project

Step:-1

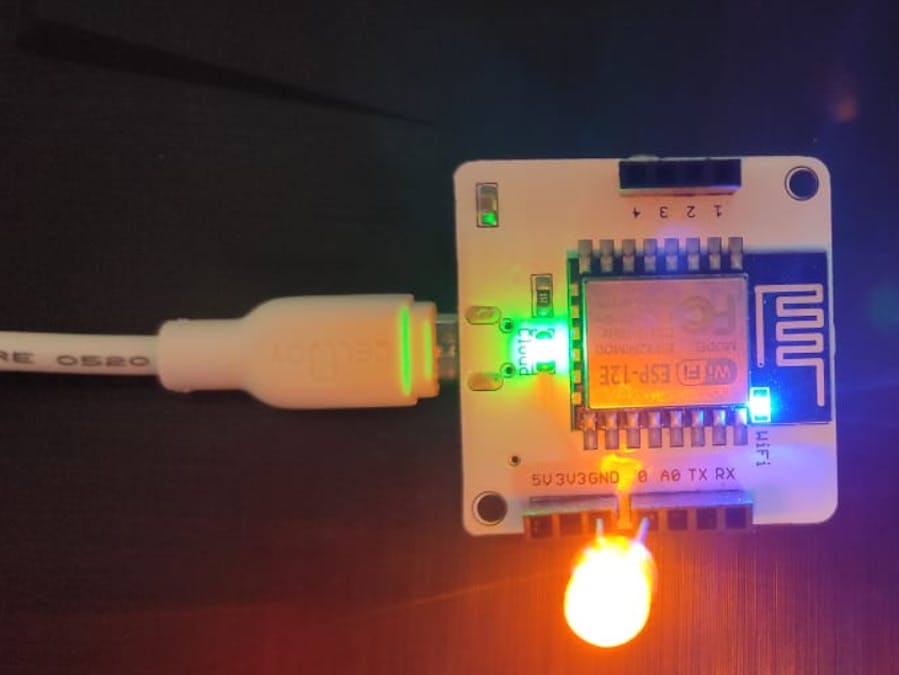

· Connect the negative end of Led to ground pin using jumper wire and bread board

· Connect the positive end of Led to 0 GPIO pin using jumper wire and bread board.

Step:-2

Coding part of the program

Go to the Dashboard of the BOLT IOT and the click on product. and then go to add product and the create a product name you like to connect to your Bolt to input devices and you have to collect the data to GPIO then save it.

configure your product.

Step:-3

Connect the Bolt Iot device using USB and power it on.

After execution of the program it will open an HTML page consists of pwm value meter.

If we increase the pwm value the light intensity will be increased.

If we decrease the pwm value the light intensity will be decreased.

To link project with BOLT Cloud

Visit https://www.boltiot.com/ and login in to get access to the BOLT Cloud.

· Select the Products tab, and click on ADD PRODUCT.

· Enter Product Name and add an Icon.

· Click on Configure this product symbol, and go to the Code tab.

· Give a name and select file type as html and paste the following code in the code window.

· Click on Save your configuration icon, and return to the product screen.

· Click on Link device to this product, and select your BOLT WIFI module.

· Click on Deploy configuration icon to successfully deploy the application.

· Now, either use your smartphone app for BOLT or click on View this device on your computer to see the interface.

· Control the light intensity using the knob on the interface.

Watch the video below to get step by step instructions on how to do the project.

can refer the video.

Schematics

Code

intensity control code

<html>

    <head>

        <title>Bolt IoT Platform</title>

        <script type="text/javascript" src="https://cloud.boltiot.com/static/js/boltCommands.js"></script>

        <script>
        setKey('{{ApiKey}}','{{Name}}');

        var last_pwm_value=-1;
        function updateBuzzer(){
            var pwm_value=document.getElementById('pwm_value').value;
            if(last_pwm_value!=pwm_value){
                analogWrite(0,pwm_value);
                document.getElementById('pwm_value_display').innerHTML=pwm_value;
            }
            last_pwm_value=pwm_value;
        }
        setInterval(updateBuzzer,1000);
        </script>
    </head>
    <body>
        pwm value:
        <input type='range' id='pwm_value' min="0" max="255" value="0">
        <div id='pwm_value_display'>0</div>
    </body>

</html>
