Smart delivery arm

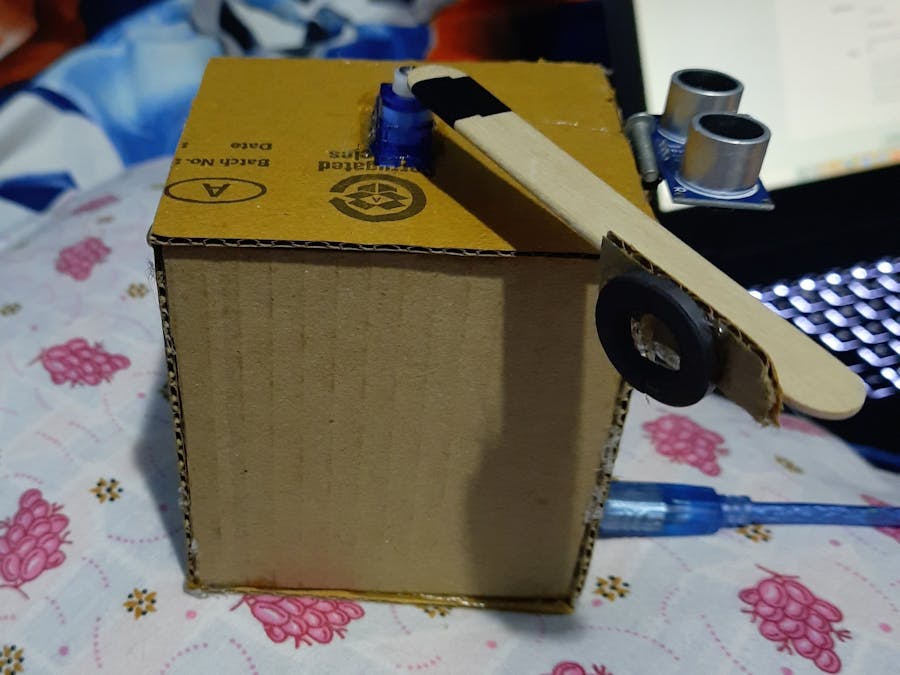

An arm that can make no-touch deliveries, extremely simple!!!!

BeginnerFull instructions provided372
Smart delivery arm

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
SG90 Micro-servo motor
SG90 Micro-servo motor
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
USB-A to B Cable
USB-A to B Cable
×1
Breadboard (generic)
Breadboard (generic)
×1
LED (generic)
LED (generic)
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
Male/Male Jumper Wires
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Hot glue gun (generic)
Hot glue gun (generic)

Story

Read more

Schematics


trigpin of ultrasonic on pin 5
echo of ultrasonic on pin 6
servo on pin 9
led on pin 11
respective gnd and 5v connections
i am sorry, i was not able to use fritzing
please see schematics in the code to confirm

Code

servo arm

C/C++
just paste the code in arduino ide
// generated by mBlock5 for <your product>
// codes make you happy

#include <Servo.h>
#include <Arduino.h>
#include <Wire.h>
#include <SoftwareSerial.h>

Servo servo_9;
float getDistance(int trig,int echo){
    pinMode(trig,OUTPUT);
    digitalWrite(trig,LOW);
    delayMicroseconds(2);
    digitalWrite(trig,HIGH);
    delayMicroseconds(10);
    digitalWrite(trig,LOW);
    pinMode(echo, INPUT);
    return pulseIn(echo,HIGH,30000)/58.0;
}

void _delay(float seconds) {
  long endTime = millis() + seconds * 1000;
  while(millis() < endTime) _loop();
}

void setup() {
  servo_9.attach(9);
  pinMode(11,OUTPUT);
  servo_9.write(180);
  while(1) {
      if(getDistance(6,7) > 50){
          digitalWrite(11,0);
          servo_9.write(180);
          _delay(2);
          servo_9.write(0);

      }else{
          digitalWrite(11,1);

      }

      _loop();
  }

}

void _loop() {
}

void loop() {
  _loop();
}
